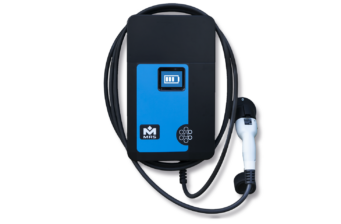

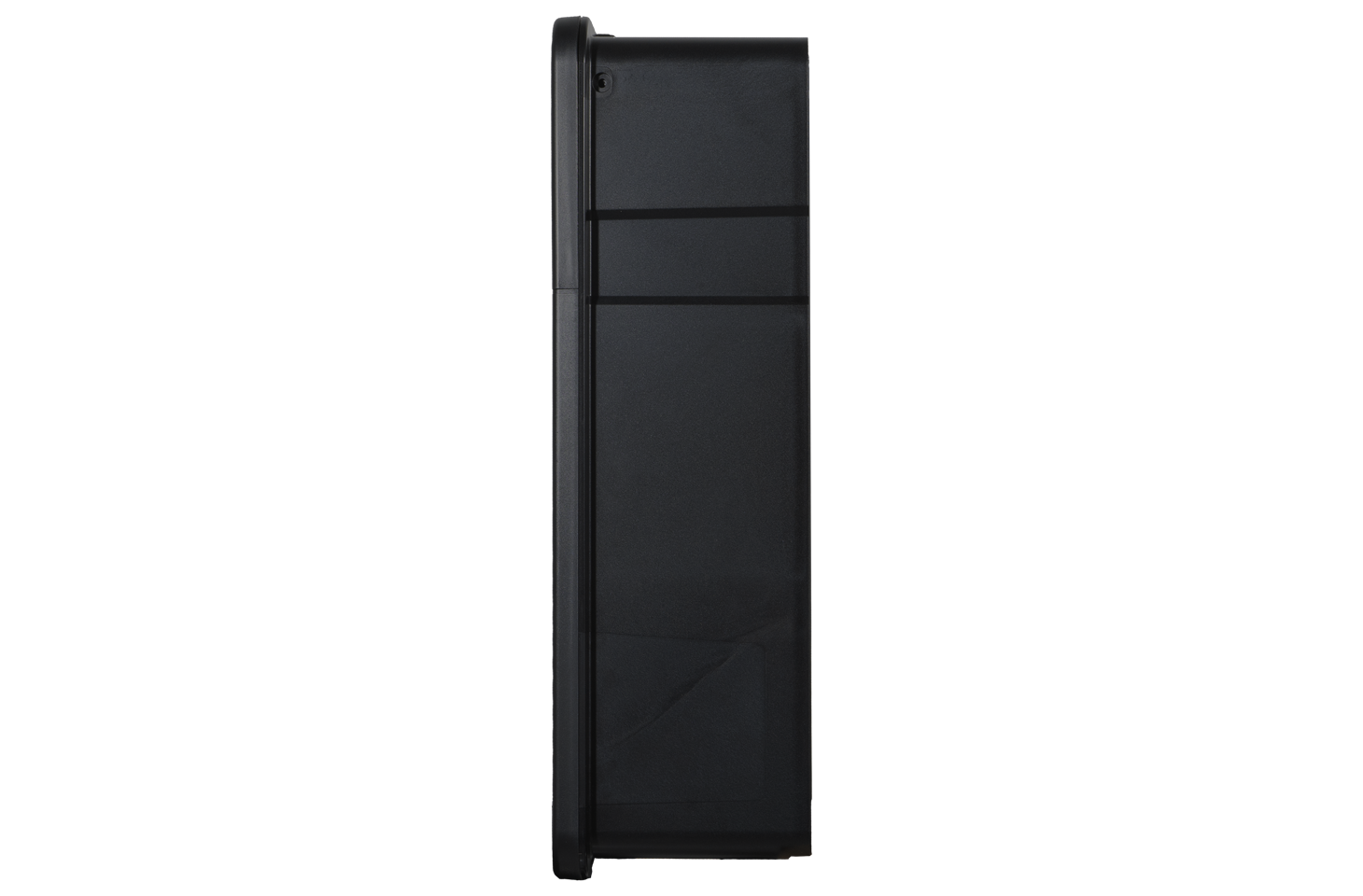

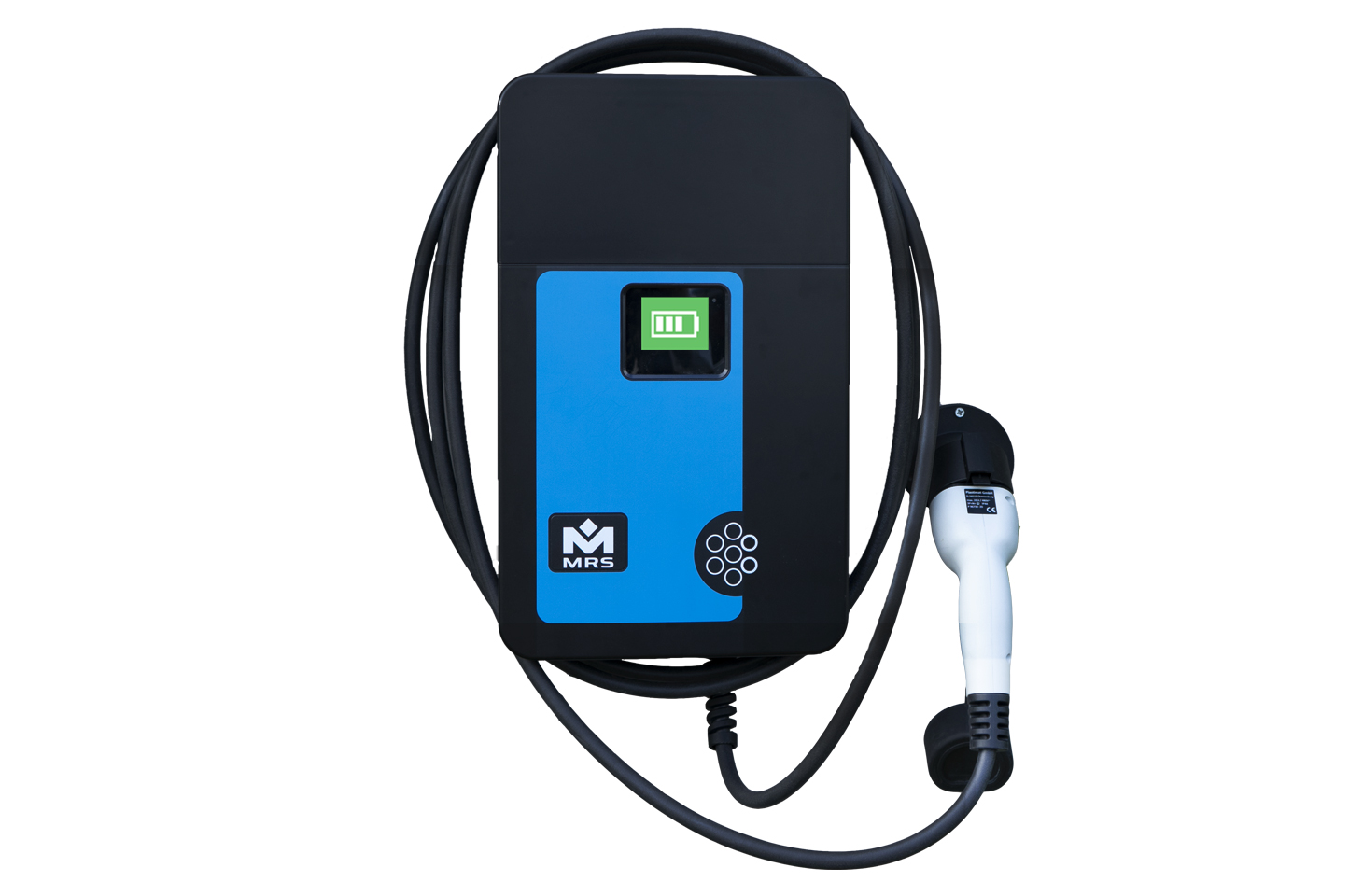

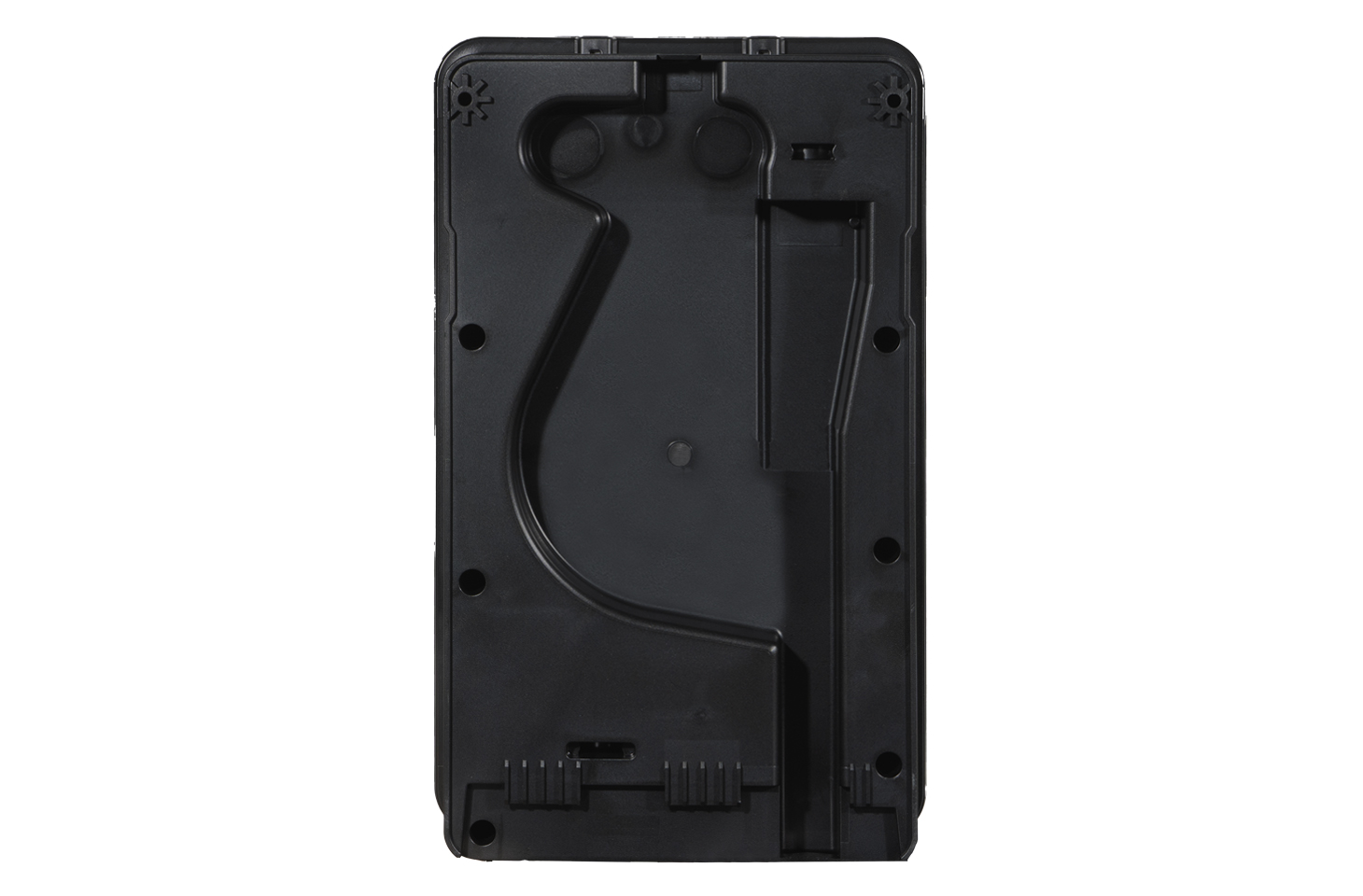

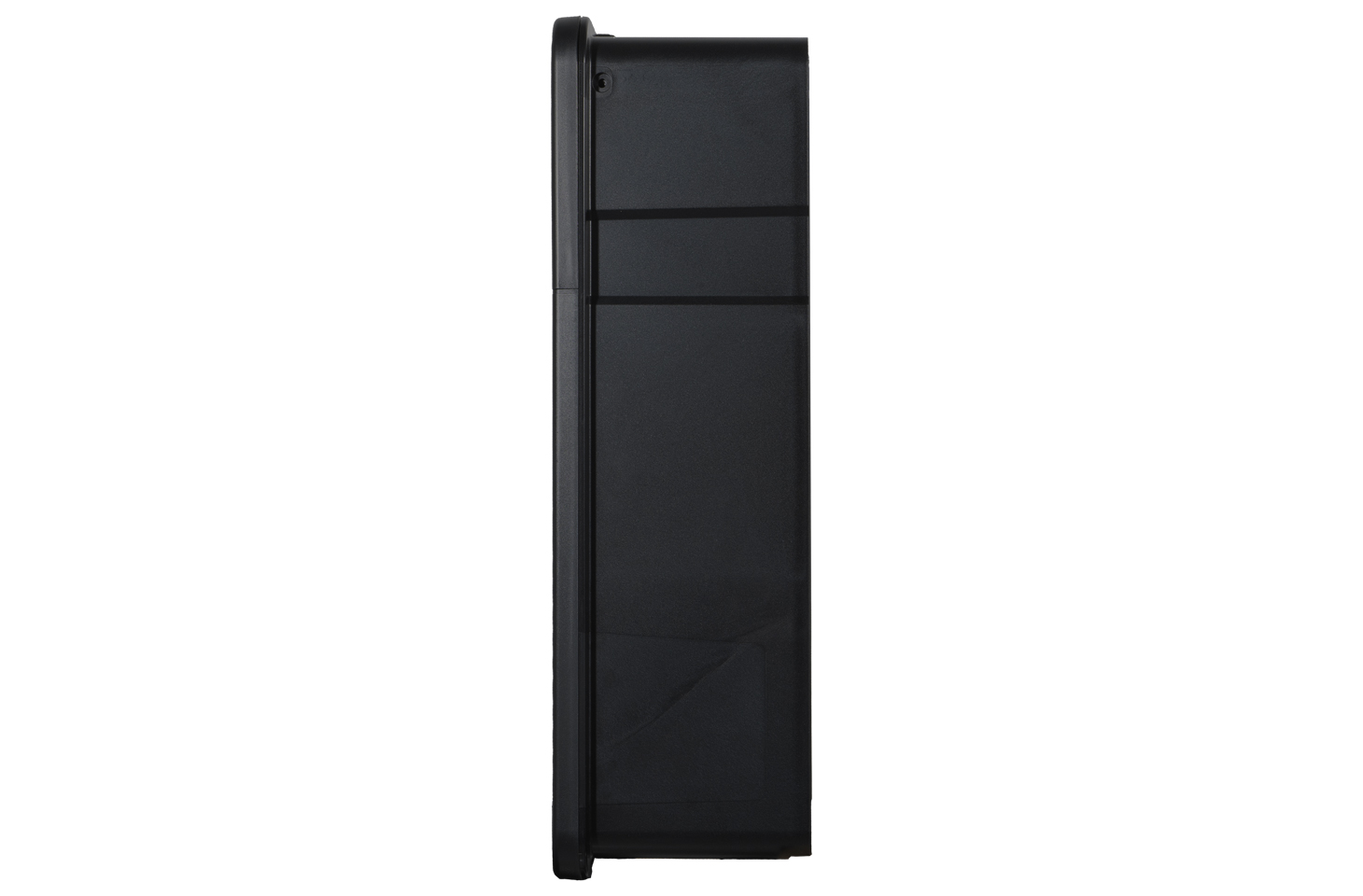

MCharger Easy

go to order options

No matter which electric car you prefer, our MCharger wallbox provides an easy charging experience. From simple installation process to user friendly interface with the color display. Choose the MCharger model that fits your needs, add our smartly designed accessories and enjoy the advantages of E-mobility to the fullest!

Charging power up to 22kW - Color display - IP55 protection - Overvoltage protection - Easy installation - Electrical connection available from the back, top, or the bottom - CE marking; RoHS, WEEE, IEC compliant - Developed and manufactured in Germany

Downloads
Technical details

Mechanical Properties

Dimensions 266 × 411 × 137 mm
Temperature range -25°C to +60°C
IP rating IP55
Housing material PC+ABS

Electrical Properties

Charging Power 11 kW / 22 kW
Input Voltage 230 V (1ph) / 400 V (3ph)
Rated Current 16 A / 32 A
Mains frequency [Hz] 50
Operating voltage 230 V (1ph) / 400 V (3ph)

Equipment

Status display 2,4″, colored
Connection type Typ 2
Acoustic error warning
DC fault detection 6 mA DC
Software update via cable
KfW-eligible 440 - private household
CAN interface(s) 1
Order options
Order no.NameType
1.801.011 Easy S 22 kW
Type 2 socket
1.801.001 Easy C 22 kW
Type 2 connection cable 5m
1.801.010 Easy S 11 kW
Type 2 socket
1.801.000 Easy C 11 kW
Type 2 connection cable 5m
