MCharger Connected
Your smart and connected EV charging solution
A versatile smart charger
with features like user authentication and load balancing
User management
Advanced technology
MCharger Connected variants
have two different connection types

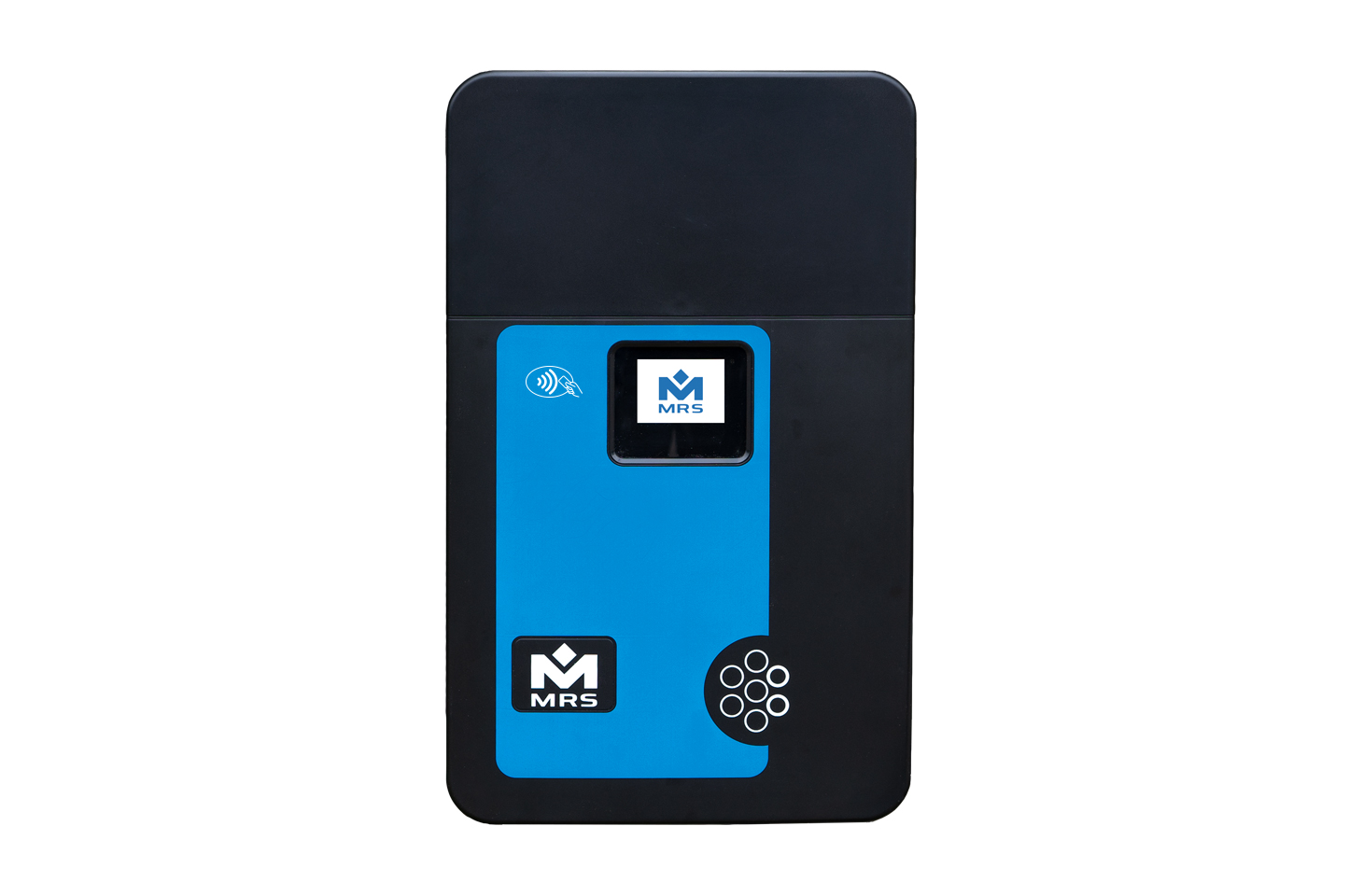

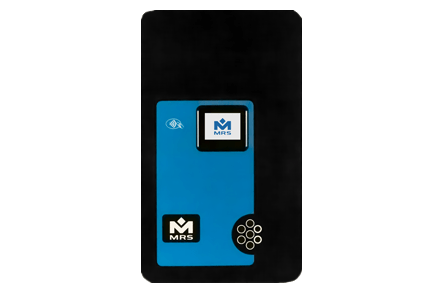

MCharger Connected S
comes with a type 2 socket

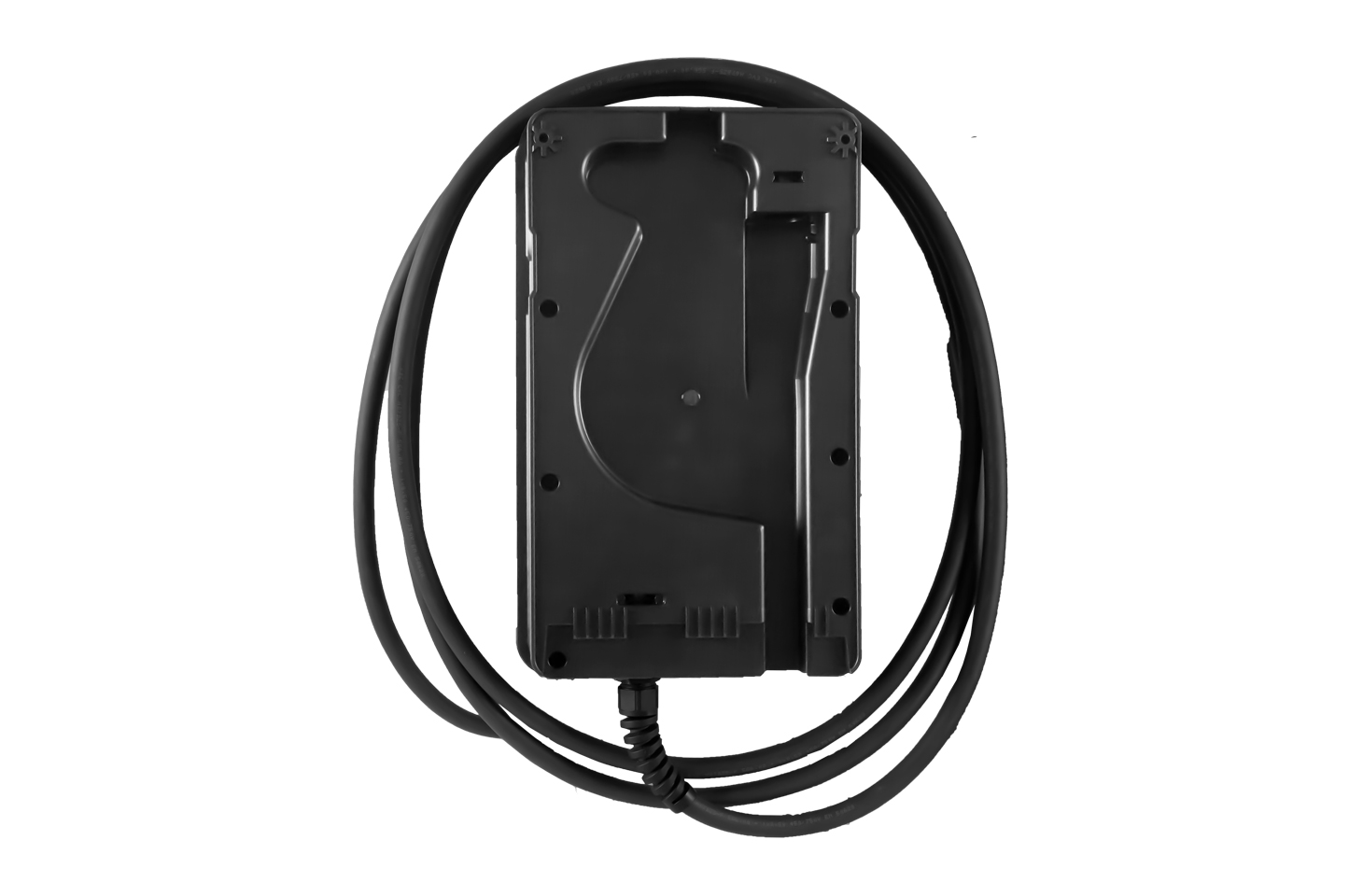

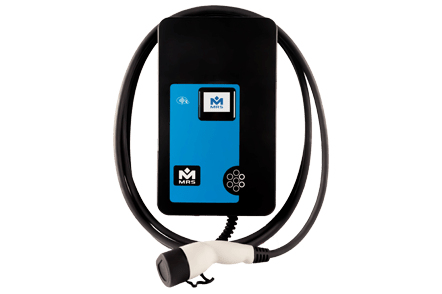

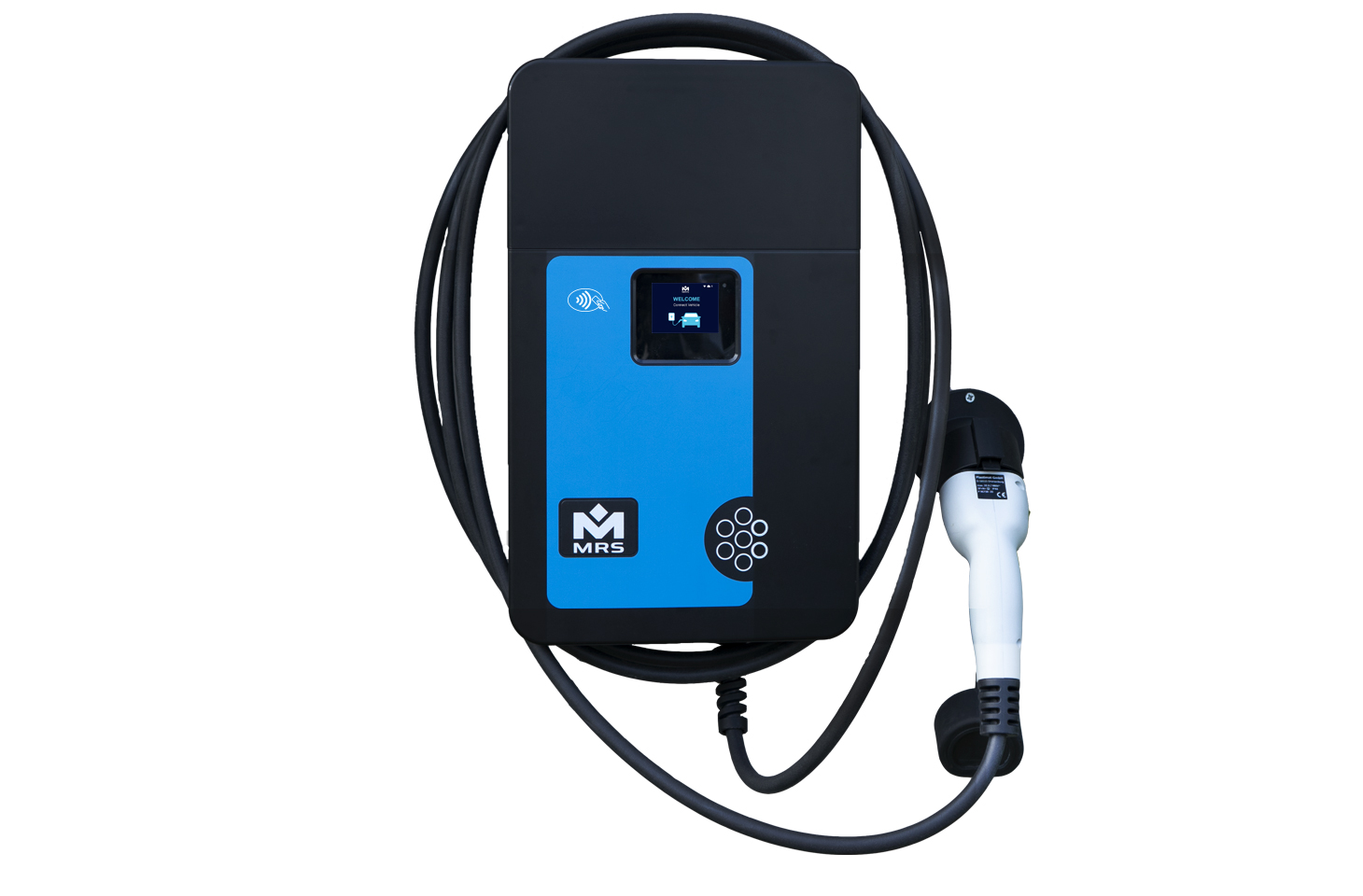

MCharger Connected C
comes with a type 2 charging cable
Visualize your charging setup
get an overview of the MCharger housing
Easy plug & play
where our product can be installed in three simple steps
Power cable
The power cable can be inserted from three different directions.

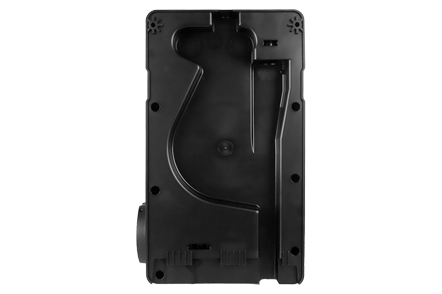

Installation rail
Attach the installation rail to the wall and put the wallbox on it. Mount the wallbox to the wall.
Connection terminals
5 connection terminals are provided for connecting the power cable.
Our product can be used for
different kinds of solutions such as
Private charging
Charges up to 3 times faster at home with multiple users. See charging history and export it.
Public charging
Offer charging free of cost with the added benefit of load-balancing, power limitation or a charging schedule.
Fleet charging
Offering free charging on company premises with user authentication.
Custom designs for you
create your own custom designs with the company name, logo or instructions
MCharger management platform
Effortlessly monitor and manage your electric vehicle's charging status, track power consumption, and schedule charging sessions with our integrated MCharger management platform.
Compare models
Connected S 22 kW
Easy C 11kW
Easy S 22 kW
Connected C 22 kW
Energy C 22kW
Connected S 22 kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
✅
User authentication
✅
LAN & wifi
✅
Max charging power
22 kW
Others
Housing dimensions
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
OCPP
✅
Easy S 22 kW
Power
Charging power
up to 22 kW
Voltage
230 V (1 ph) / 400 V (3 ph) AC
Current
up to 32 A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
-
User authentication
-
LAN & wifi
-
Max charging power
22kW
Others
Housing dimensions
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
✅
OCPP
-
Energy C 22kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
✅
User authentication
✅
LAN & wifi
✅
Max charging power
22 kW
Others
Housing dimensions
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
OCPP
✅
Easy C 11kW
Power
Charging power
up to 11 kW
Voltage
240V AC (1ph) / 400V AC (3ph)
Current
up to 16 A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
-
User authentication
-
LAN & wifi
-
Max charging power
11 kW
Others
Housing dimensions
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
✅
OCPP
-
Connected C 22 kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
up to 11kW
Management platform
-
User authentication
-
LAN & wifi
-
Max charging power
22 kW
Others
Housing dimensions
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
OCPP
✅
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Easy S 22 kW
Easy C 11kW
Connected C 22 kW
Connected S 22 kW
Energy C 22kW
Connected S 22 kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
✅
User authentication
✅
Bluetooth wifi & LAN
✅
Max charging power
22 kW
Others
Housing material
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
KfW-eligible
✅
Easy S 22 kW
Power
Charging power
up to 22 kW
Voltage
230 V (1 ph) / 400 V (3 ph) AC
Current
up to 32 A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
-
User authentication
-
Bluetooth wifi & LAN
-
Max charging power
22kW
Others
Housing material
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
✅
KfW-eligible
-
Energy C 22kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
✅
User authentication
✅
Bluetooth wifi & LAN
✅
Max charging power
22 kW
Others
Housing material
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
KfW-eligible
✅
Easy C 11kW
Power
Charging power
up to 11 kW
Voltage
240V AC (1ph) / 400V AC (3ph)
Current
up to 16 A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
Type 2
Management platform
-
User authentication
-
Bluetooth wifi & LAN
-
Max charging power
11 kW
Others
Housing material
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
✅
KfW-eligible
-
Connected C 22 kW
Power
Charging power
up to 22 kW
Voltage
230V AC (1ph) / 400V AC (3ph)
Current
up to 32A
Frequency
50 Hz
Temprature range
-25°C to +60°C
IP rating
IP55
Connectivity
Status display
2.4“ color
Connection type
up to 11kW
Management platform
-
User authentication
-
Bluetooth wifi & LAN
-
Max charging power
22 kW
Others
Housing material
266 x 411 x 137 (W x H x D in mm)
Acoustic error warning
✅
DC fault detection 6 mA
✅
Software update
-
KfW-eligible
✅
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Useful resources
Frequently asked
questions
Can the MCharger handle various types of electric vehicles within our fleet?
Yes, our MChargers are designed to support a wide range of electric vehicles that use the Type 2 connector type ensuring compatibility and efficient charging for your entire fleet.
Can we monitor and manage the charging process through your management platform?
Yes, the management platform has been designend togive full transparency and control of thecharging process and settings of the MCharger Connected.
Why choose the MCharger Connected instead of the other models?
The MCharger Connected comes with the integrated manegement platform that gives the user full control over the settings of the wallbox. It's the best option when used in a private setting and user authentication is needed.
