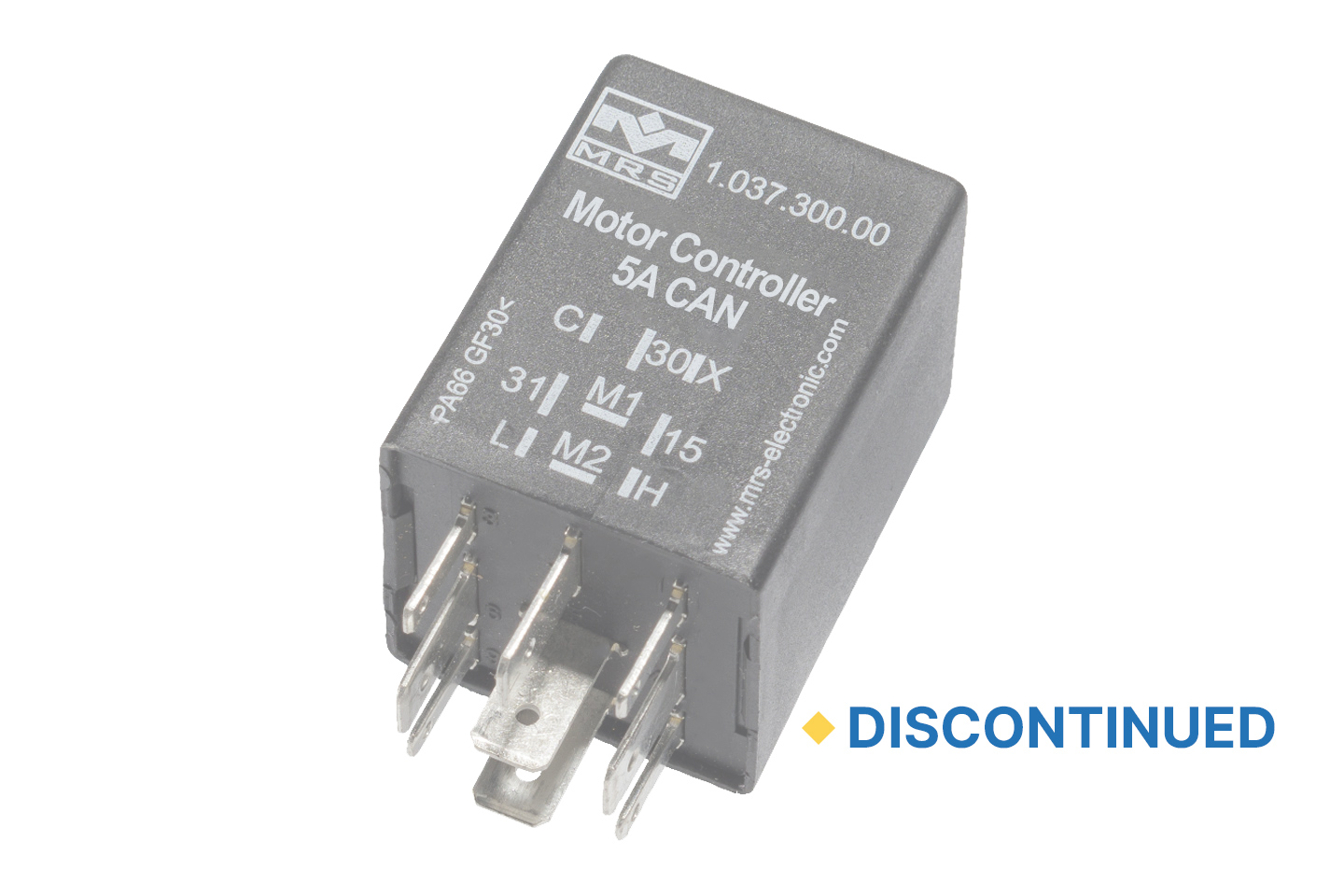

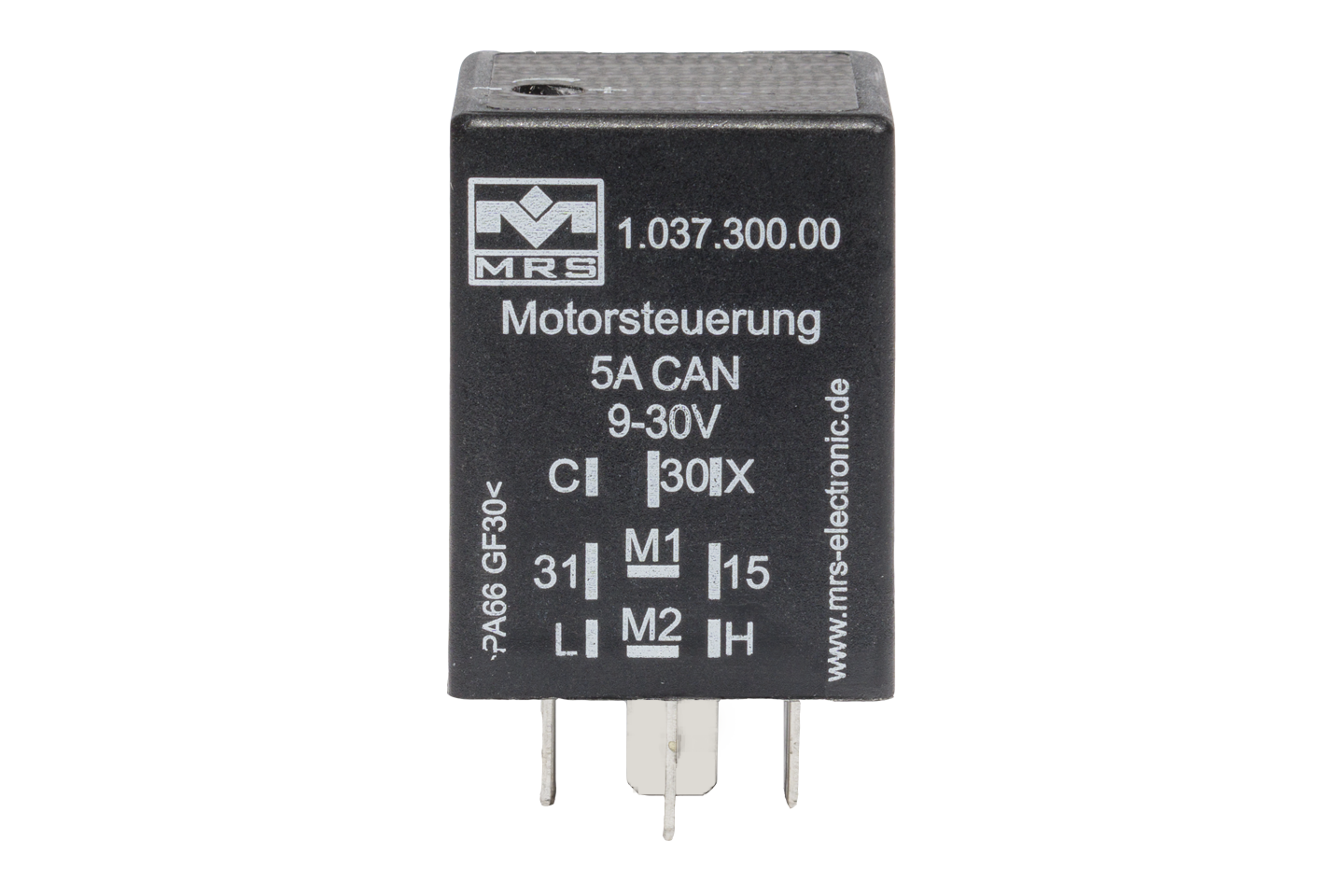

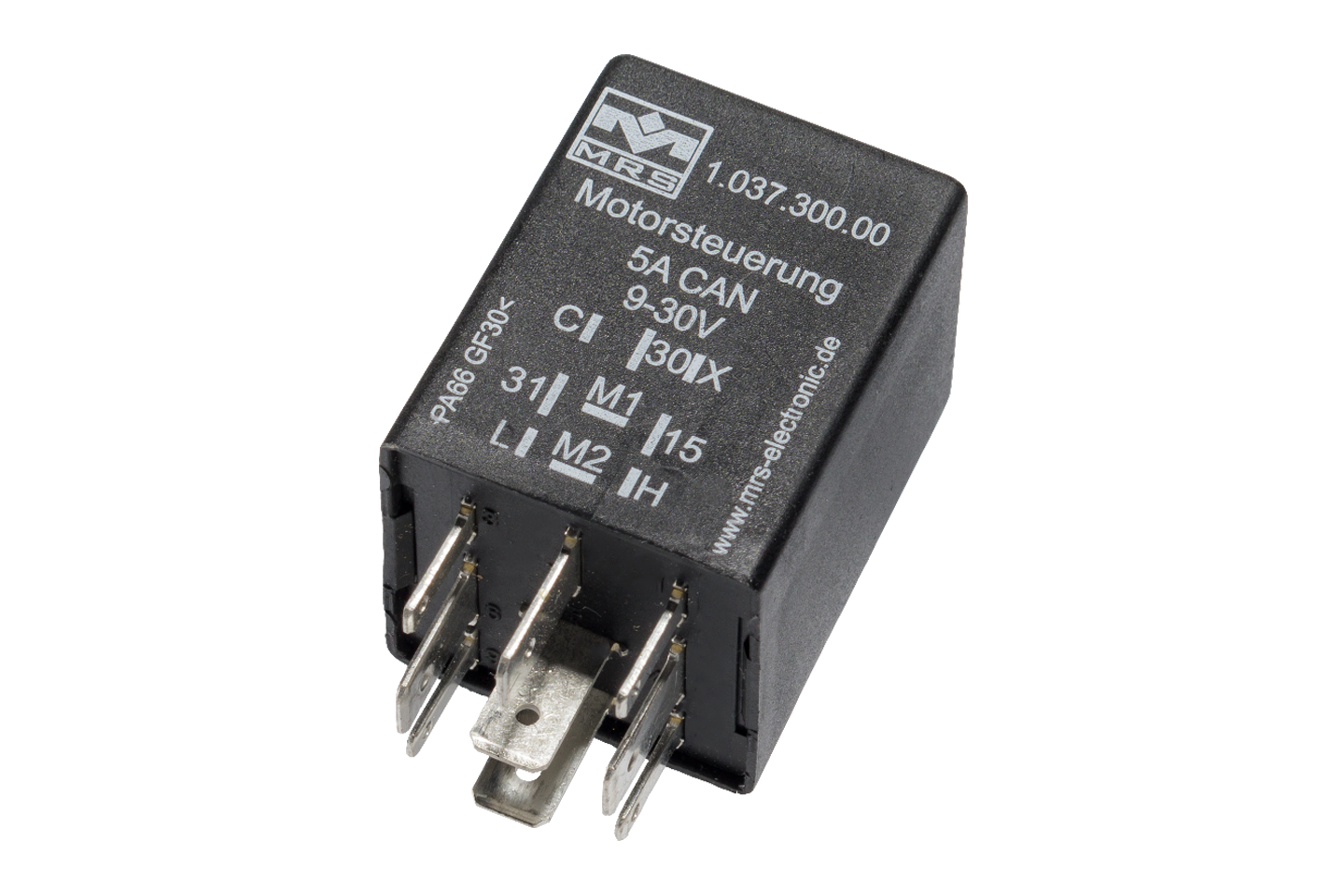

Motor Controller 5 A CAN

go to order options

The Motor Controller 5 A CAN is a microcontrollerbased module for automotive and other applications. Due to its compact size it is suitable for a wide range of applications. It has 3 analog inputs and a full bridge with motor output for up to 5A power.

=> Please notice: This product is a discontinued model, therefore only a limited number of pieces is available. Do you have any questions? Feel free to contact us.

Technical details

Inputs and Outputs

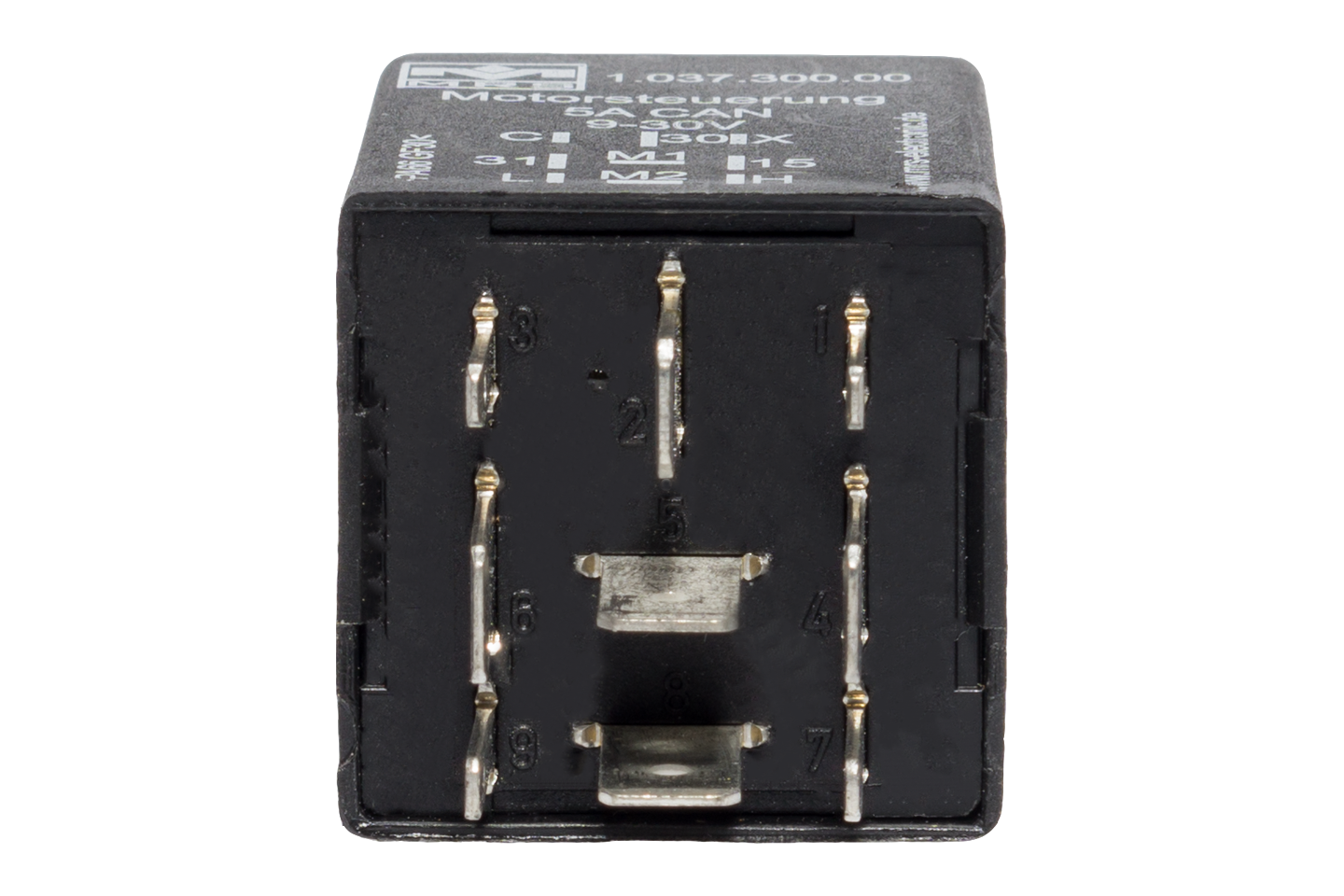

Number of pins 9
Inputs (total) 3
Inputs (analog) 3
Outputs (total) 1
Fullbridge 1

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to 85°C
Operating voltage 9-30 V
Quiescent current (12V) 0.8 mA
Quiescent current (24V) 1.5 mA
Order options
Order no.Name
1.037.300.00
[Translate to English:] Motorsteuerung 5 A CAN
1.037P.300.00
[Translate to English:] Motorsteuerunge 5 A CAN – CANopen
