Hydraulic gangways and swim platforms are an important part of modern boats and yachts. They provide convenient access to the quay, water or tender.
Their reliable operation depends on the interaction between hydraulic power and electronic control. The hydraulic system provides the force needed for movement. But the control electronics manage when and how each hydraulic component is activated.

For boat builders, OEMs and system integrators, selecting the appropriate control architecture is therefore an important part of developing a safe, reliable and user-friendly system.
In simple terms:

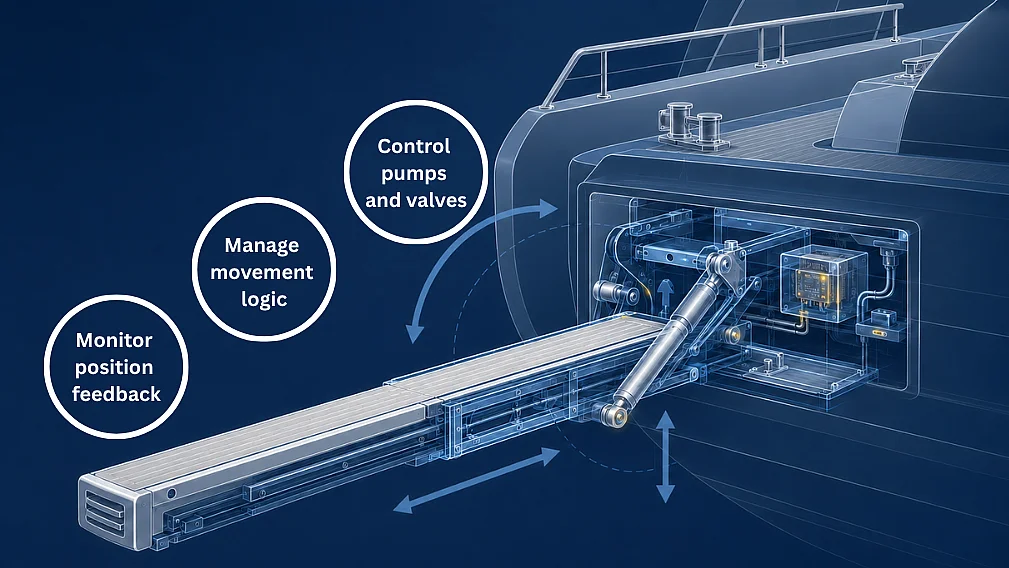

User command → controller logic (electronic controller) → hydraulic valves/pump → platform movement → sensor feedback → stop/next step

More Than Simple Extend and Retract Commands

A basic hydraulic function may appear to require only two commands: extend and retract. In practice, automated gangways and swim platforms often involve several coordinated movements.
When the user presses Extend on a switch, keypad or HMI, the signal goes to an electronic control unit. For example, to a programmable marine controller or ECU.

The controller first checks if the system can safely perform the requested movement. For example, it may check:

• Is the boat in the correct operating condition?
• Is the platform locked or unlocked?
• Is another movement already active?
• Are the required safety inputs OK?
• Is the platform already fully extended?

The HMI can display shows the status Gangway extended. The electronic controller therefore acts as the brain of the application. It receives commands and sensor feedback and manages the extend and retraction commands. The exact sequence depends on the mechanical and hydraulic design of the individual system.

Position Feedback and Controlled Movement

Reliable operation requires the controller to know whether the gangway or platform has reached the required position.
Position sensor or limit switch confirms movement/end position. Controller sends the feedback weather platform, or gangway is extended, retracted, raised, lowered, locked or released.
It can use these signals to stop movement or allow the next step in the sequence.

This feedback helps prevent the system from continuing to operate after reaching its intended position and supports repeatable movement during everyday use.

Safety Interlocks for Hydraulic Movement

Moving gangways and swim platforms can create safety risks if functions are activated in the wrong order or under unsuitable conditions.
Control electronics can support application-specific safety interlocks, such as:

• preventing platform movement while a locking mechanism is engaged;
• allowing extension only after another component reaches a defined position;
• blocking simultaneous commands in opposing directions;
• stopping movement when the expected position signal is received;
• communicating system status or faults to the operator.

The exact safety strategy must always be defined according to the mechanical design, risk assessment and applicable requirements of the complete system.

Stand-Alone or Networked Control

The controller can work as a stand-alone unit. In this setup, it is connected directly to switches, sensors and hydraulic components.
It can also be integrated into a wider CAN bus / NMEA 2000 network. In a connected system, commands and status information can be exchanged with HMIs, keypads, gateways and other electronic modules.
This gives the operator clear feedback on the system position, operating status and possible faults.

For boat builders and system integrators, this modular setup makes the control system easier to adapt to different boat models and equipment configurations.

Compact Controllers for Demanding Installations

Installation space is often limited near hydraulic equipment, while exposure to moisture, dust and vibration places additional demands on electronic components.
Compact, sealed controllers can be installed closer to the application, helping reduce long wiring runs and simplify system architecture. Configurable inputs and outputs also allow one control unit to process sensor signals, operating commands and actuator outputs within the same application.

Selecting the Appropriate Control Architecture

Every gangway and swim platform system has different requirements. Before selecting the controller, system developers should consider:


• the number and type of valves and actuators;
• required input and output signals;
• operating voltage and current requirements;
• position and safety feedback;
• the required movement sequence;
• stand-alone or CAN-based operation;
• communication with HMIs or other onboard systems;
• environmental protection requirements.

Starting with a clearly defined functional sequence makes it easier to select suitable marine control solution and develop dependable application logic.

Supporting Reliable System Integration

Hydraulic power provides the force behind gangway and swim platform movement, while control electronics coordinate how the individual components work together.
MRS Marine Electronic provides compact, programmable control units that can be adapted to different marine applications and integrated into new boat build or retrofit project.
Explore our marine hydraulic control solutions or discuss your gangway or swim platform application with our team.
