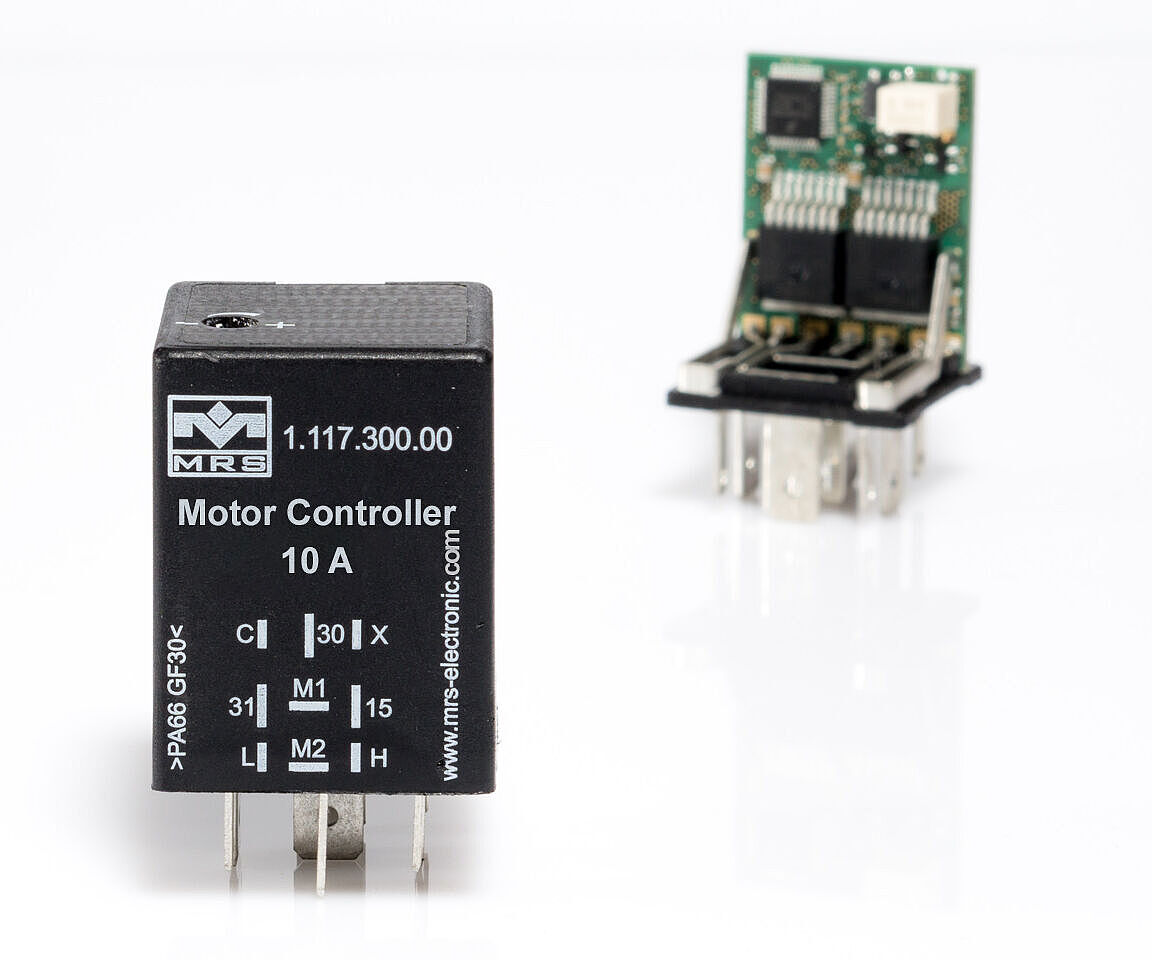

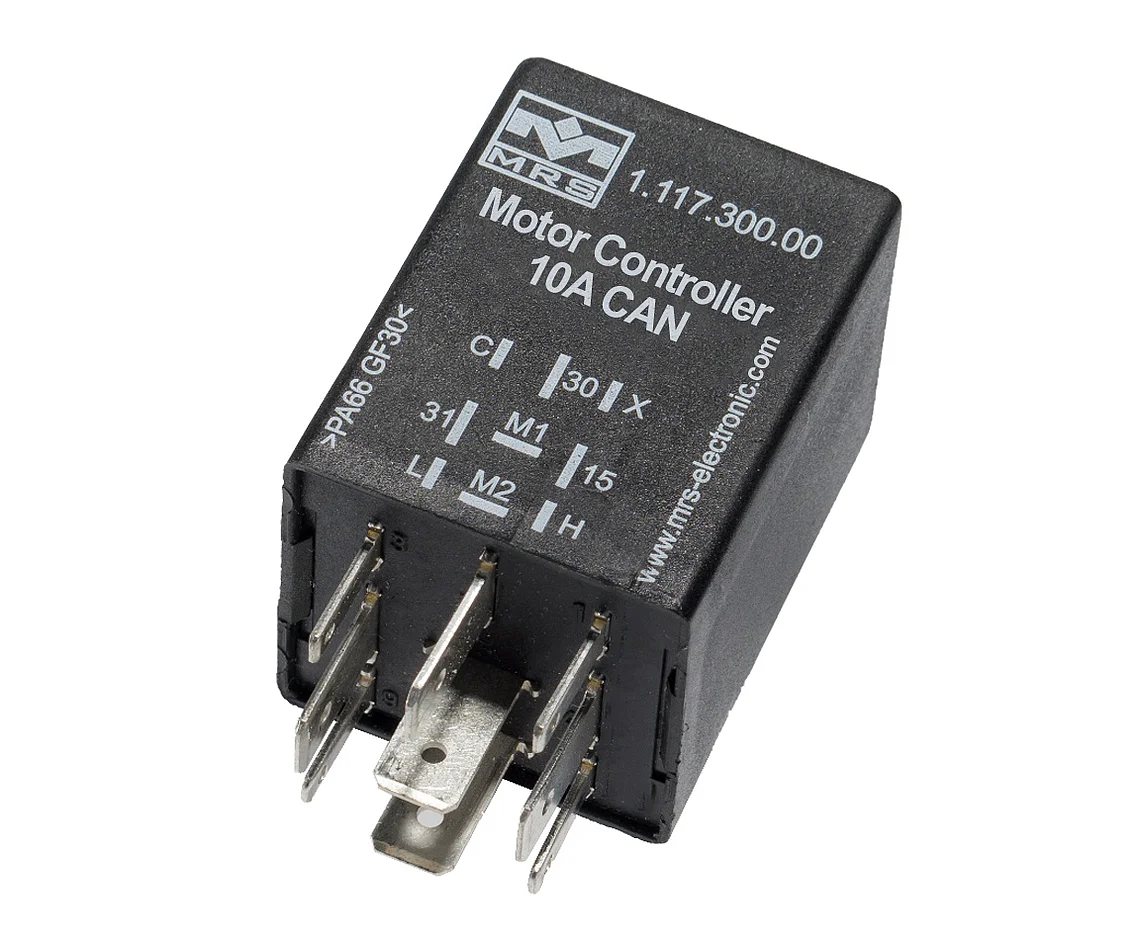

Motor Controller 10 A CAN

go to order options

The Motor Controller 10 A CAN is a microcontrollerbased module for automotive and other applications. User configuration and programming facilitate implementation of a wide range of applications and the very compact form factor supports versatile use.

Downloads
Technical details

Inputs and Outputs

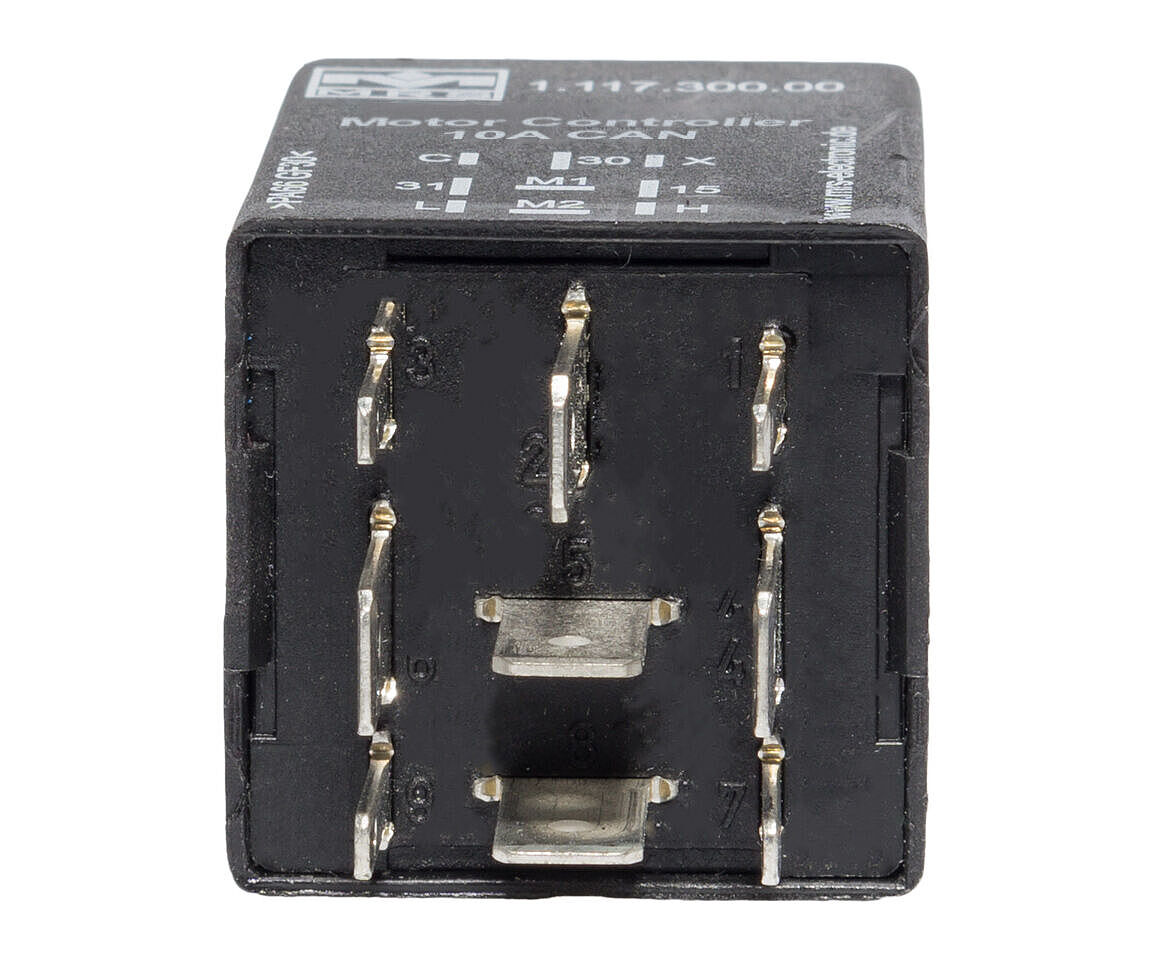

Number of pins 9
In-/Outputs (total) 3
Inputs (total) 3
Inputs (analog) 3
Outputs (total) 1
Fullbridge 1
Switching current 10 A

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Quiescent current (12V) 680 µA
Quiescent current (24V) 1250 µA
Processor architecture 8 bit

Certifications

Order options
Order no.Name
1.​117.300.​00
With potentiometer
1.117P.300.00
CANopen (CiA401)
