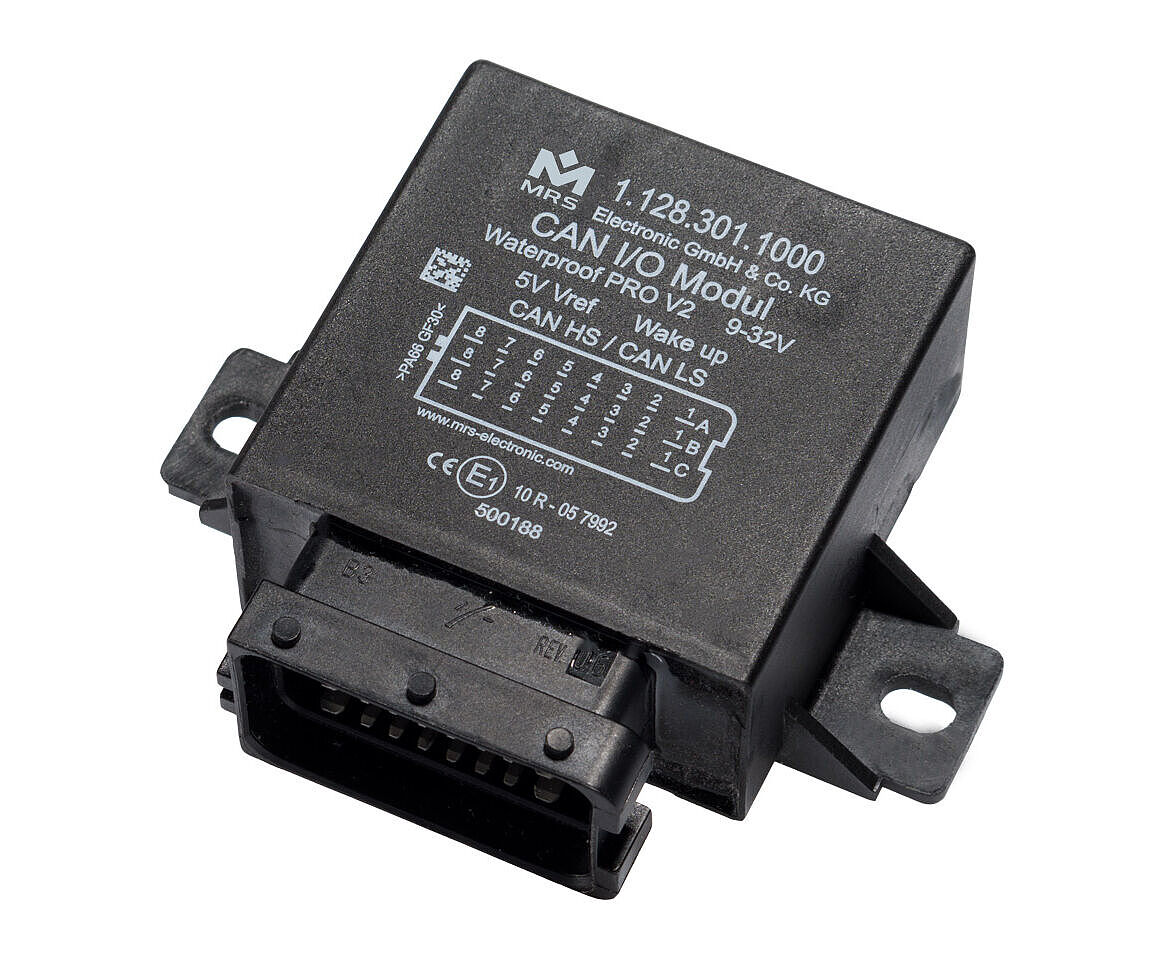

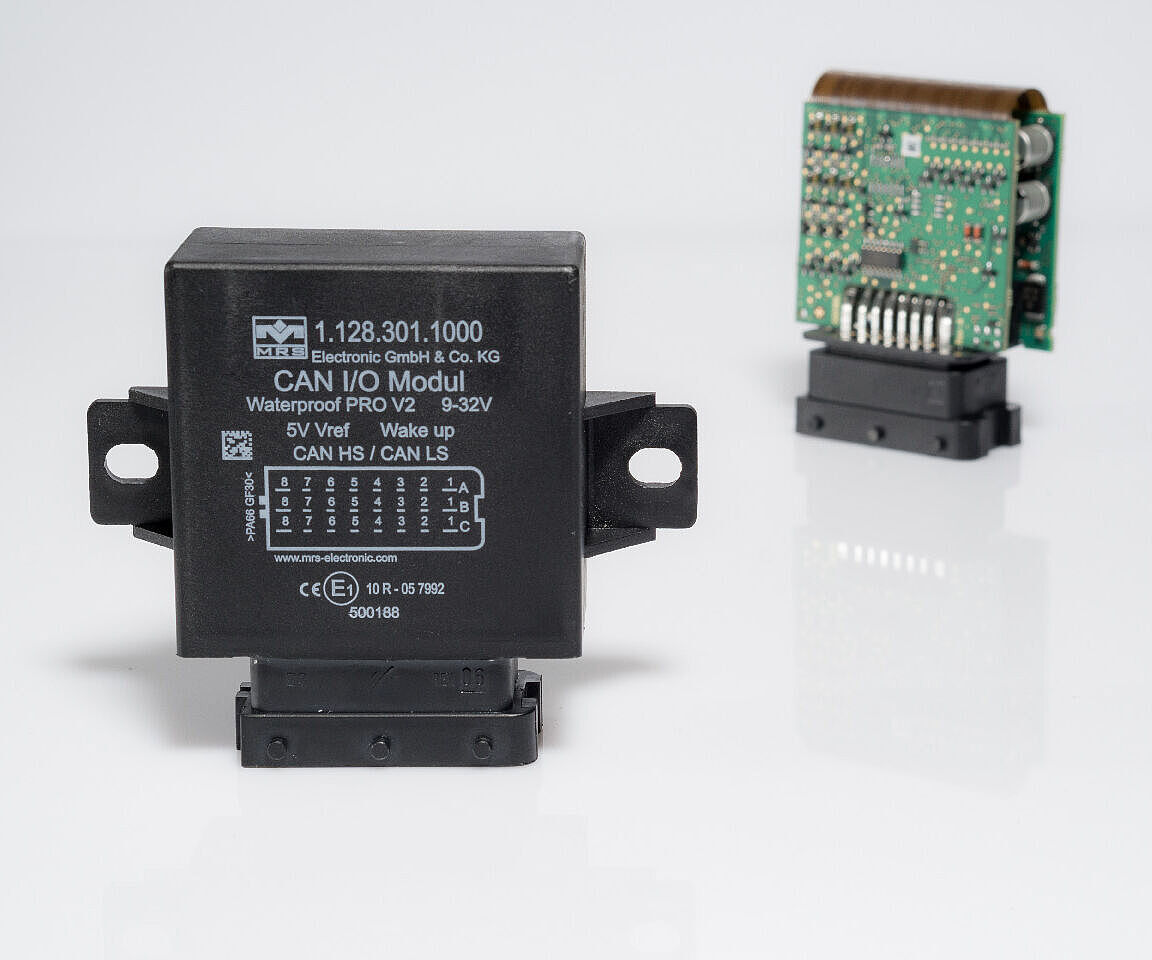

CAN I/O PLC Waterproof PRO V2

go to order options

The waterproof CAN I/O PLC Waterproof PRO V2 with 16 I/Os convinces by the various application possibilities in numerous control applications. In addition to eight I/Os that can be configured as inputs or outputs, it offers six analog and two digital inputs. The CAN controller also has integrated protection diodes to limit the free-wheeling voltage generated by the inductive loads.

The module can be used to control four current-controlled proportional valves. The 5 Volt reference output allows additional sensors to be supplied with voltage. The own supply voltage can be measured internally via terminal 30.

Downloads
Technical details

Inputs and Outputs

Number of pins 24
In-/Outputs (total) 15
Inputs (total) 7
Inputs (analog) 6
Inputs (digital) 1
I/Os (total) 8
I/Os (Input analog) 6
I/Os (Input digital) 2
I/O (Output PWM capable, integrated current measurement INA) 4
I/O (Output PWM capable) 2
I/O (Output digital) 2
Output type high side 8
Switching current 2.5 A

Interfaces

CAN interface(s) 1
Serial Interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30
Dimensions 60 × 80 × 30 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Quiescent current (12V) 75 µA
Quiescent current (24V) 138 µA
Vref current limit 500 mA
Processor architecture 8 bit

Certifications

Order options
Order no.Name
1.128.301.0000
5V Ref, KL30-Wake-up, CAN-HS, RType B, Connection S232
1.128.301.1000
5Vref, KL15/CAN-Wake-up, CAN-HS, RType B, Connection S232
1.128.321.1000
5V Ref, KL15/CAN-Wake-up, CAN-HS, RType D, Connection S485
