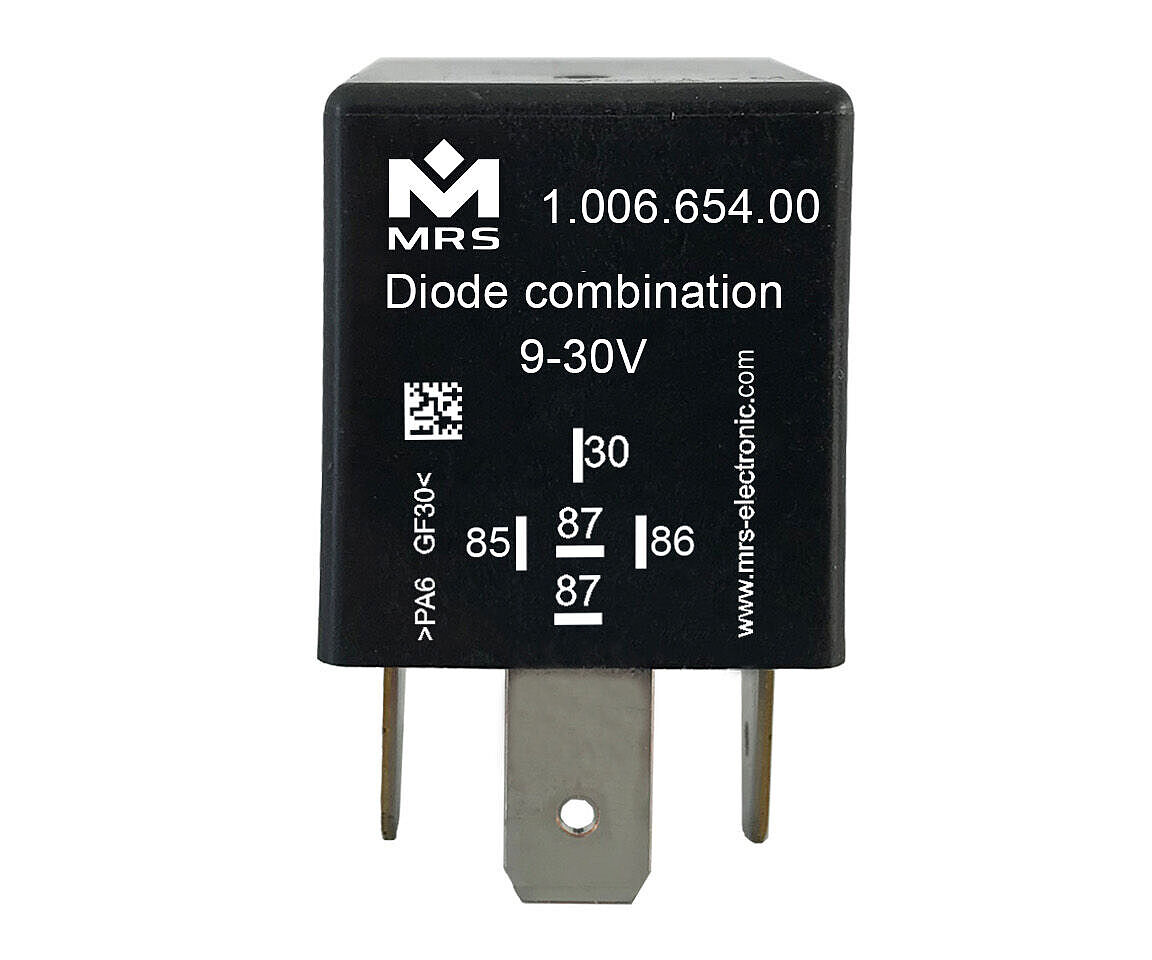

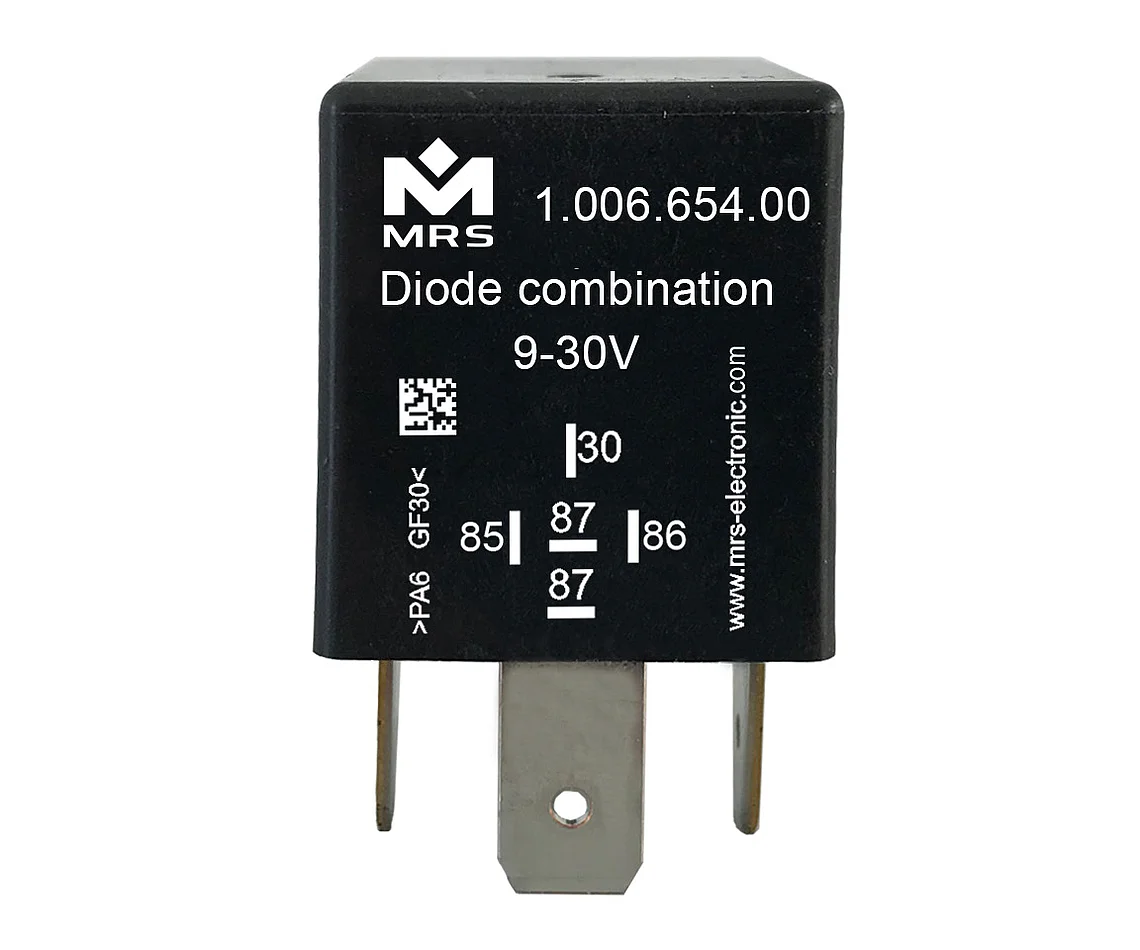

Diode combination

go to order options

Diode combination with diodes P600G. The diodes are not connected with each other. The anode and cathode of the diodes are accessible via other flat pins. 2 x individual 6 A / 400 V.

Technical details

Mechanical Properties

IP rating IP53
Housing material PA66GF30

General Information

Temperature range -40 to +85°C
Order options

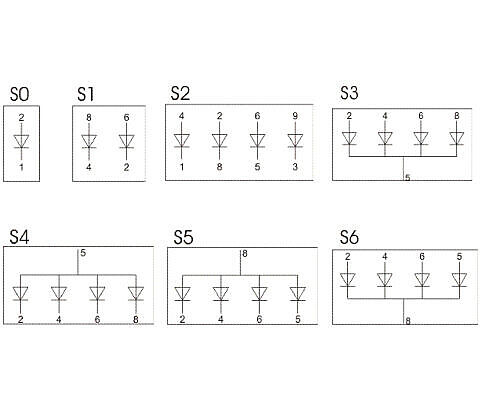

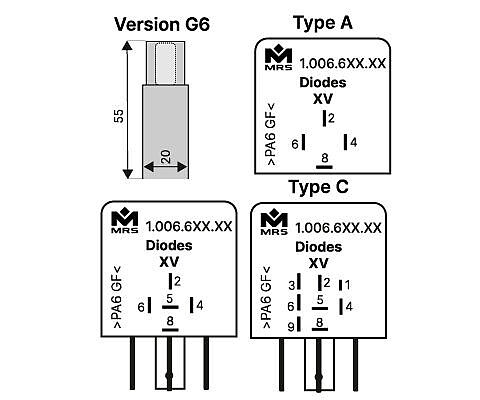

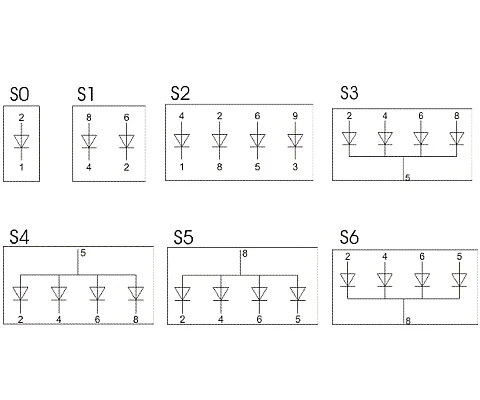

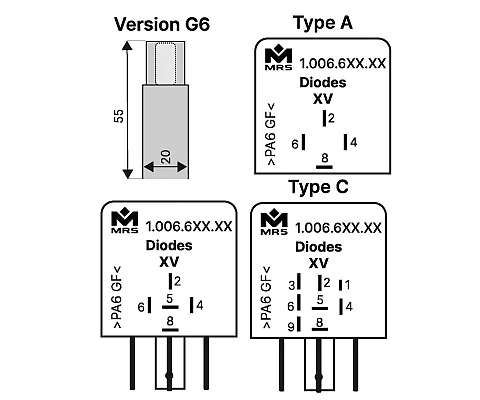

Order no.Name
1.006.600.00
1x single 3 A/1300 V, 3A, G6, S0
1.006.652.00
2x single 3 A/1300 V, 3A, G1, Type A, Connection S1
1.006.654.00
2x single 6 A/400 V, 6A, G1, Type A, Connection S1
1.006.660.00
4x single 3 A/1300 V, 3A, G1, Type C, Connection S2
1.006.661.00
4x common Cathode 3 A/1300V Pin5, 3A, G1, Type B, Connection S3
1.006.662.00
4x common Anode 3 A/1300V Pin5, 3A, G1, Type B, Connection S4
1.006.663.00
4x common Cathode 3 A/1300V Pin8, 3A, G1, Type B, Connection S6
1.006.664.00
4x common Anode 3 A/1300V Pin8, 3A, G1, Type B, Connection S5
