Micro Gateway DTM
go to order options (11569)

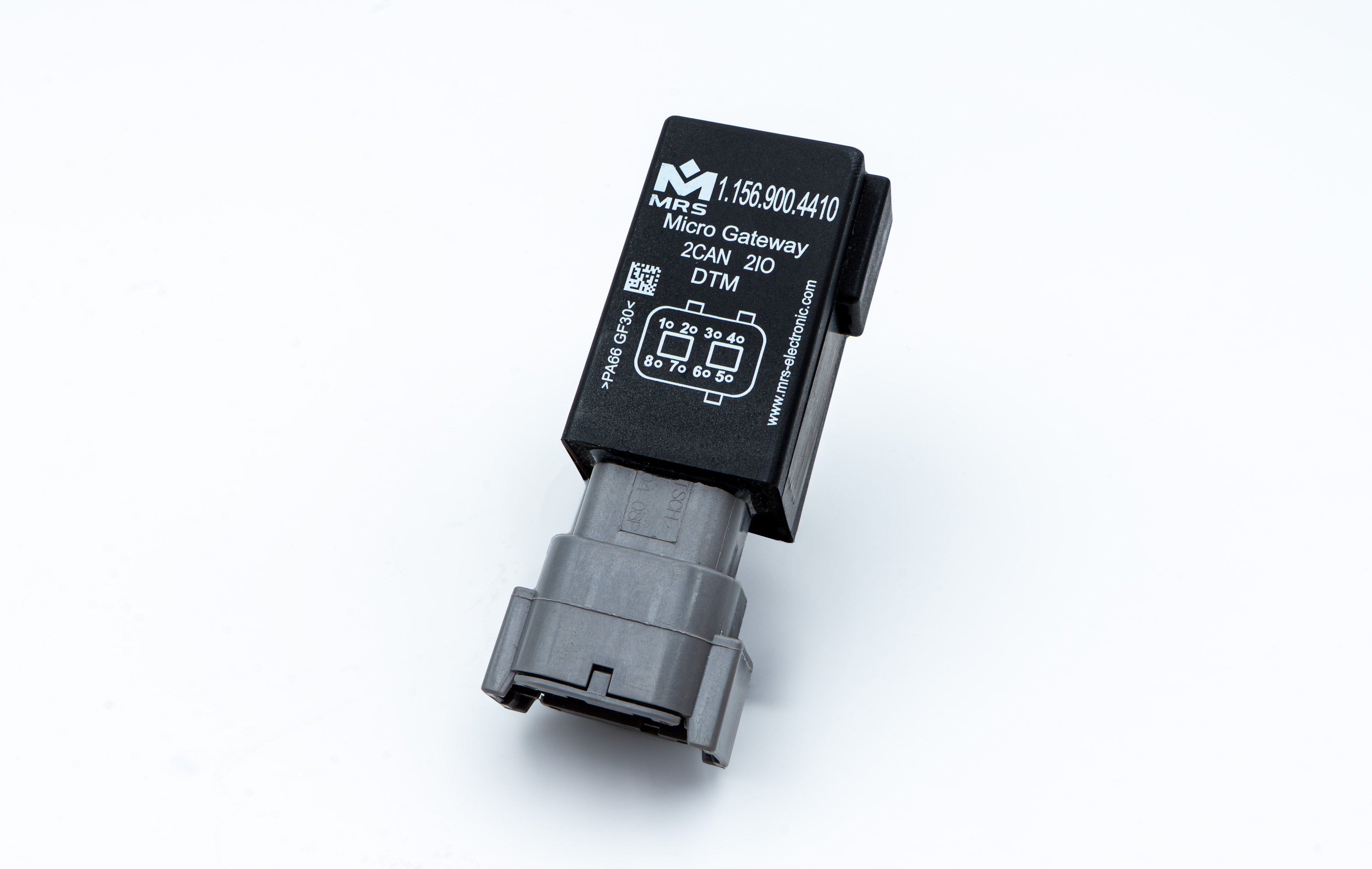

The new Micro Gateway DTM with DEUTSCH DTM connector is a compact gateway for automotive applications. The core component, the 32-bit processor, provides you with higher performance and therefore secure routing and gateway functionality with a high bus load.

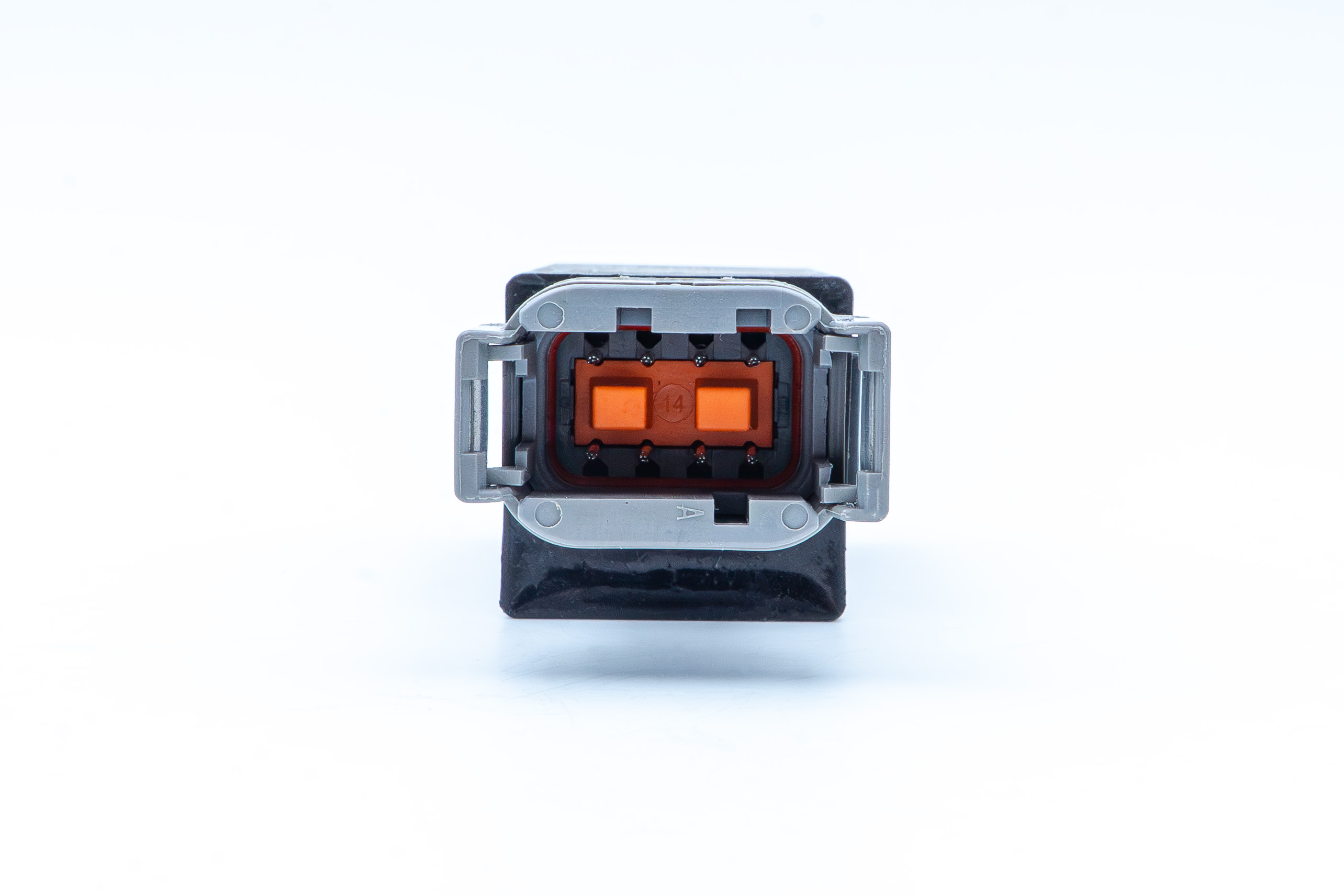

In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 2 |
| I/Os (total) | 2 |
| I/Os (Input analog) | 2 |
| I/O (Output PWM capable) | 4 |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| CAN FD interface(s) | 1 |
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA 66GF30 |
Programming
| Programming software | MRS Applics Studio |
|---|
General Information
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 70 mA |
| Quiescent current (12V) | 80 µA |
| Quiescent current (24V) | 100 µA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.156.900.4410 (11569004410) |
2xCAN 2x I/O's KL30 DTM
|
