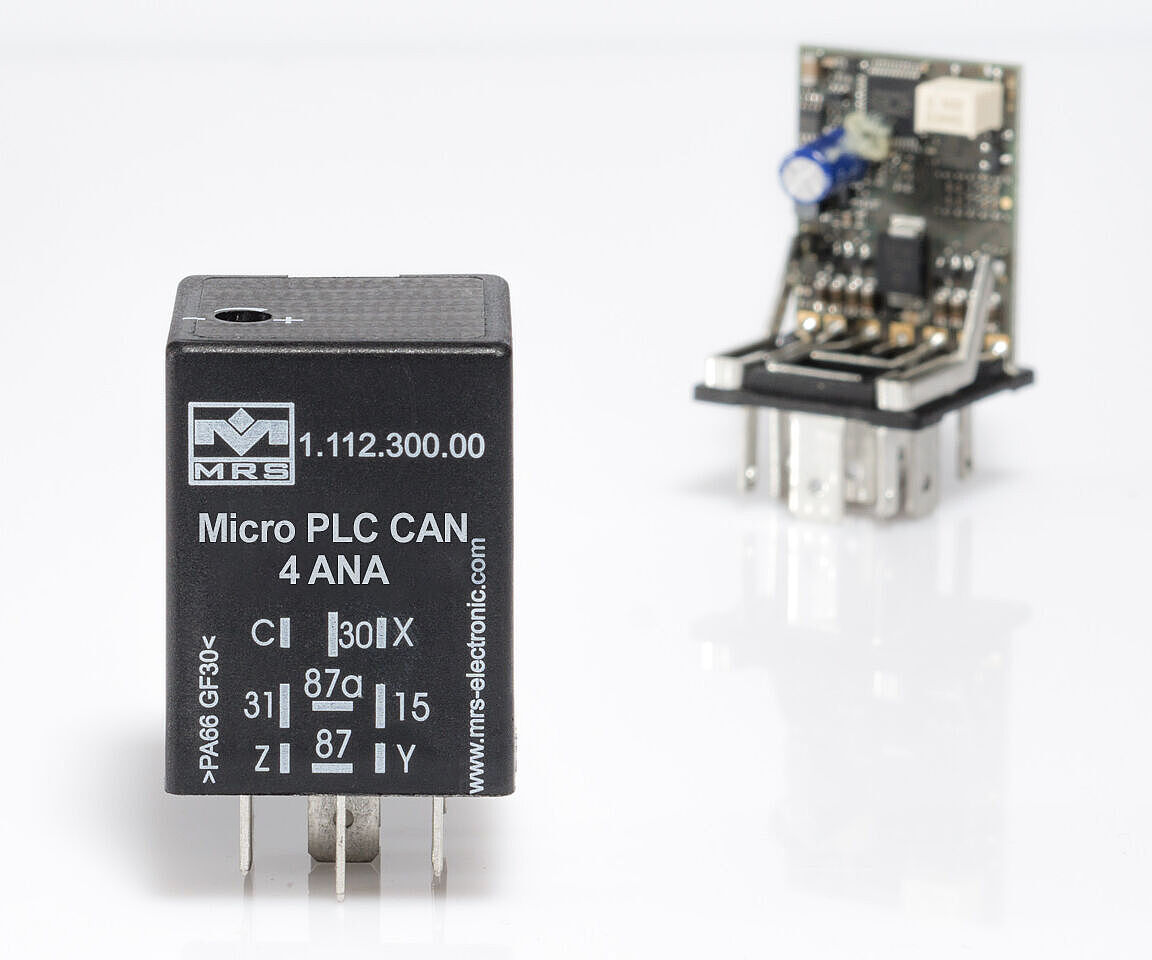

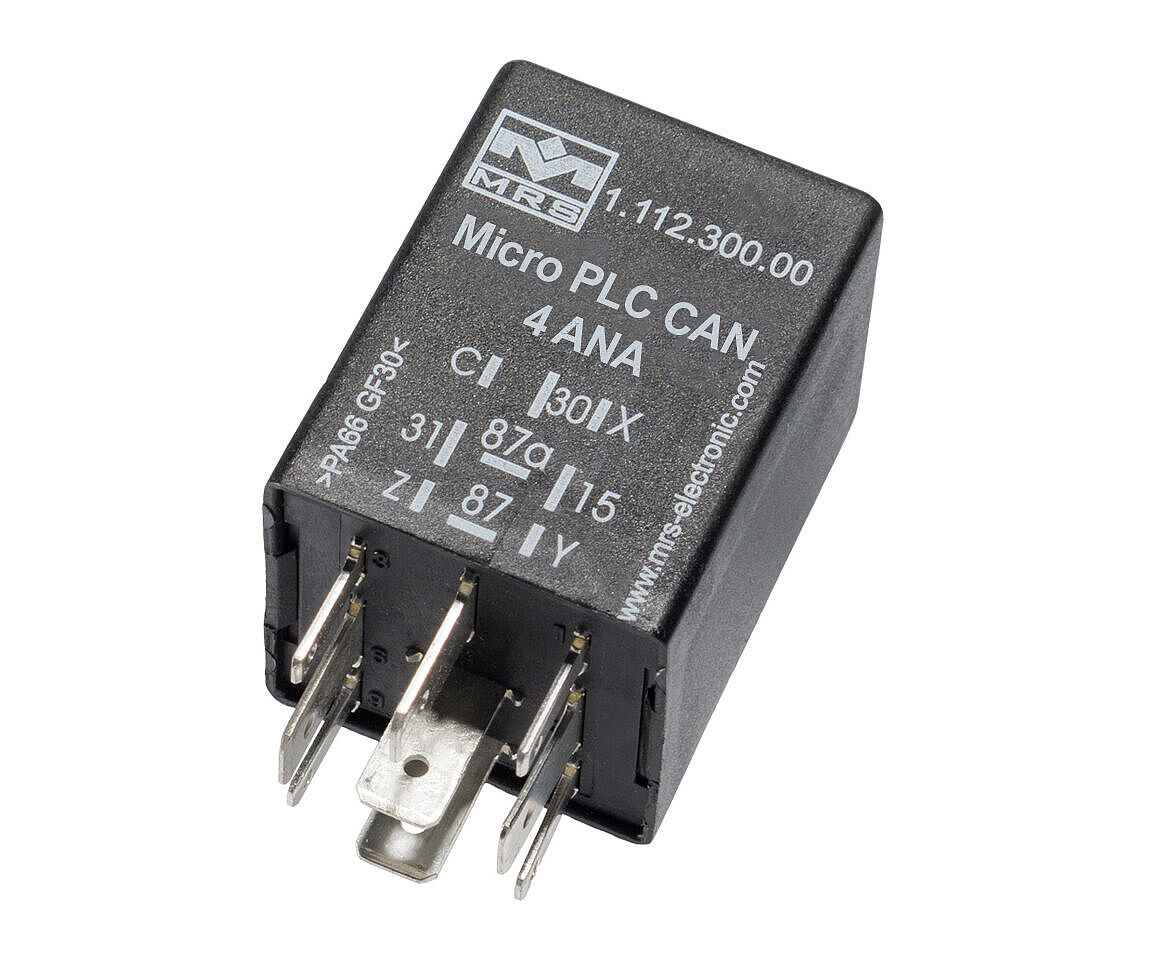

Micro PLC CAN 4 ANA

go to order options

The Micro PLC CAN 4 ANA offers many possible applications with 4 analog input and outputs whose function can be individually defined. These I/Os can be used as four analog outputs for currents from 0 to 24 mA and voltages from 0 to 10 V. They can also be configured as analog inputs. Additionally, the controller provides the option to configure two of the four I/Os as frequency inputs.

Downloads
Technical details

Inputs and Outputs

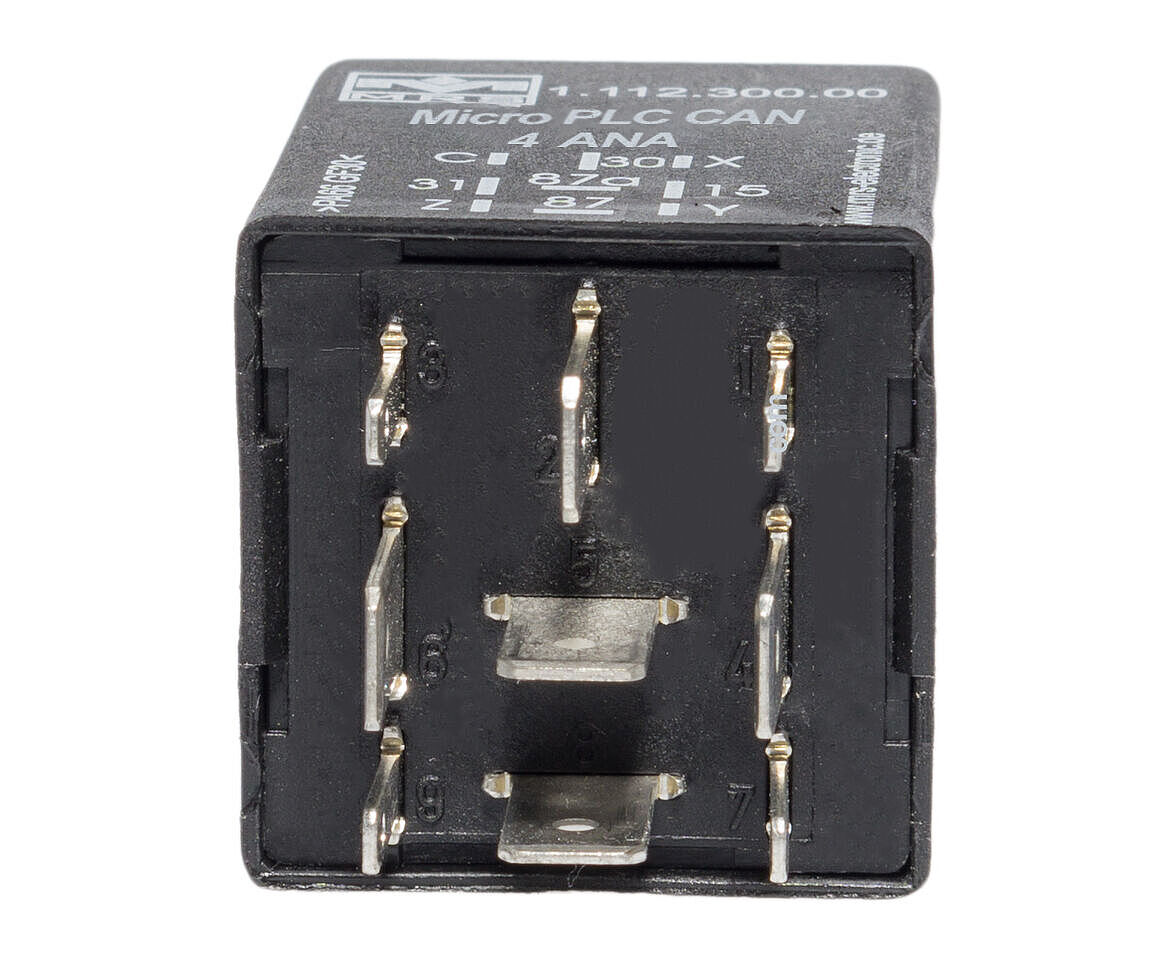

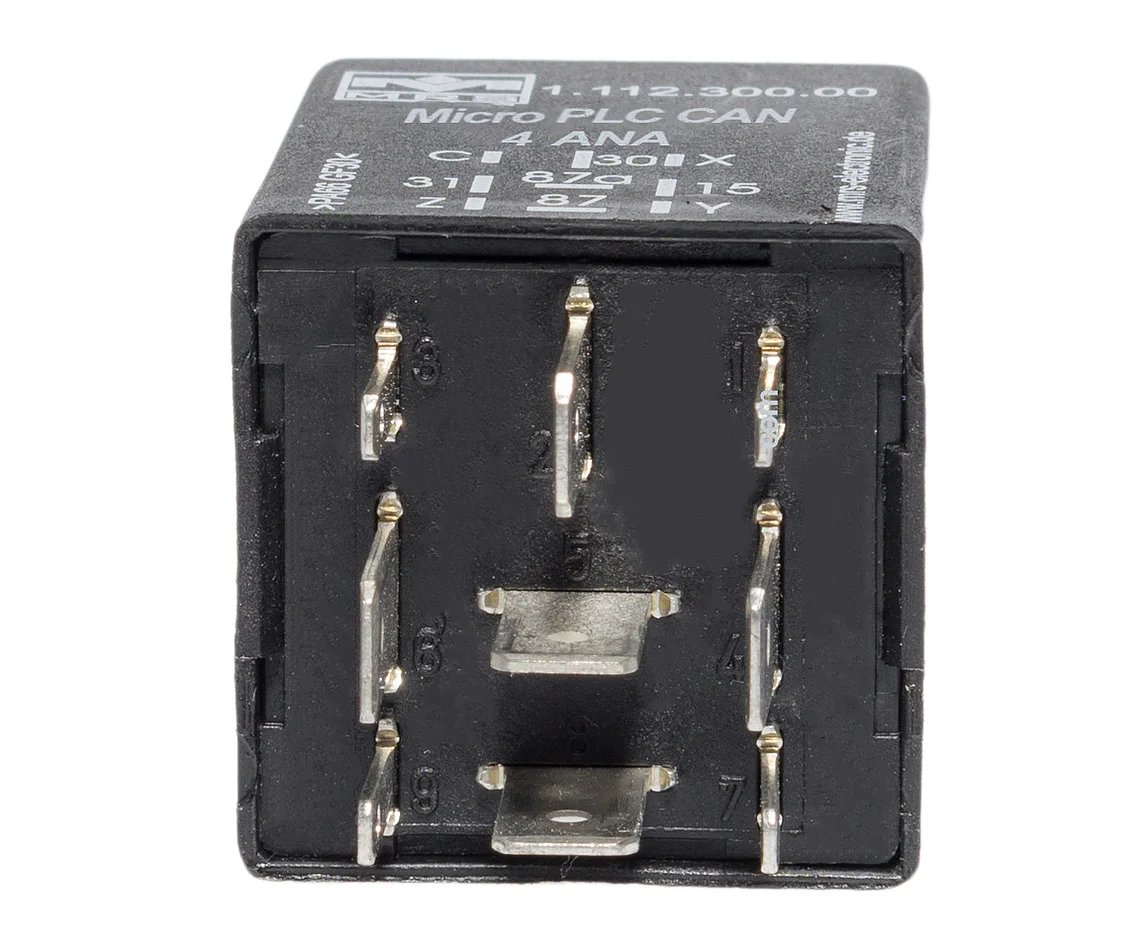

Number of pins 9
In-/Outputs (total) 4
I/Os (total) 4
I/Os (Input analog) 4
I/O (Output analog) 4
Output type high side 4
Switching current 25 mA

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Quiescent current (12V) 20 µA
Quiescent current (24V) 20 µA
Processor architecture 8 bit

Certifications

Order options
Order no.Name
1.112.300.00

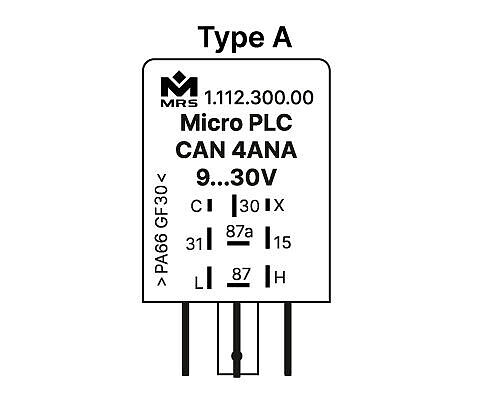

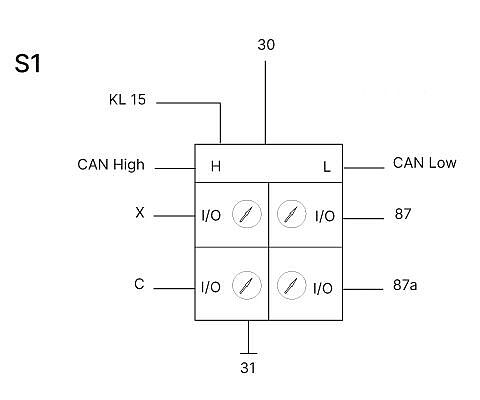

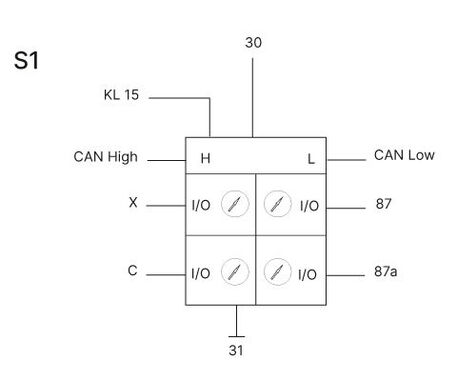

Type A, Connection S1
1.112P.​300.​00
CANopen (CiA401), Type A, Connection S1
