Micro PLC CAN LIN

go to order options

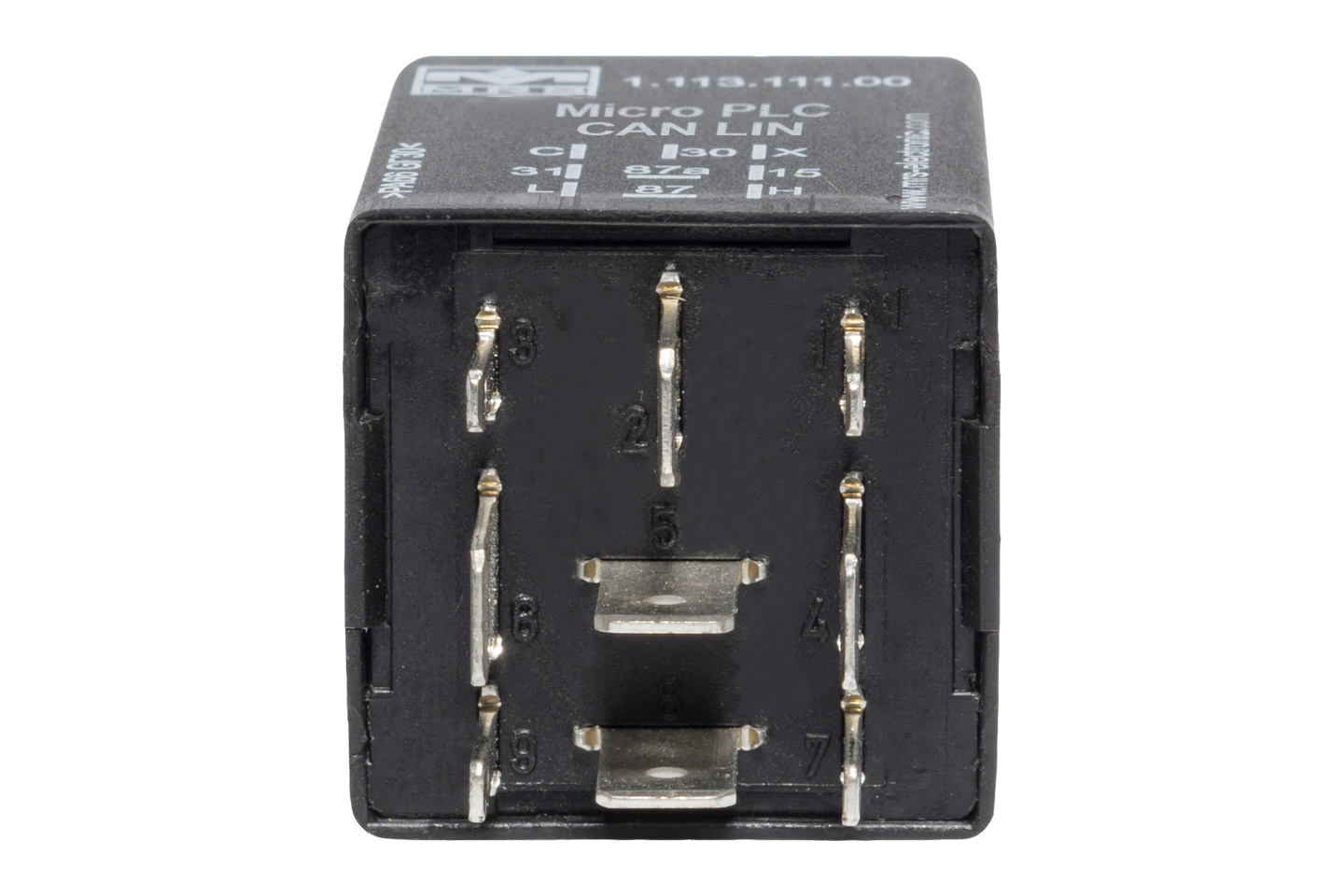

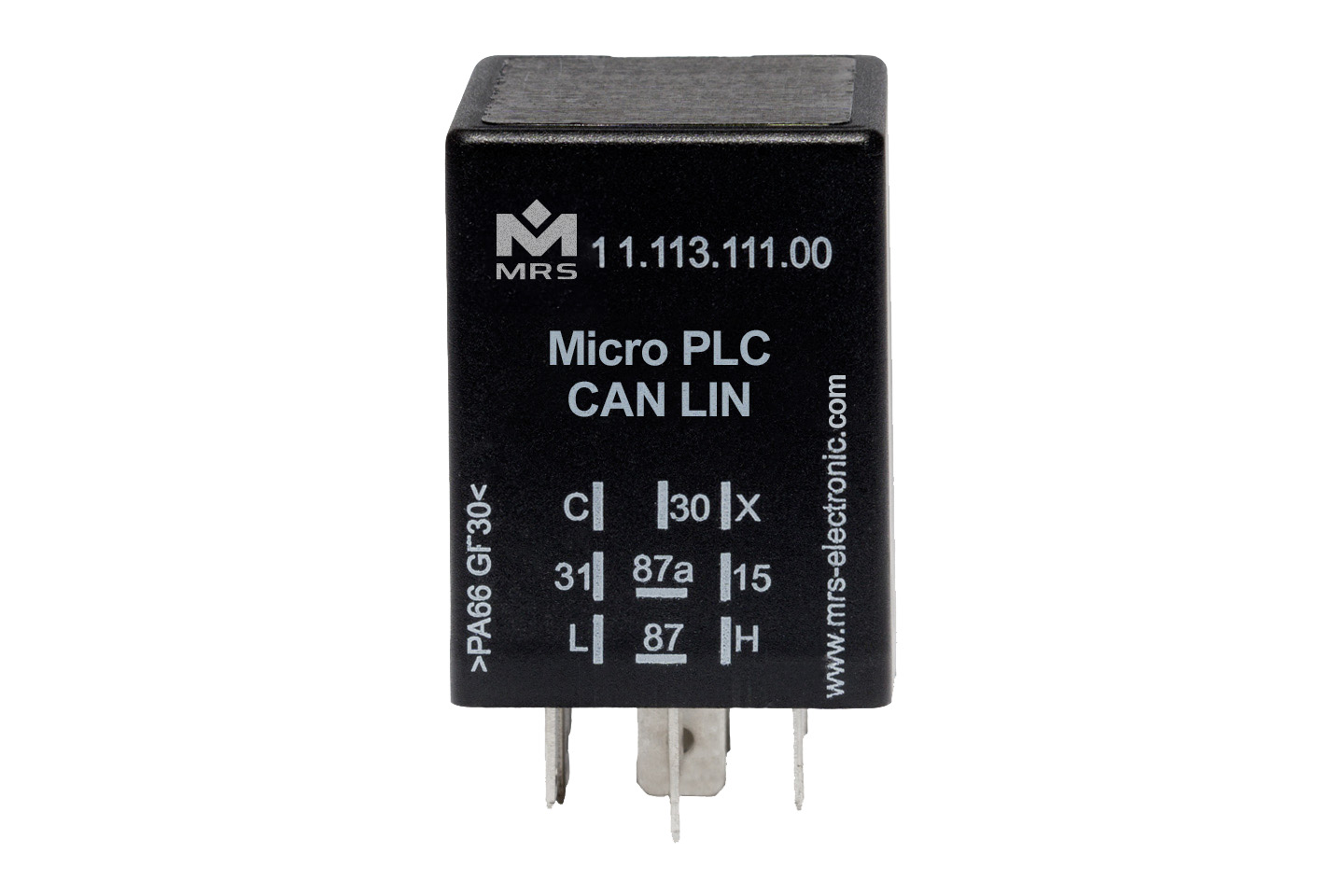

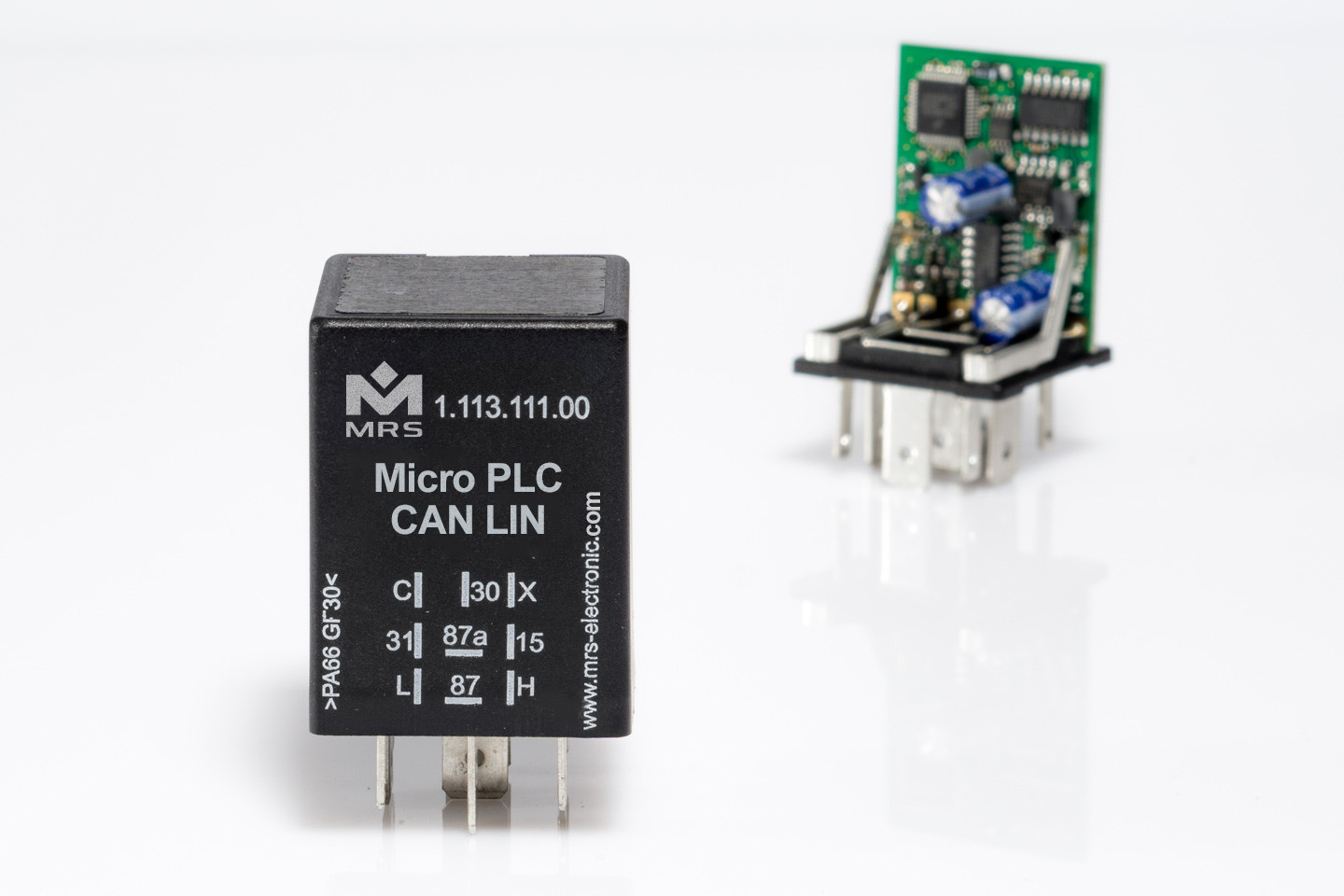

The most compact Gateway of MRS Electronic is the Micro PLC CAN LIN. This gateway has been developed and built on the basis of a micro PLC CAN. It offers a wide range of functions, wrapped in a 30 x 30 x 40 mm compact plastic housing. It has 9 pins with a CAN and LIN interface. The product can be delivered as LIN Slave or as LIN Master circuitry and is perfect for tight installation spaces.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

Number of pins 9
In-/Outputs (total) 4
Inputs (total) 2
Inputs (analog) 2
I/Os (total) 2
I/O (Output PWM capable) 2
Switching current 400 mA

Interfaces

CAN interface(s) 1
LIN interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 8-16 V
Current consumption 40 mA
Quiescent current (12V) 50 µA
Processor architecture 8 bit

Certifications

Order options
Order no.Name
1.​113.​111.00
Slave wiring
1.113.111.​03
Master wiring
