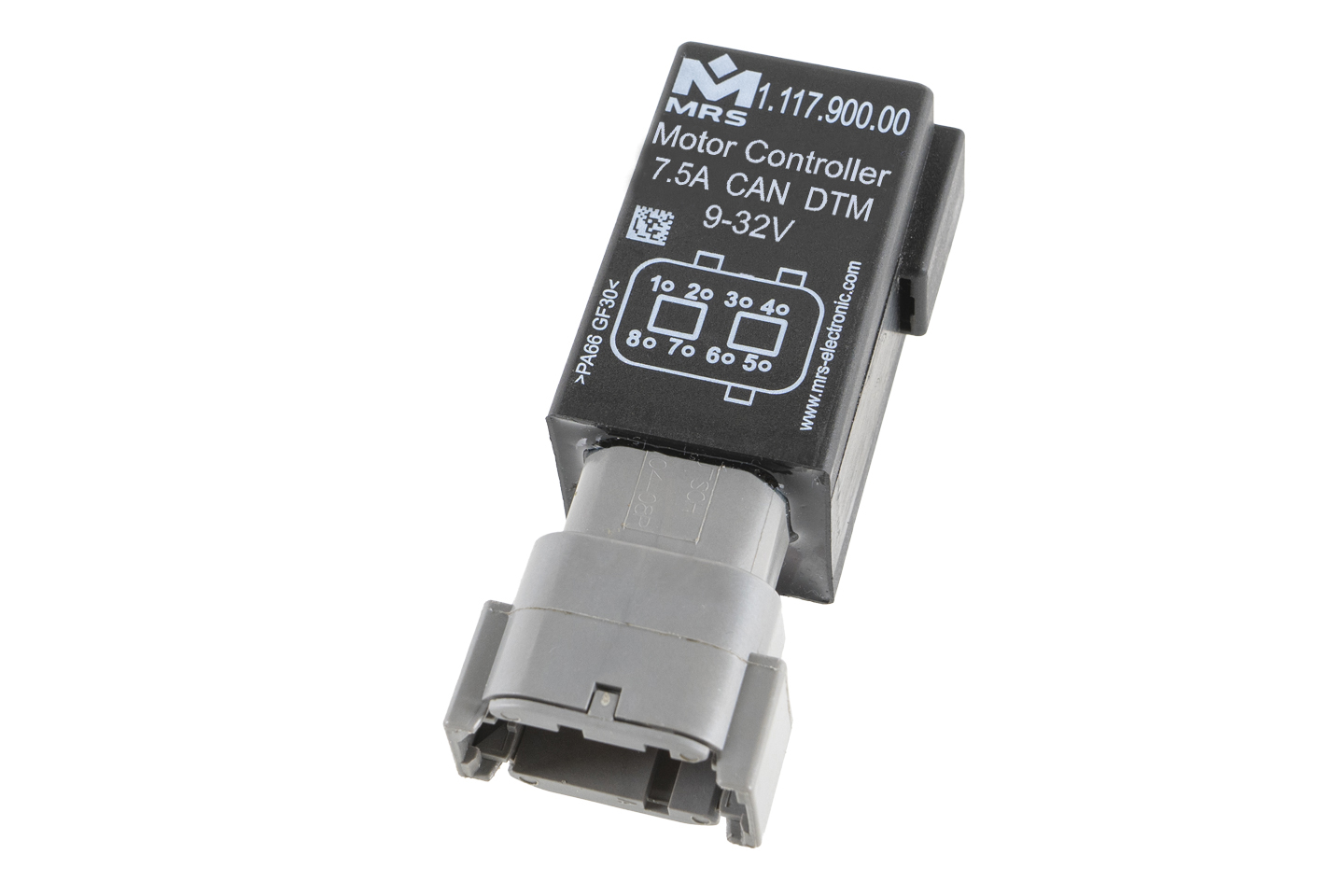

Motor Controller 7.5 A CAN DTM

go to order options

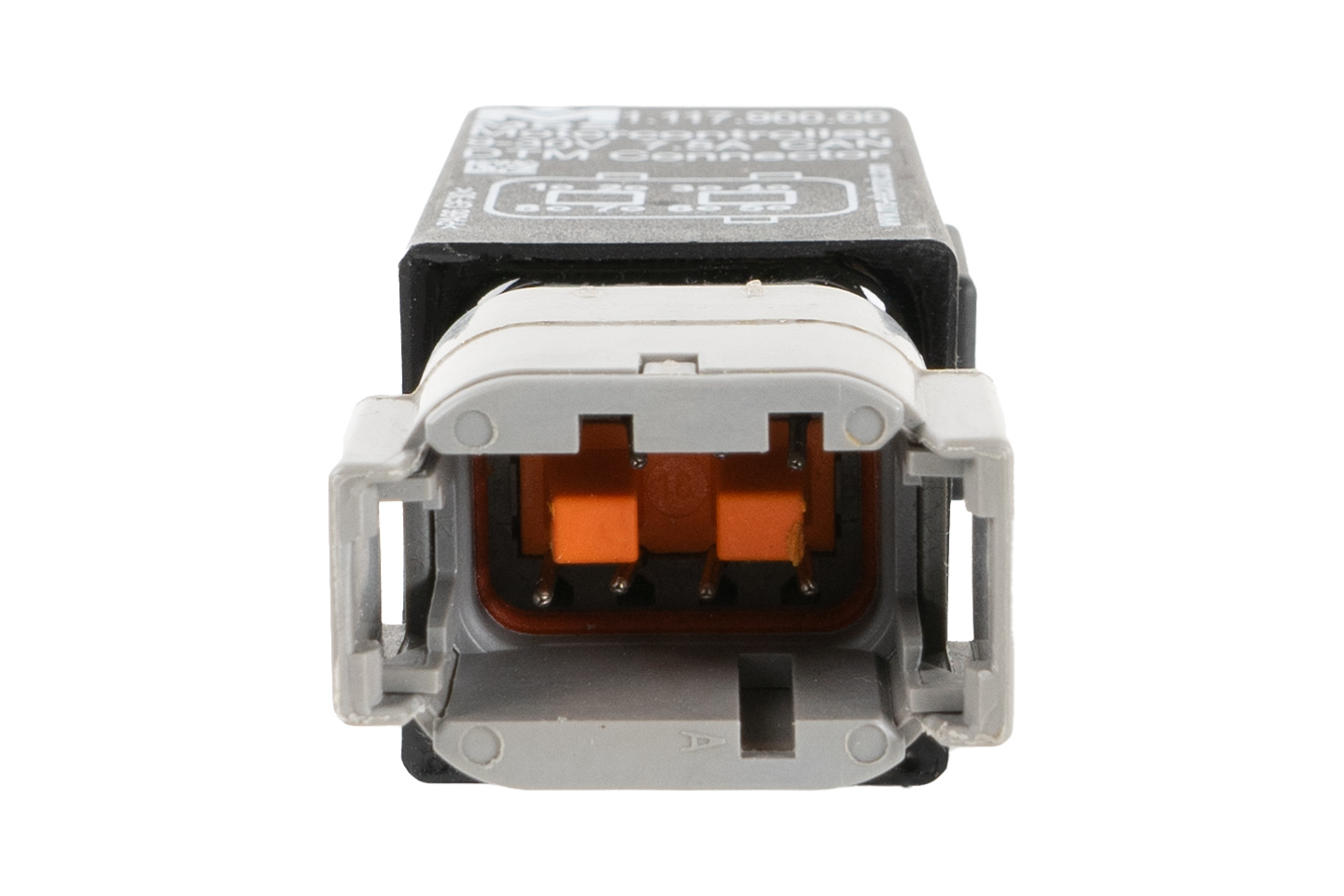

The Motor Controller 7.5 A CAN DTM is used for the control of DC motors. Due to the free programmability and the compact design, you can implement a wide range of applications in the smallest of spaces. In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.

Technical details

Inputs and Outputs

Number of pins 8
In-/Outputs (total) 2
Inputs (total) 1
Inputs (analog) 1
Outputs (total) 1
Fullbridge 1
Switching current 7.5 A


CAN interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30


Programming software MRS Developers Studio

General Information

Temperature range -40 °C to +85 °C
Operating voltage 6-32 V
Current consumption 23 mA
Quiescent current (12V) 700 µA
Quiescent current (24V) 1280 µA
Processor architecture 8 bit


Order options
Order no.Name
Wake Up Possibility KL15, CAN HS
