Proportional Amplifier 9-30 V

go to order options

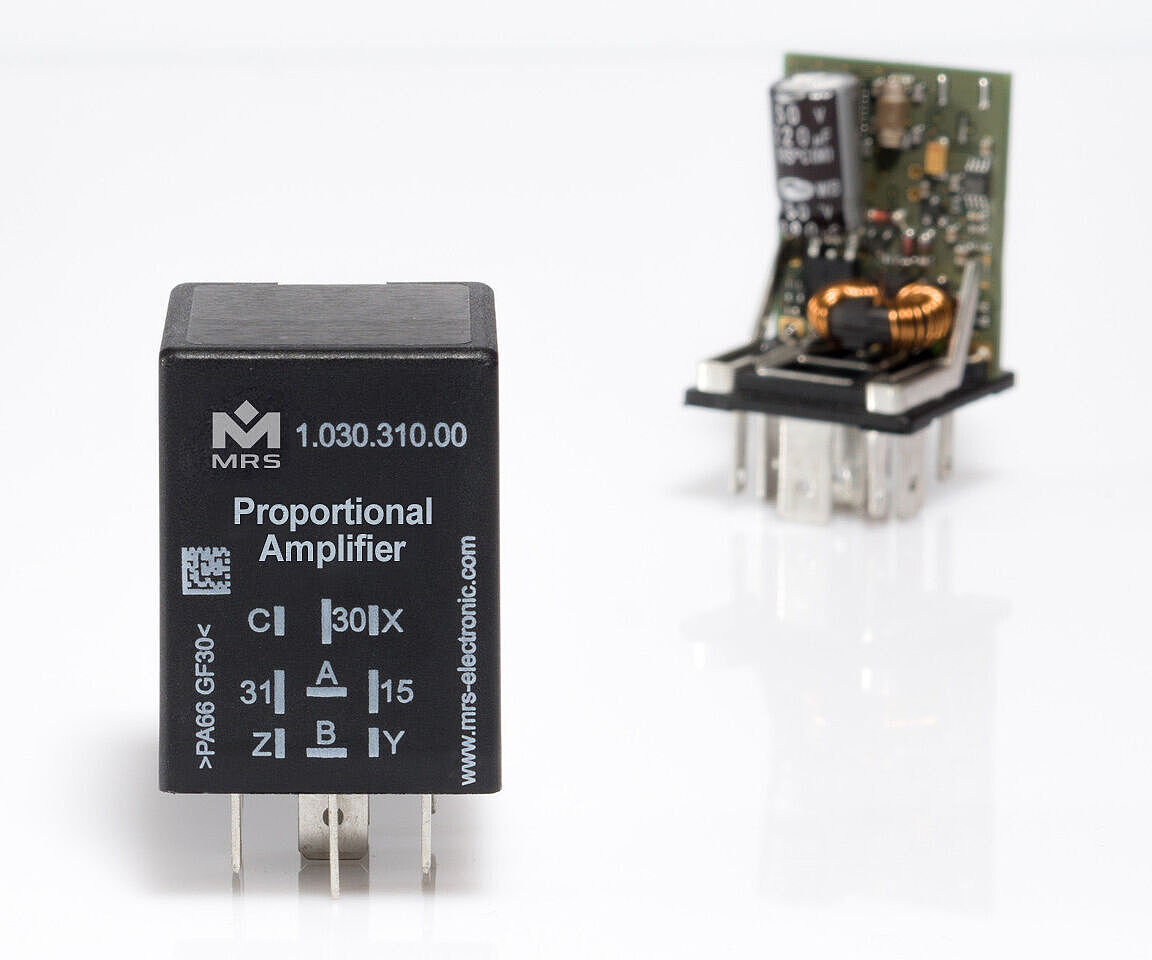

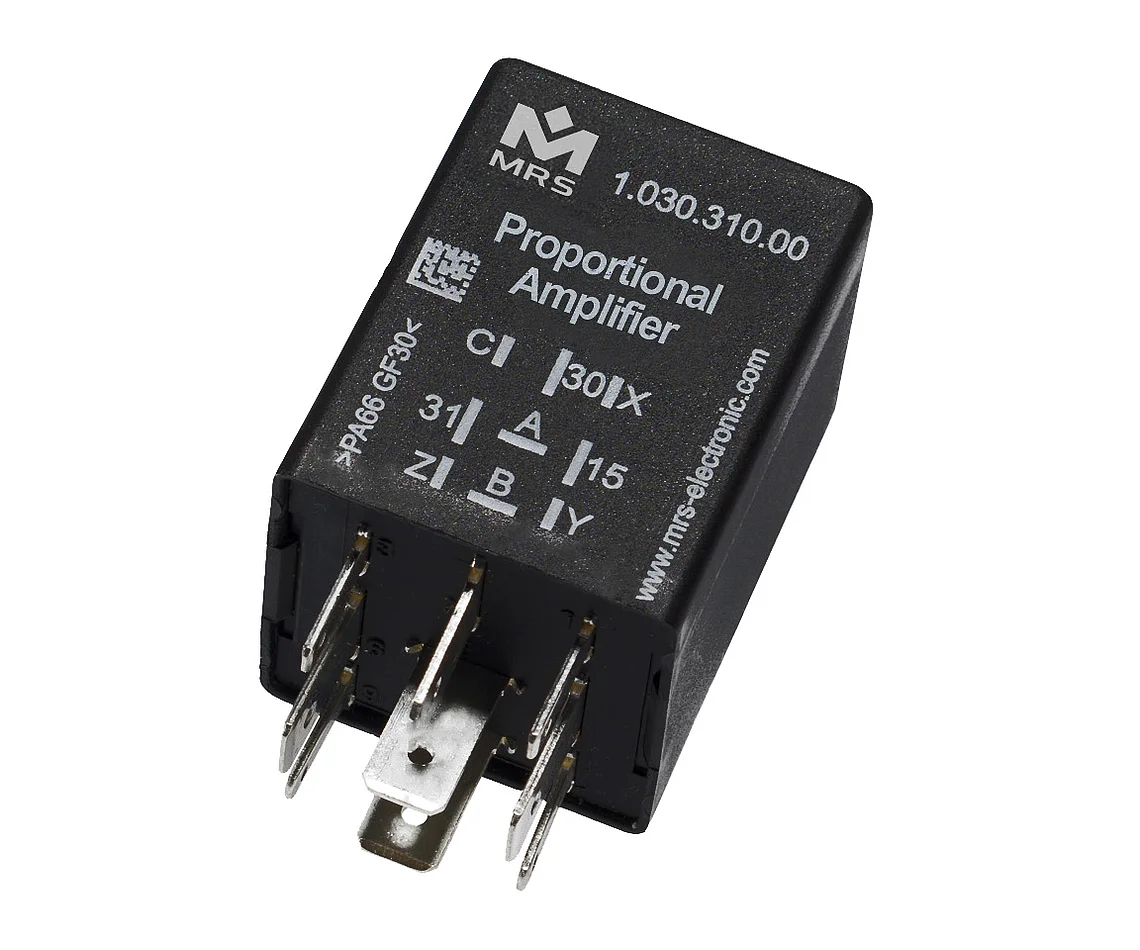

The Proportional Amplifier serves as flow rate regulator for proportional valves. It is used in many hydraulic applications. The microcontrollerbased current regulator provides a constant output current proportional to the set point value 0-10 Volt or 0-20 mA. Fluctuations in supply voltage and temperature are compensated for which ensures constant flow rates. To counteract stiction and hysteresis effects a dither frequency can be added (superimposed small rectangular ripple frequency). Please refer to the section housings and base plates for additional housing options.

Technical details

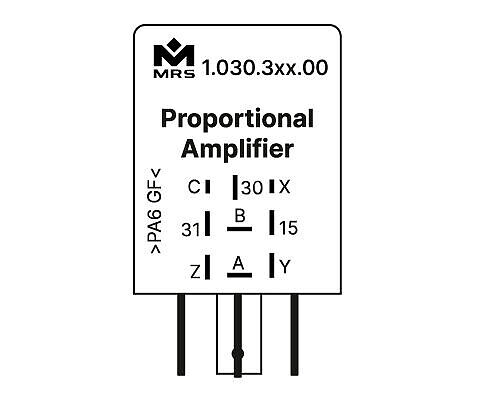

Inputs and Outputs

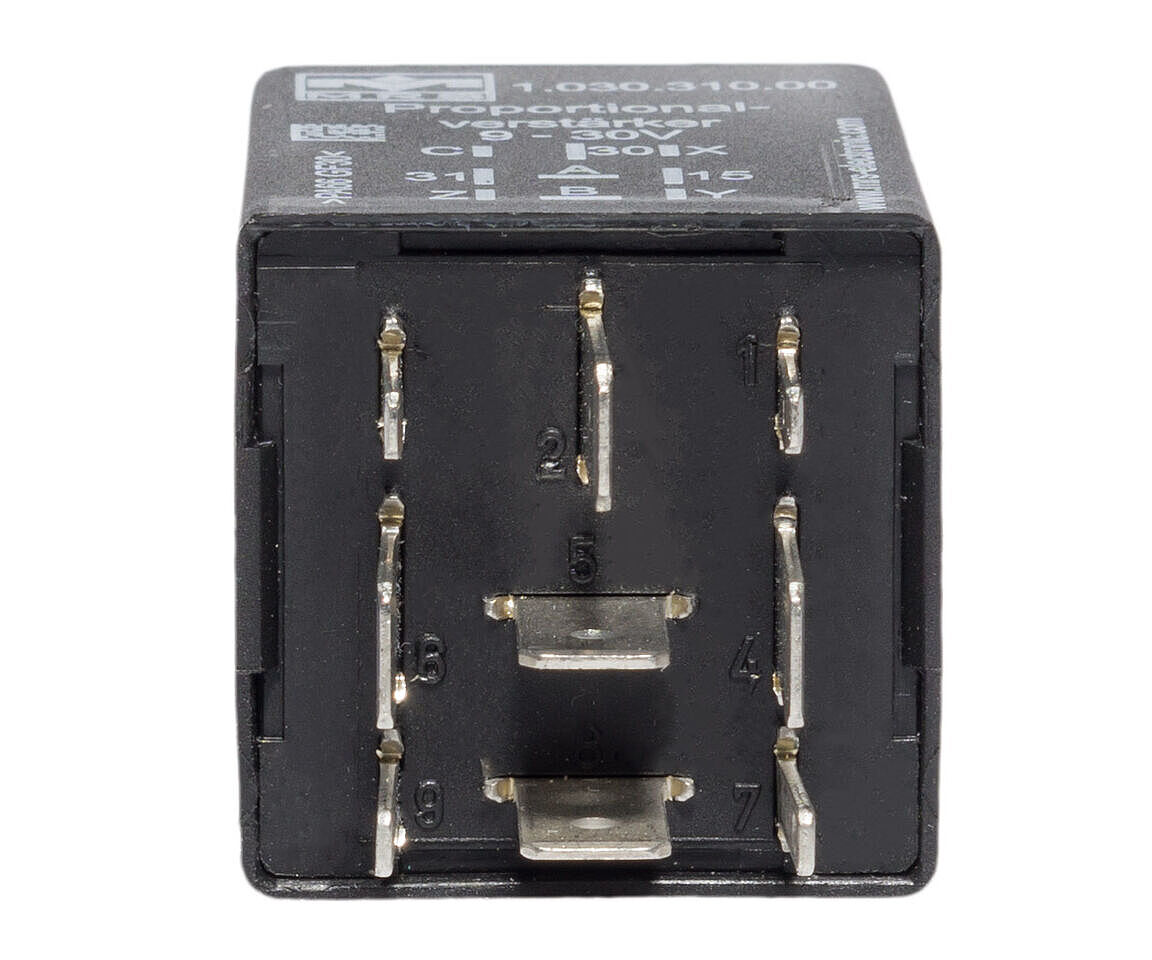

Number of pins 9
In-/Outputs (total) 5
Inputs (total) 4
Inputs (analog) 1
Inputs (digital) 3
Outputs (total) 1
Outputs (PWM capable, integrated current measurement INA) 1
Output type high side 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 9-30 V
Order options
Order no.Name
1.030.311.00

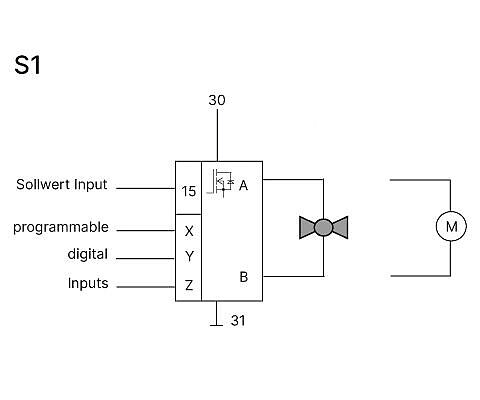

Voltage setpoint w/o potentiometer, Type A, Connection S1
1.030.310.00
Voltage setpoint with potentiometer, Type A, Connection S1
