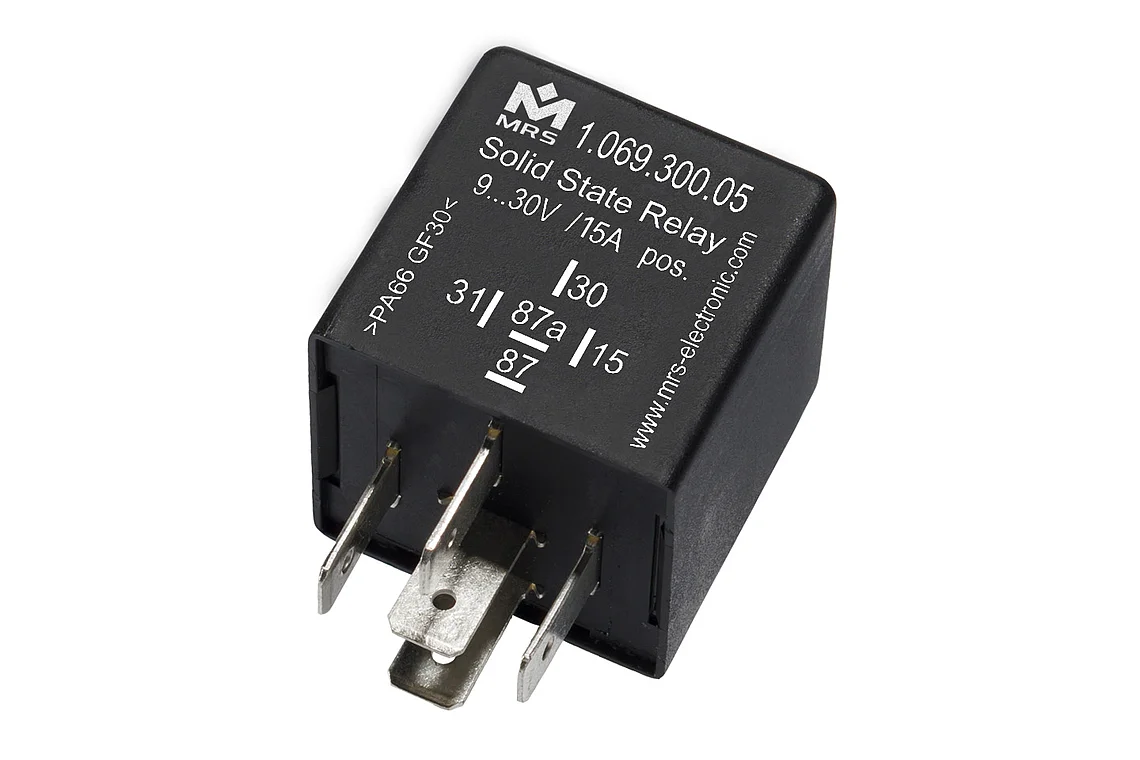

Solid State Relay SSR 15 A

go to order options

The MRS solid state relay has high capacitive and inductive peak current capacity and is perfectly suited for switching resistive and inductive loads. Compared to mechanical relays, the solid state relay has no moving contacts so it is maintenance and wear-free with a silent activation. The current feedback via the additional 5th pin offers useful diagnostic output. Due to the compact size and the connector, the relay is compatible with conventional ISO mini relays. The solid state relay can be ordered with positive or negative control.

Downloads
Technical details

Inputs and Outputs

Number of pins 5
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Outputs (digital) 1
Switching current 15 A

Mechanical Properties

IP rating up to IP6K8
Housing material PA66GF30
Dimensions 30 × 30 × 30 mm

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption <20 μA
Order options
Order no.Name
1.069.300.15
Positive control
1.069.301.15
Negative control
