TConn 4.3 CAN Display

go to order options

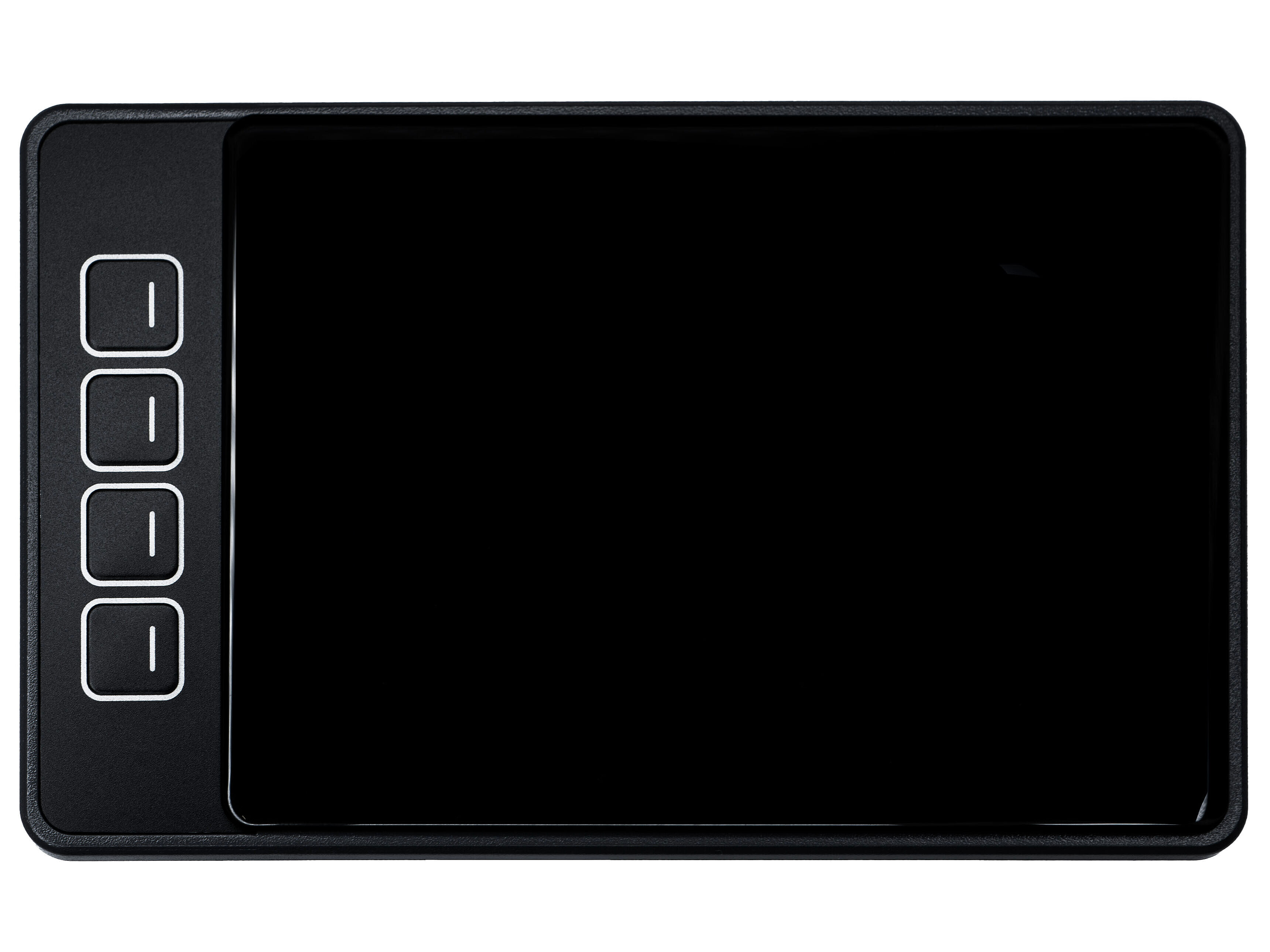

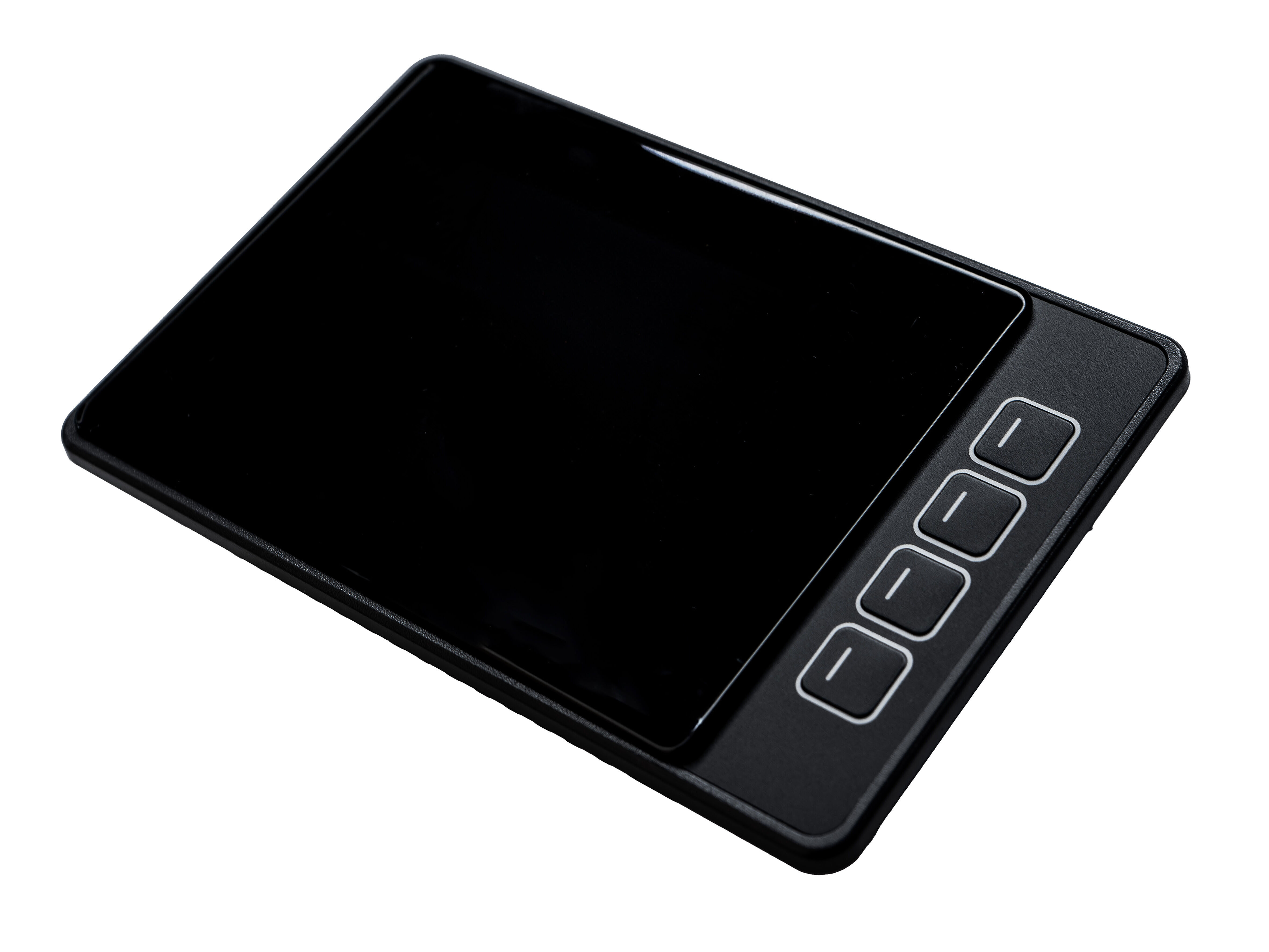

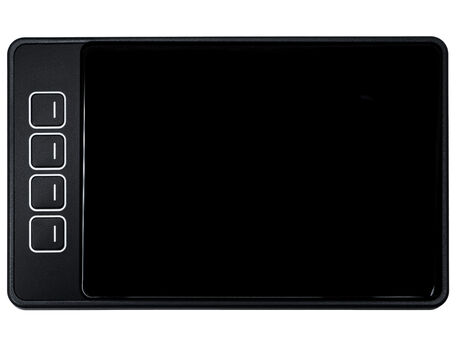

The TConn 4.3 is a cost-efficient CAN display with a 4.3 inch screen. It features an optically bonded display with a brightness of up to 800 candela/m² (nits). This means you can use it even in direct sunlight and read it optimally at any viewing angle. The display offers a resolution of 480 x 272 pixels. The capacitive touchscreen and the four keys with fluorescent print make operation particularly user-friendly. Thanks to the multi-touch screen, it can even be operated with gloves.

Powered by an i.MX6 processor with 528 MHz, 2 GB memory and 256 MB RAM, the HMI system ensures reliable performance in the voltage range from 9 to 36 volts and runs on a Linux operating system. Application programming is carried out using C++, Projektor or Qt/QML. With its polycarbonate and ABS housing, it is particularly impact and heat resistant. You can mount the TConn 4.3 according to your requirements, with the buttons on the right or left side or in portrait mode.

Downloads
Technical details

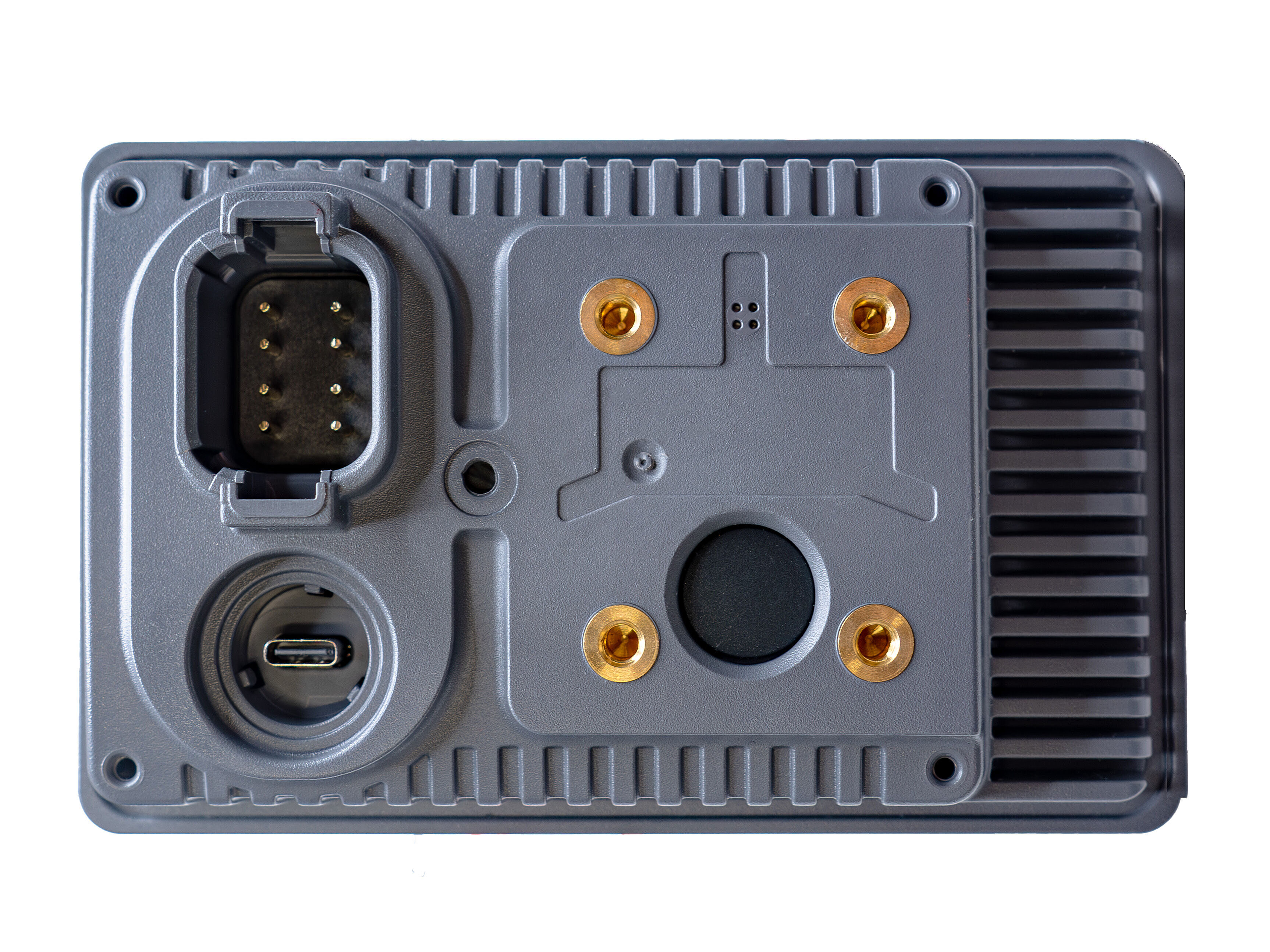

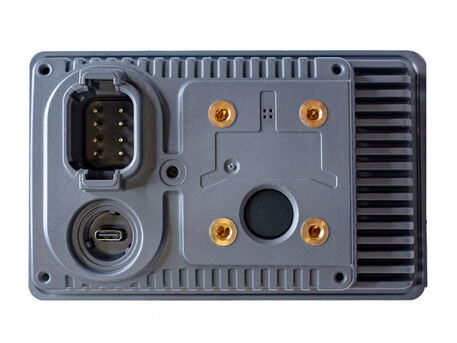

Interfaces

CAN interface(s) 2
CAN FD interface(s) 2
USB interface(s) USB, Type C

Mechanical Properties

IP rating IP66 and IP67
Housing material PC/ABS, Autotex XEF200
Dimensions 144 × 89 × 35 mm

Programming

Programming C++, Projektor, Qt

General Information

Temperature range -30°C to +75°C
Operating voltage 9-36 V
Type Optical bonded
Screen size 4,3”
Resolution 480 x 272
Brightness typ. 800cd/m²
CPU 32-bit
Mass storage 2 GB
RAM 256 MB
Operating system Linux

Markings

Order options
Order no.Name
1.502.303.0000
with keys & touch function
