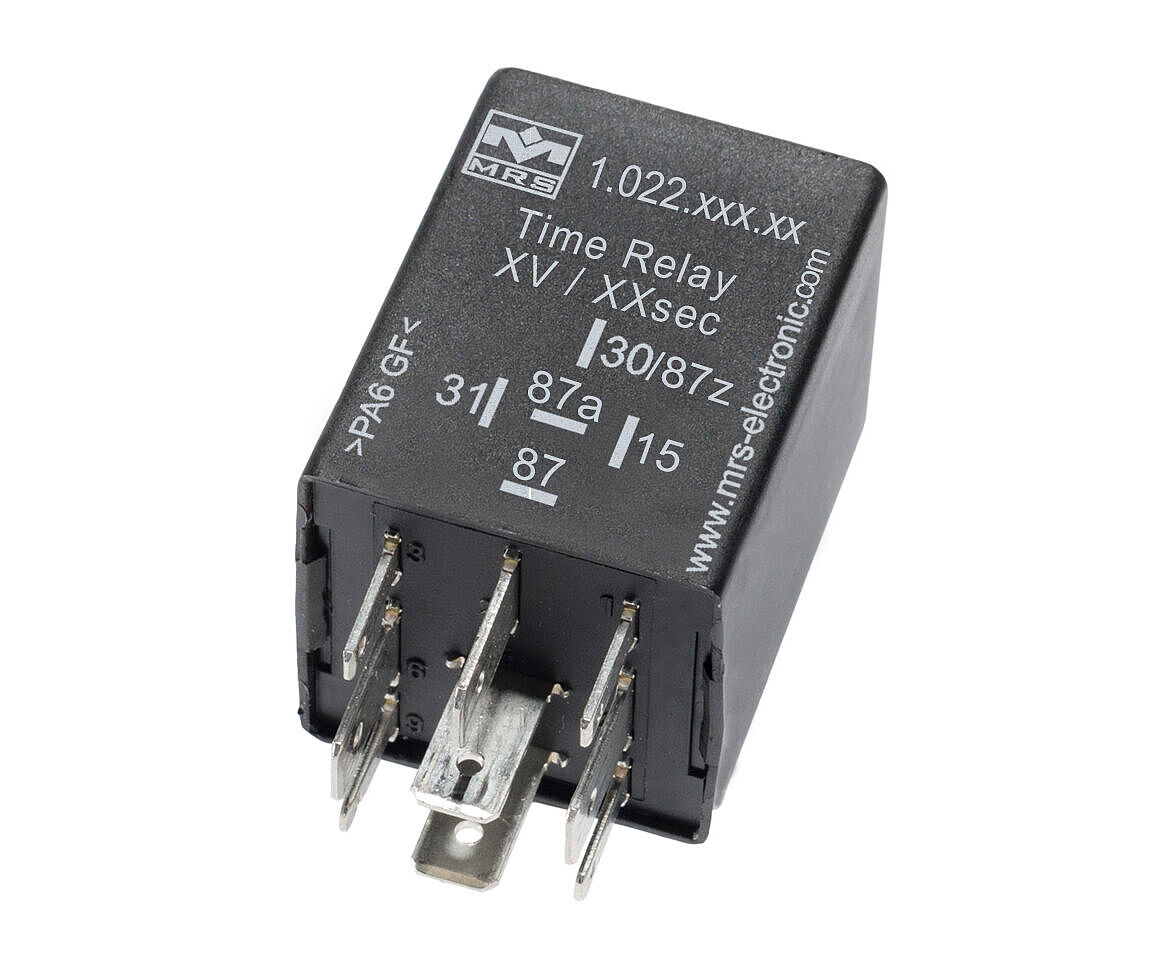

Time Relay SW off Delay adjust 24 V

go to order options

With adjustable time relays the exact delay time can be set via potentiometer within the selected time range. You can choose from five time ranges by default (see table). We realize other time ranges on request. Please specify the desired time range when ordering.

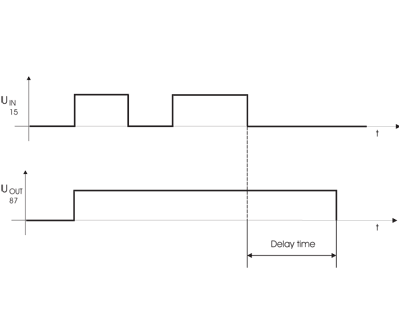

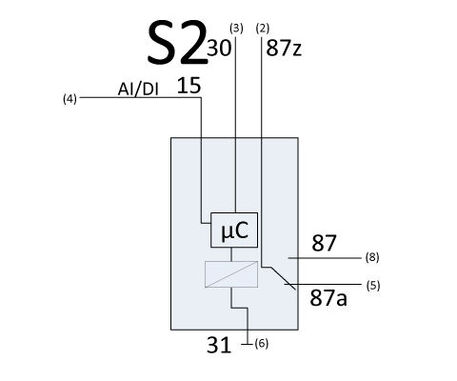

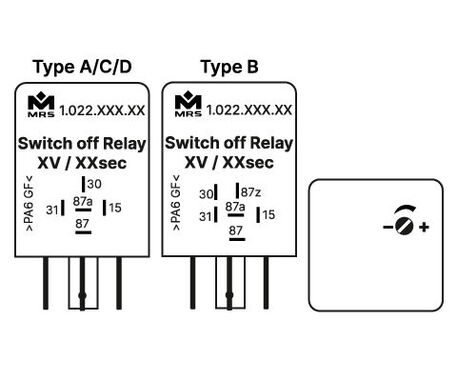

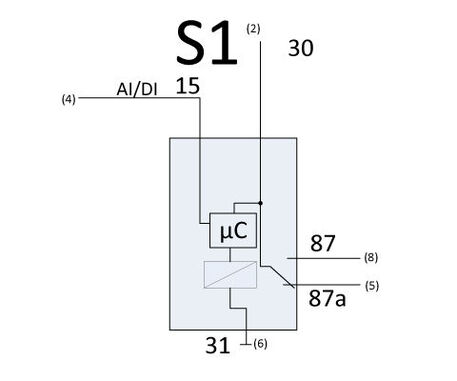

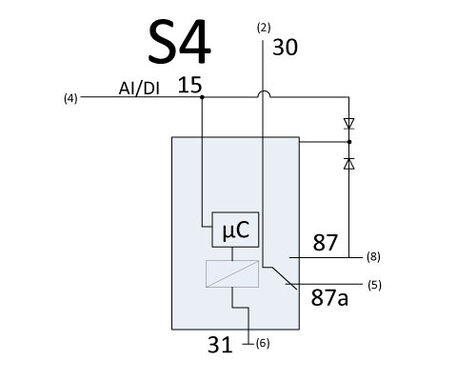

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay falls off after the set time has elapsed. Circuit diagram S4: The relay does not consume a quiescent current by the diode circuitry after the drop. Housing forms can be found in the section housing and basic body.

Downloads
Technical details

Inputs and Outputs

Number of pins 5
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1
Switching current NO 10 A / NC 5 A

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm
Switching cycles 50000

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 16-32 V
Current consumption 0.3 mA

Markings

Order options
Order no.Name
1.022.213.xx
Individual delay time, Type A, Connection S1
1.022.213.01
Time Interval: 0,5 – 5 seconds, Type A, Connection S1
1.022.213.02
Time Interval: 1 – 30 seconds, Type A, Connection S1
1.022.213.03
Time Interval: 0,5 – 60 seconds, Type A, Connection S1
1.022.213.04
Time Interval: 30 – 900 seconds, Type A, Connection S1
1.022.213.05
Time Interval: 0,5 – 4000 seconds, Type A, Connection S1
1.022.216.xx
Individual delay time, Type B, Connection S2
1.022.216.01
Time Interval: 0,5 – 5 seconds, Type B, Connection S2
1.022.216.02
Time Interval: 1 – 30 seconds, Type B, Connection S2
1.022.216.03
Time Interval: 0,5 – 60 seconds, Type B, Connection S2
1.022.216.04
Time Interval: 30 – 900 seconds, Type B, Connection S2
1.022.216.05
Time Interval: 0,5 – 4000 Seconds, Type B, Connection S2
1.022.211.xx
Individual delay time, Type D, Connection S4
1.022.211.01
Time Interval: 0,5 – 5 seconds, Type D, Connection S4
1.022.211.02
Time Interval: 1 – 30 seconds, Type D, Connection S4
1.022.211.03
Time Interval: 0,5 – 60 seconds, Type D, Connection S4
1.022.211.04
Time Interval: 30 – 900 seconds, Type D, Connection S4
1.022.211.05
Time Interval: 0,5 – 4000 seconds, Type D, Connection S4
