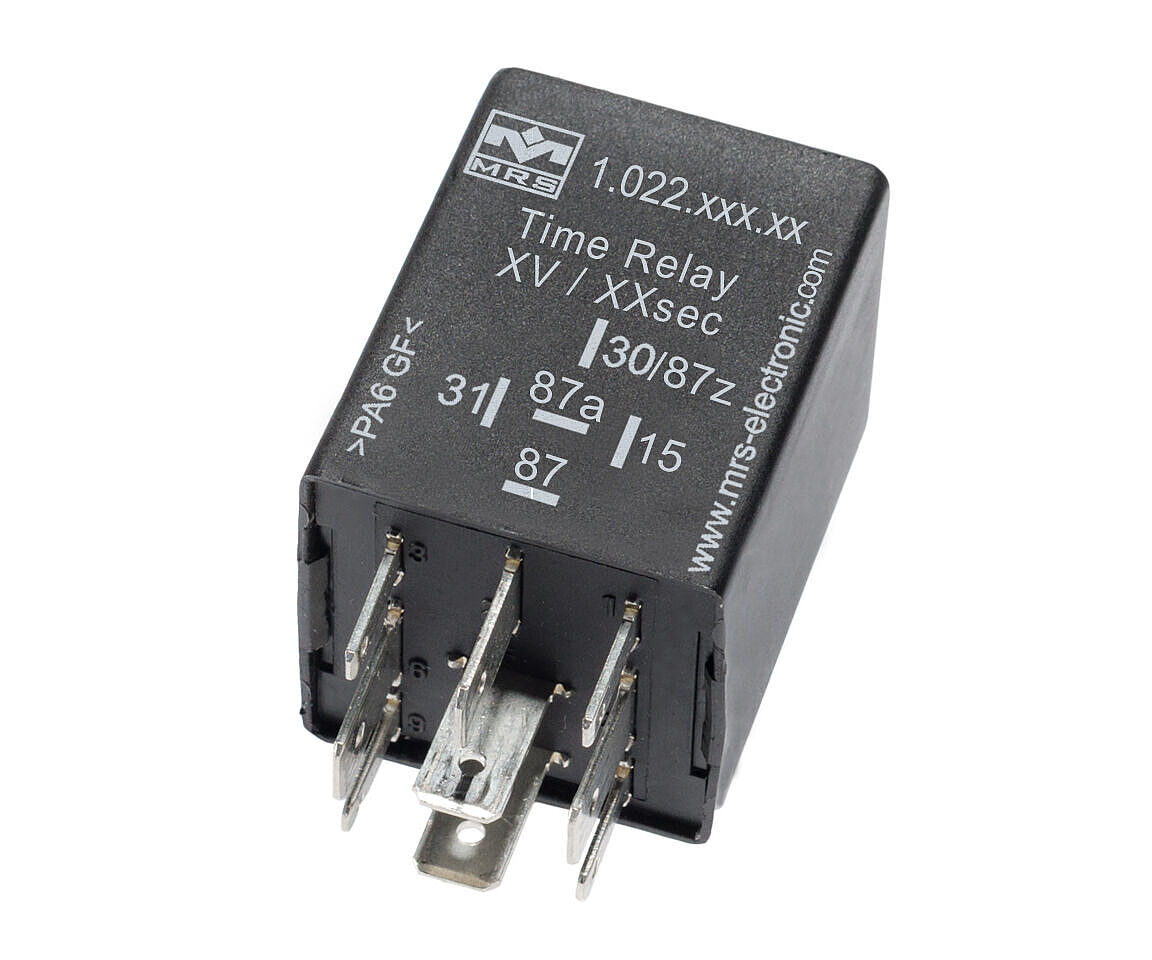

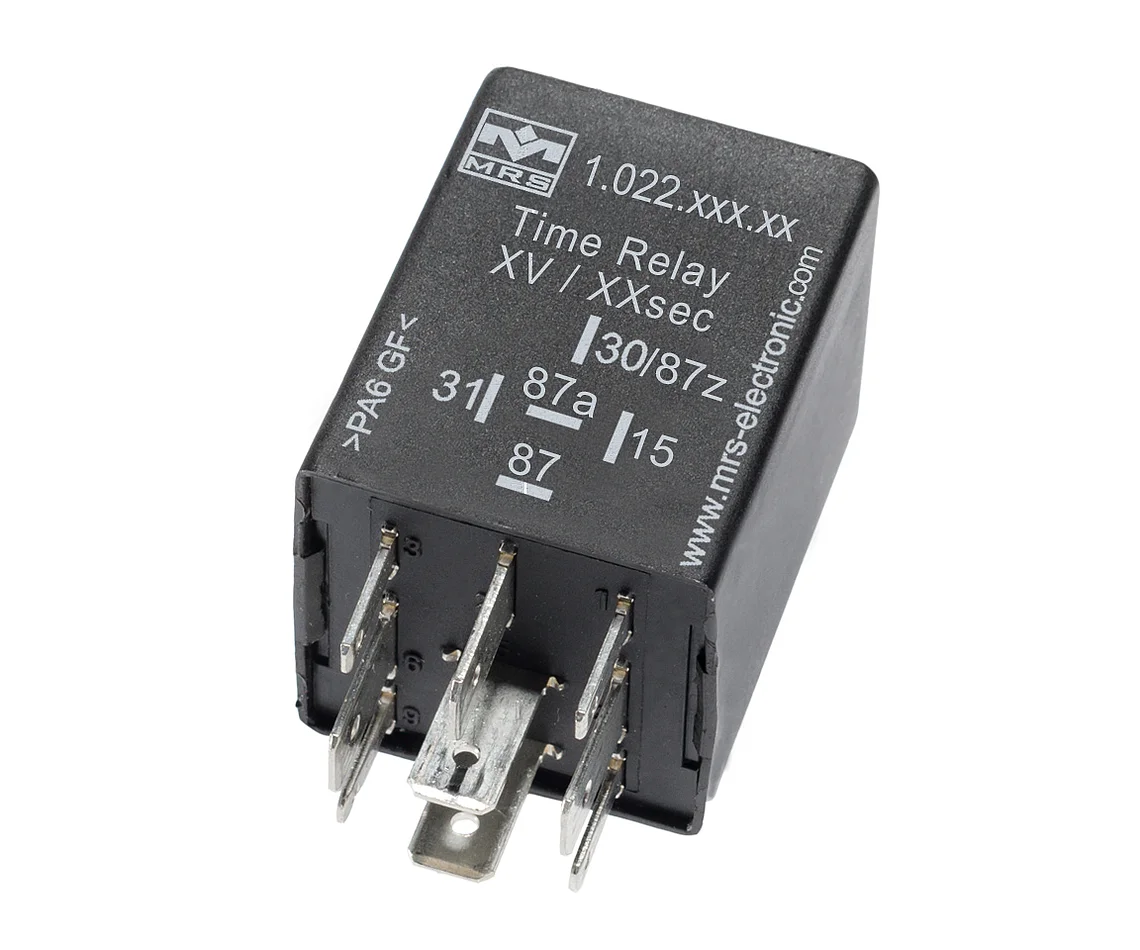

Time Relay SW on Delay adjust 12 V

go to order options

With time relays adjustable the exact delay time can be set via potentiometer within the selected time range. You can choose from five time ranges by default (see table). We realize other time ranges on request. Please specify the desired time range when ordering

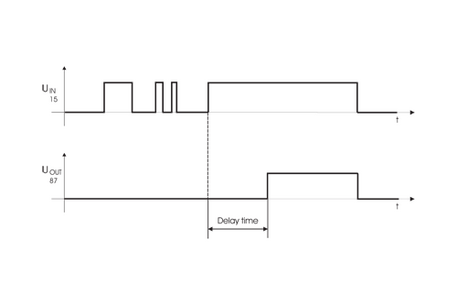

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will move on after the set time has elapsed. If the voltage is removed at Terminal 15, the relay drops off immediately. Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. Housing forms can be found in the section housing and basic body.

Downloads
Technical details

Inputs and Outputs

Number of pins 5
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1
Switching current NO 15 A / NC 5 A

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm
Switching cycles 100000

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 10-16 V
Current consumption 0.3 mA
Order options
Order no.Name
1.022.112.xx
Individual delay time, Type A, Connection S1
1.022.112.01
Time Interval: 0,5 – 5 seconds, Type A, Connection S1
1.022.112.02
Time Interval: 1 – 30 seconds, Type A, Connection S1
1.022.112.03
Time Interval: 0,5 – 60 seconds, Type A, Connection S1
1.022.112.04
Time Interval: 30 – 900 seconds, Type A, Connection S1
1.022.112.05
Time Interval: 0,5 – 4000 seconds, Type A, Connection S1
1.022.​110.xx
Individual delay time, Type A, Connection S1
1.022.110.01
Time Interval: 0,5 – 5 seconds, Type C, Connection S3
1.022.110.02
Time Interval: 1 – 30 seconds, Type C, Connection S3
1.022.110.03
Time Interval: 0,5 – 60 seconds, Type C, Connection S3
1.022.110.04
Time Interval: 30 – 900 seconds, Type C, Connection S3
1.022.110.05
Time Interval: 0,5 – 4000 seconds, Type C, Connection S3
