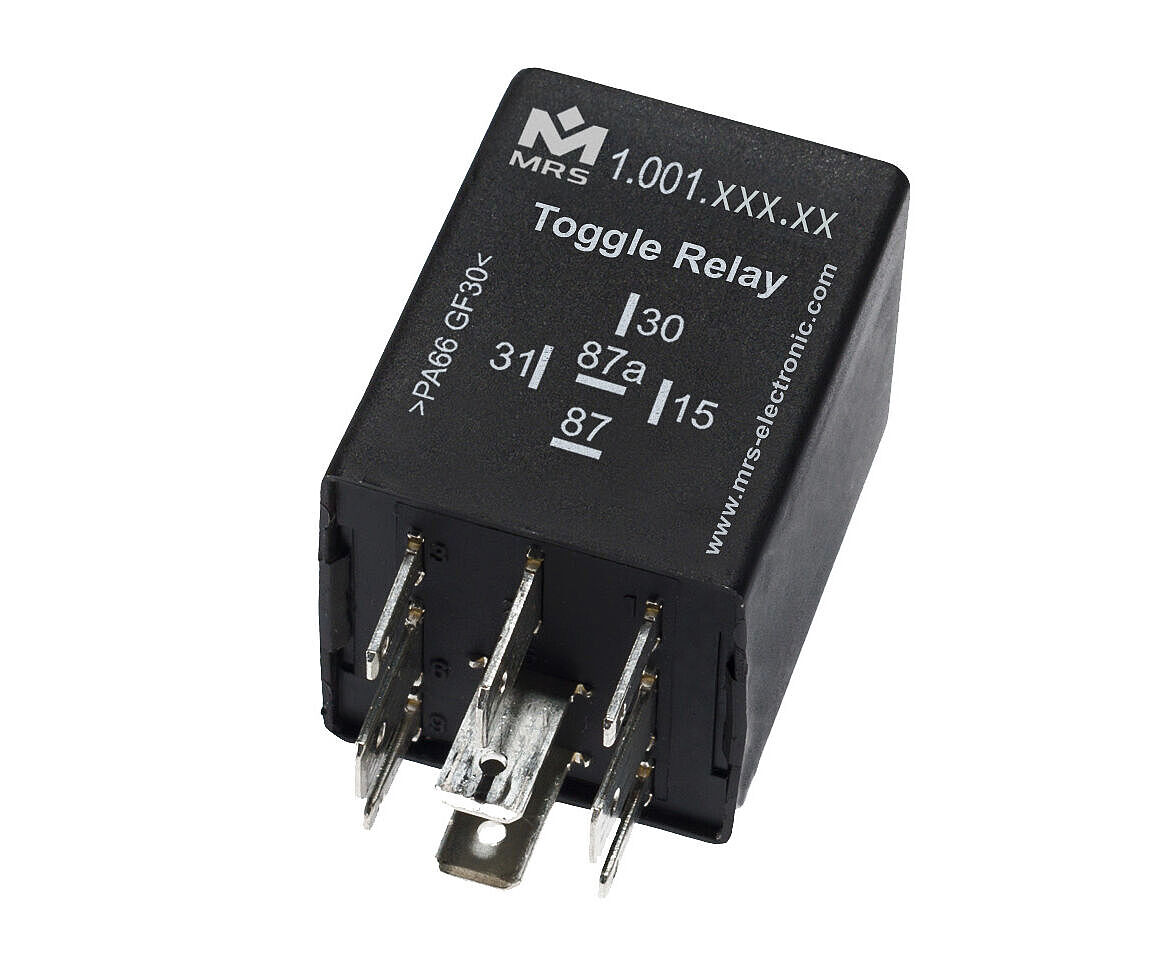

Toggle Relay 12 V

go to order options

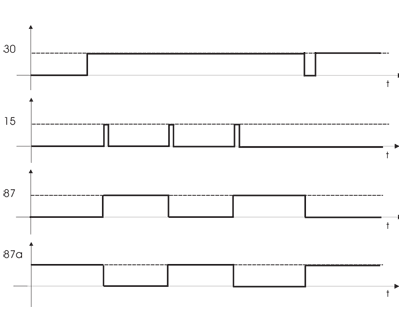

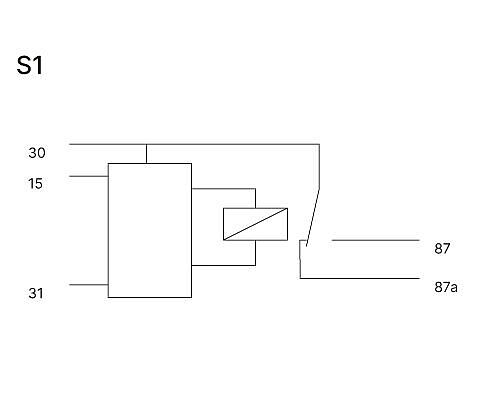

The application area of toggle relays is the switching on and off of loads via push-button operation. With the toggle relay a load can be switched by a push button. If a pulse is detected at terminal 15, the relay switches and holds itself. With a further impulse it switches again. (toggle switch or toggle flip-flop). Terminal 15 is debounced. For housing types see chapter housing and base body. These toggle relays are not programmable.

Downloads
Technical details

Inputs and Outputs

Number of pins 5
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1
Switching current NC 20 A / NO 20 A

Mechanical Properties

IP rating up to IP6K8

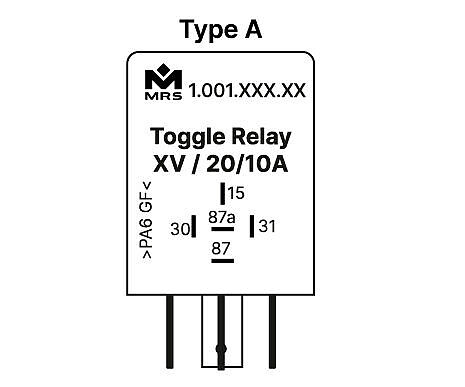

Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

General Information

Temperature range -40 to +85°C
Operating voltage 9-16 V
Current consumption NO 10 mA / NC 120 mA

Markings

Order options
Order no.Name
1.001.100.01
20/20A KL 15 positive switching
1.001.102.01
20/20A KL 15 ground switching
