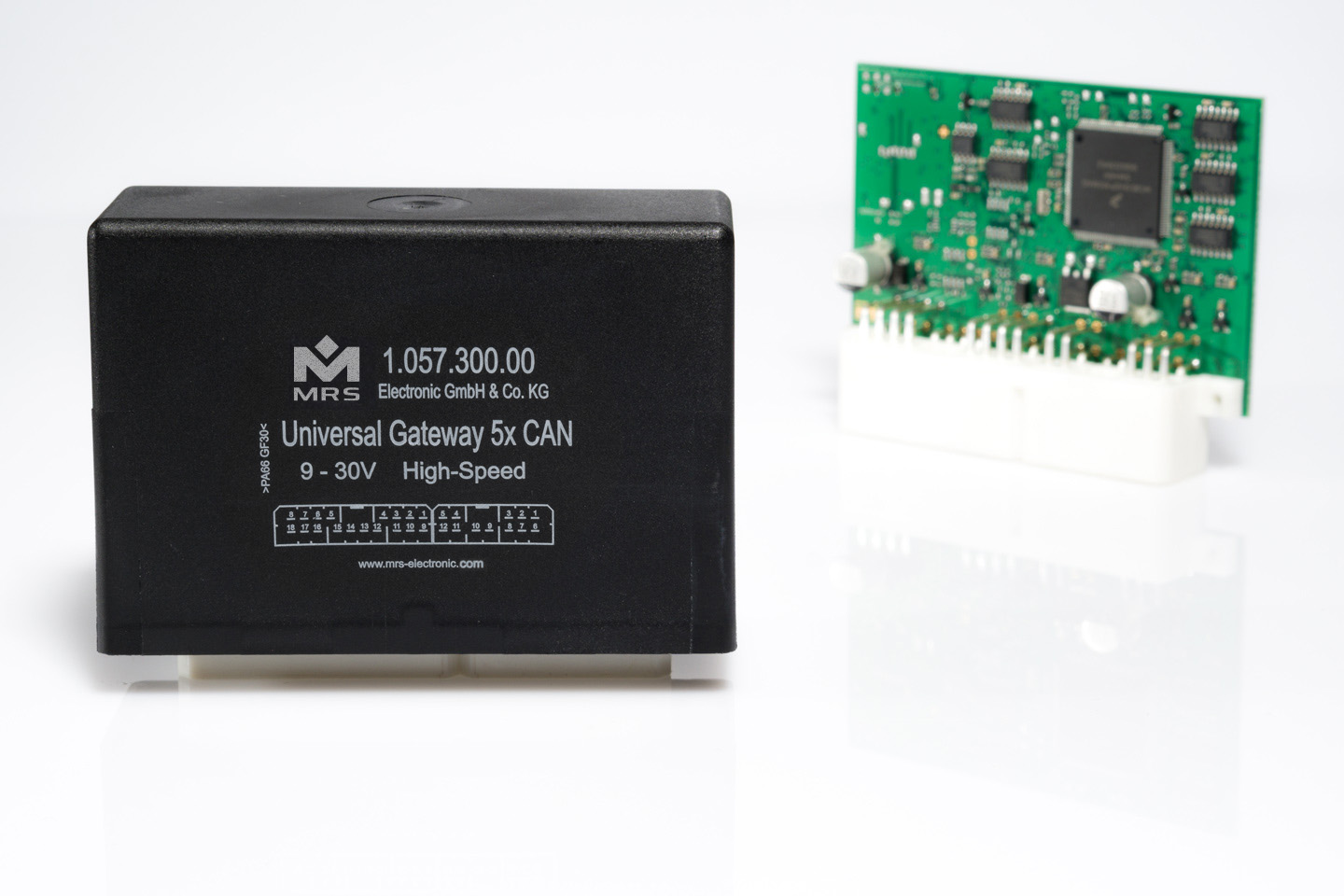

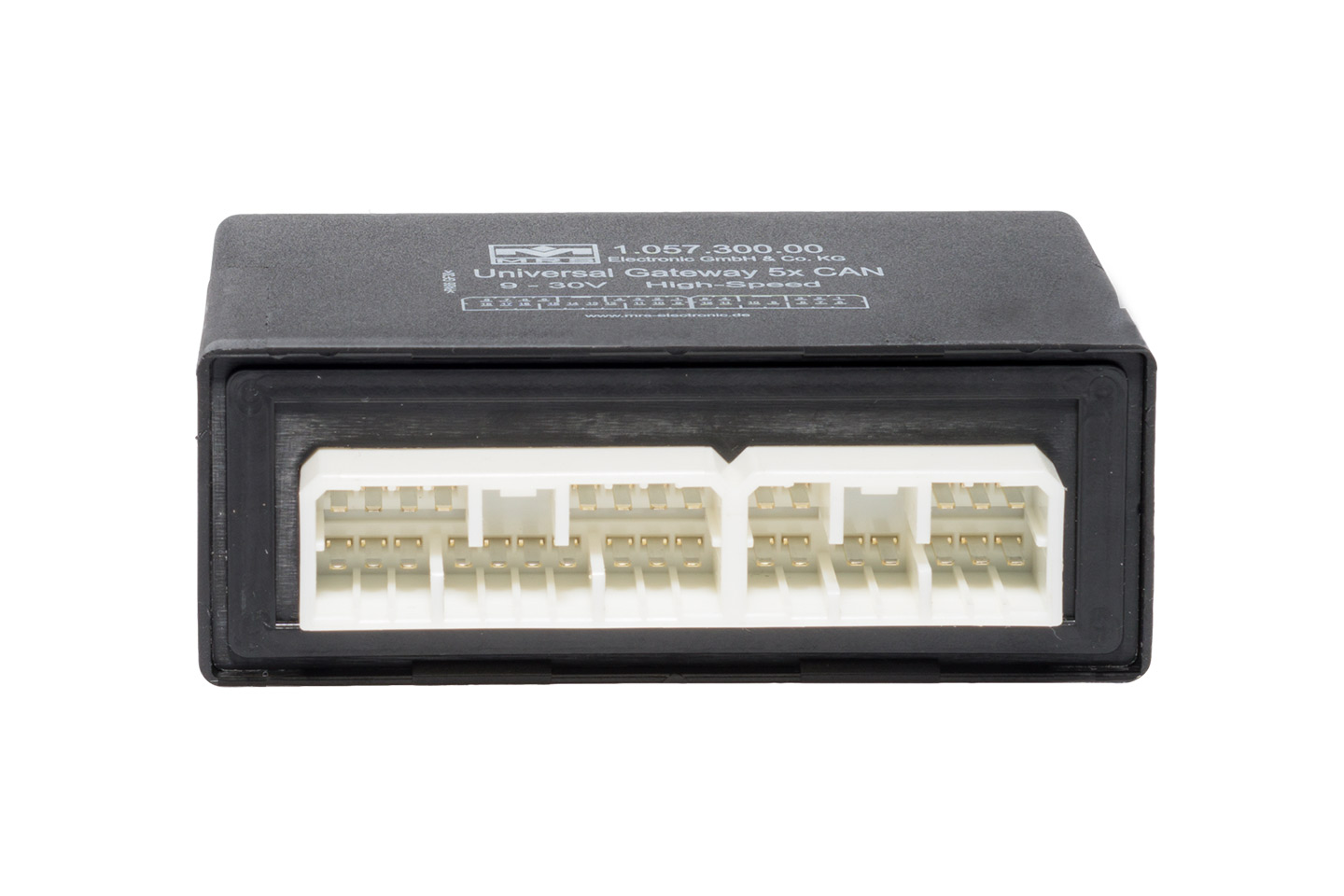

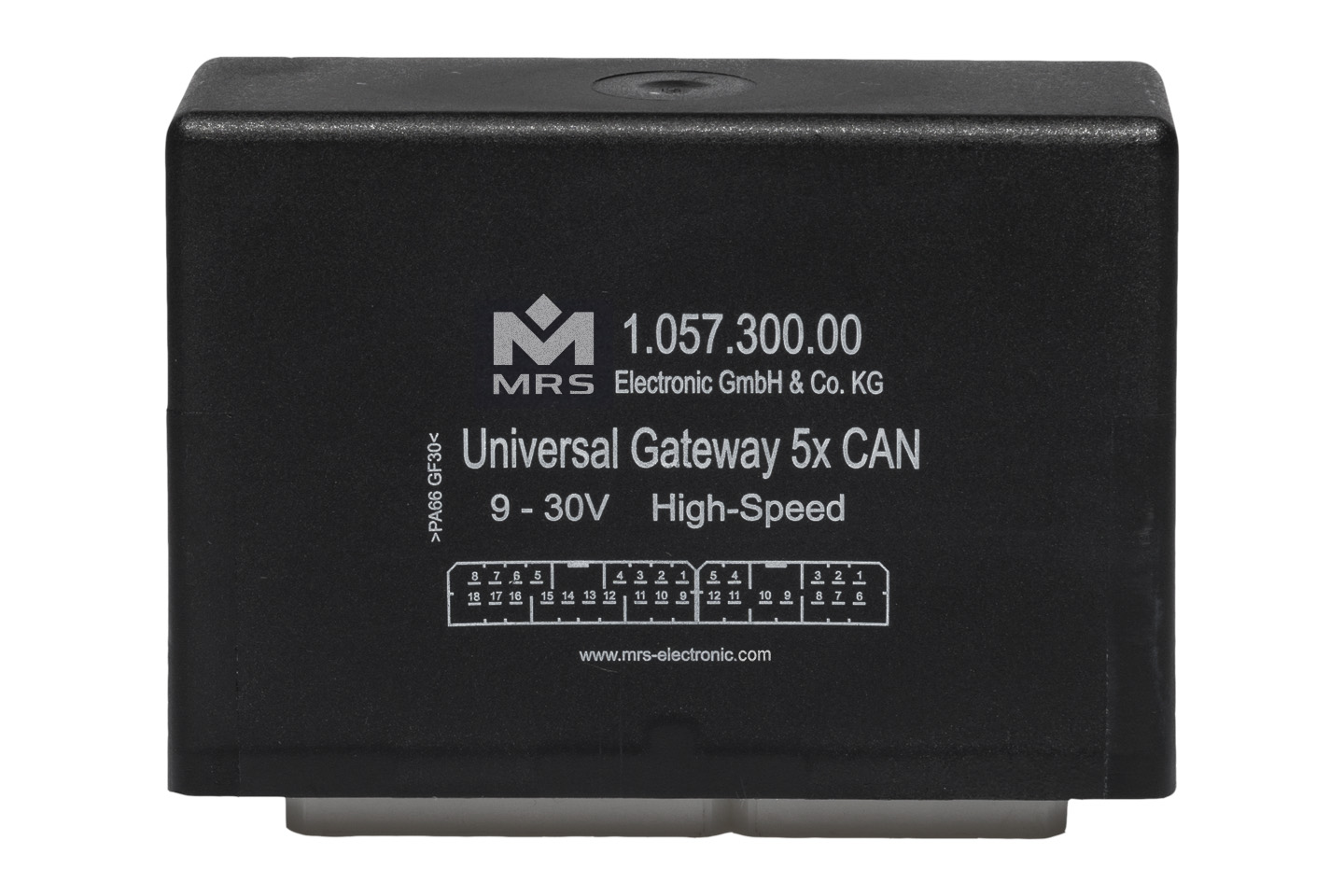

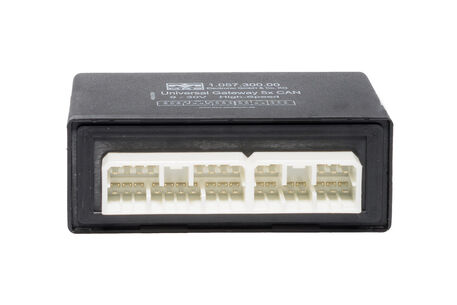

Universal Gateway 5x CAN

go to order options

The Universal Gateway 5x Can by MRS allows data exchange between CAN-Bus systems. The open and flexible design, tailored to automotive applications, allows a quick adaptation to customer-specific requirements even for small quantities.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

Number of pins 30
In-/Outputs (total) 9
Inputs (total) 5
Inputs (analog) 1
Inputs (digital) 4
Outputs (total) 4
Outputs (digital) 4
Switching current 2.5 A

Interfaces

CAN interface(s) 5

Mechanical Properties

IP rating IP54
Housing material PA66GF30
Dimensions 95 × 65 × 35 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 50 mA
Quiescent current (12V) 150 µA
Quiescent current (24V) 180 µA
Processor architecture 16 bit

Certifications

Order options
Order no.Name
1.057.300.0000
Housing without side-flaps
1.057.300.0303
without CAN WU, Wake-up via KL15, without CAN Wake Up
1.057.300.0203

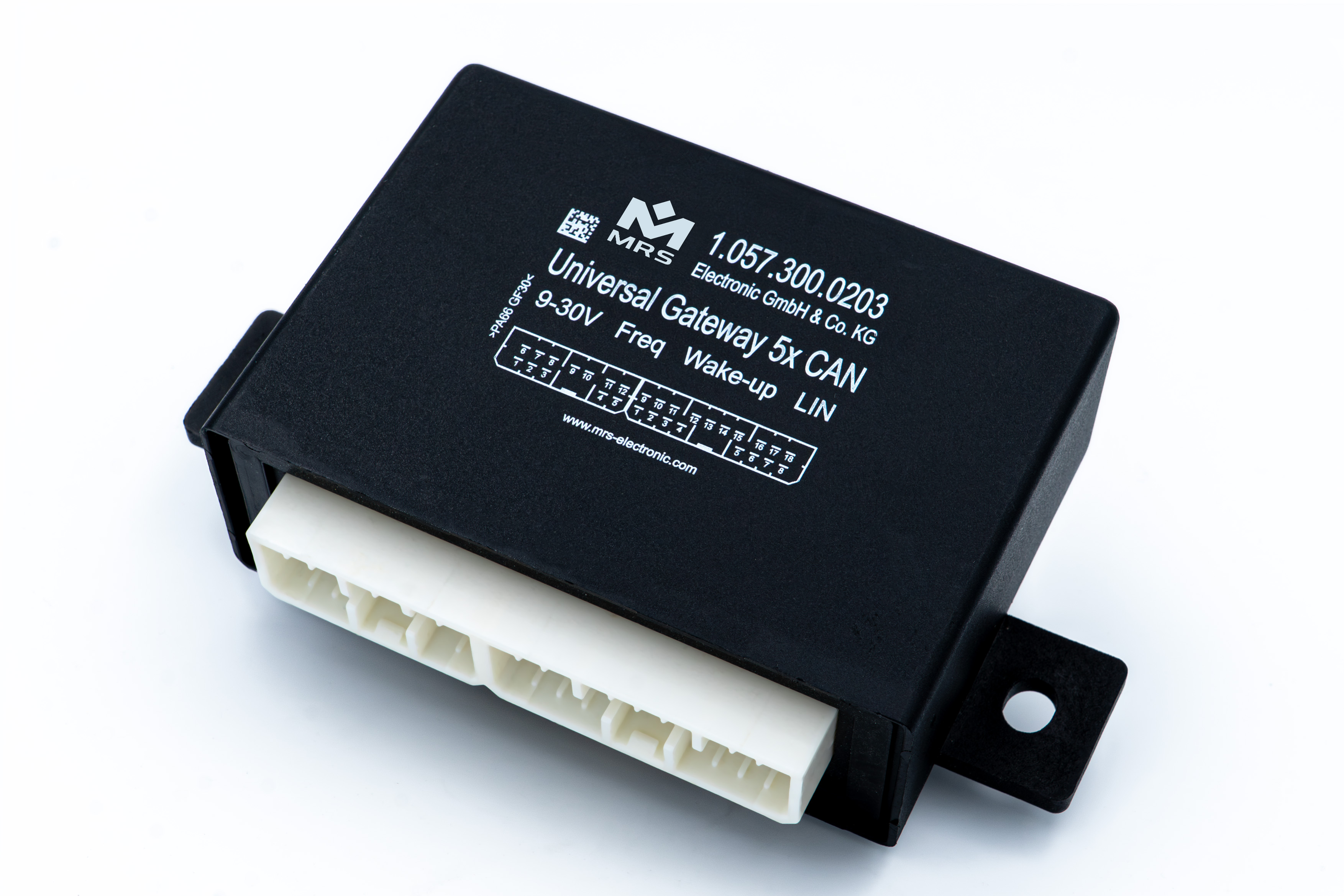

FREQ + CAN-WU + LIN, With frequency inputs and LIN, CAN Wake Up
