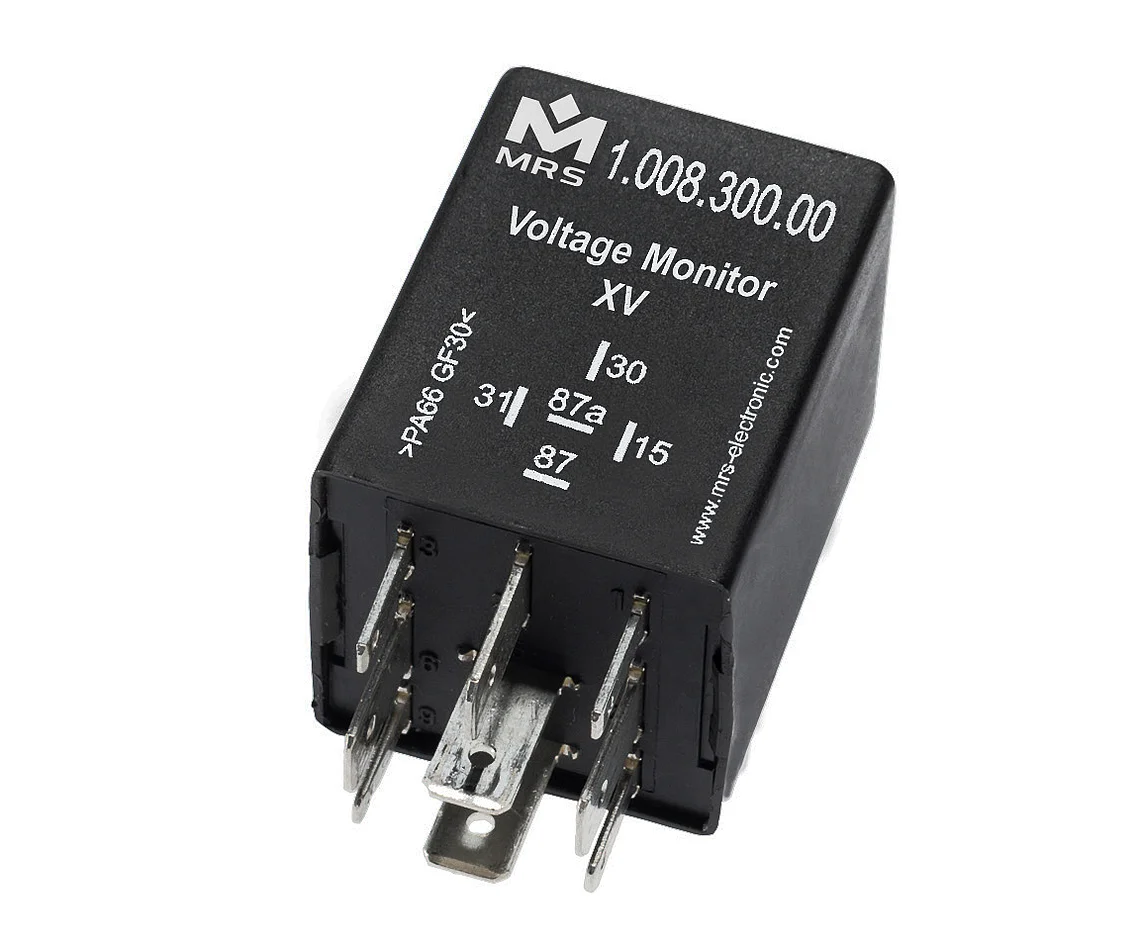

Voltage Monitor 12 V
go to order options (10081x)
The voltage monitor switches loads off when the voltage signal connected to terminal 15 drops below or exceeds a lower/upper threshold voltage. The standard lower/upper threshold voltages for 12 V applications are 11.5 V/12.5 V and 23 V/24 V for 24 V applications. Lower/upper threshold voltages can be customized on request.

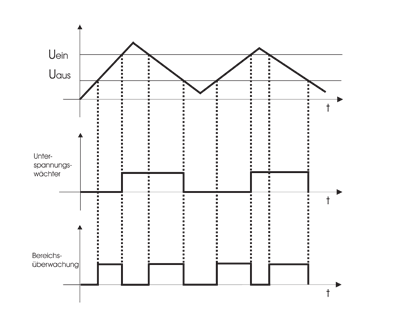

In addition, combinations with switch-on/switch-off time delay are available. The voltage range monitor switches loads off when the voltage signal connected to terminal 15 drops below or exceeds a lower/upper threshold voltage and switches loads on again when the supply voltage enters the defined threshold voltage range. Please refer to the chapter housing and base plates for additional housing options.
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (analog) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NC 15 A / NO 5 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
| Switching cycles | 50000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 10-16 V |
| Current consumption | 0.3 mA |
Markings
Order options

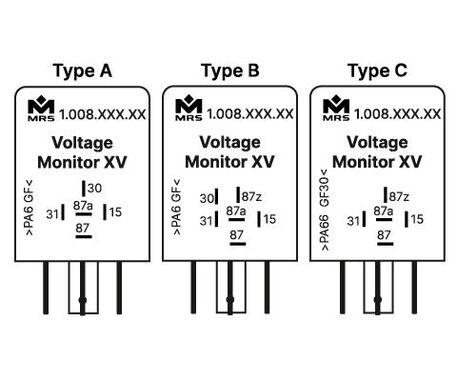

| Order no. | Name |
|---|---|
| 1.008.100.xx (1008100xx) |

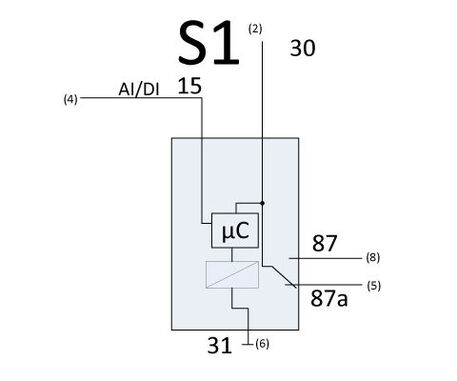

Undervoltage monitor according to customer requirements 11.5 V/ 12.5 V, Type A, Connection S1
(Undervoltage monitor according to customer requirements 115 V/ 125 V, Type A, Connection S1)
|
| 1.008.126.xx (1008126xx) |
Overvoltage monitor according to customer requirements 11.5 V/ 12.5 V, Type A, Connection S1
(Overvoltage monitor according to customer requirements 115 V/ 125 V, Type A, Connection S1)
|
| 1.008.156.xx (1008156xx) |
Range monitoring according to customer requirements 11.5 V/ 12.5 V, Type B, Connection S2
(Range monitoring according to customer requirements 115 V/ 125 V, Type B, Connection S2)
|
| 1.008.127.xx (1008127xx) |
Area monitoring according to customer requirements, Type A, Connection S1
|
| 1.008.150.xx (1008150xx) |
Area monitoring according to customer requirements, Type B, Connection S2
|
