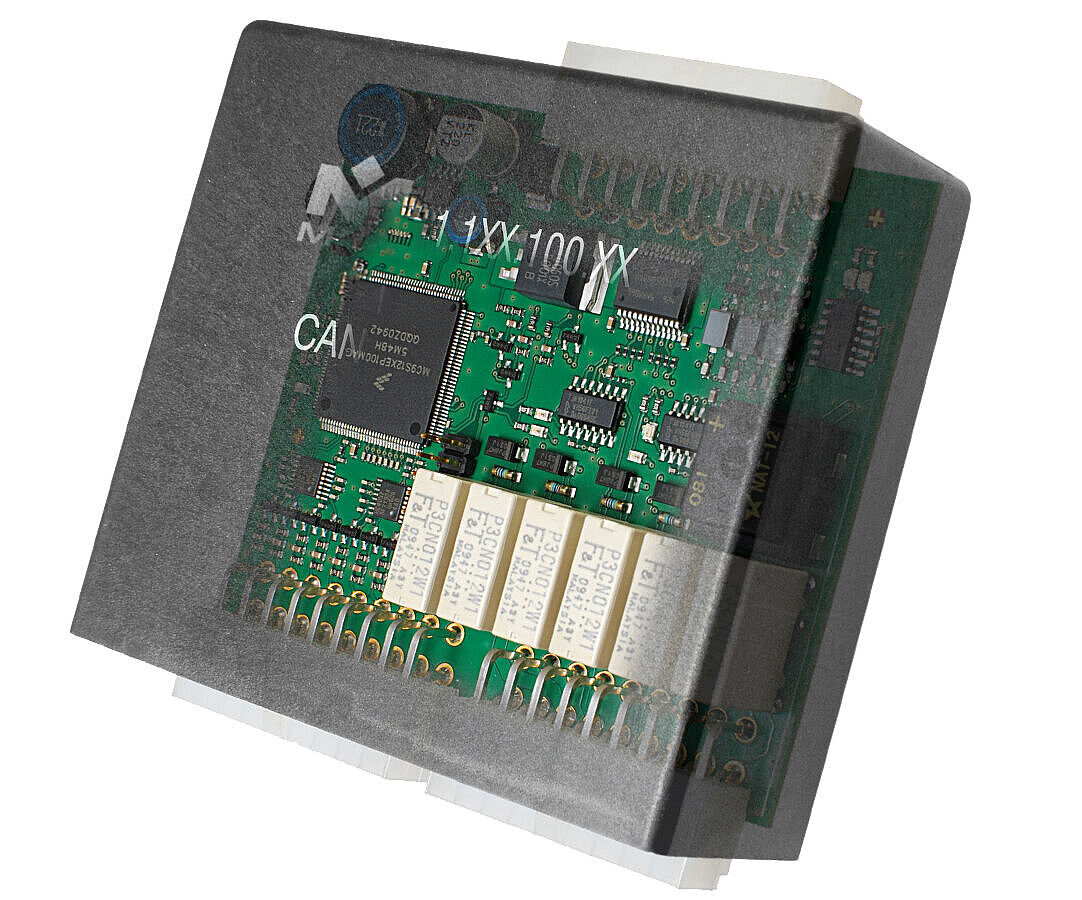

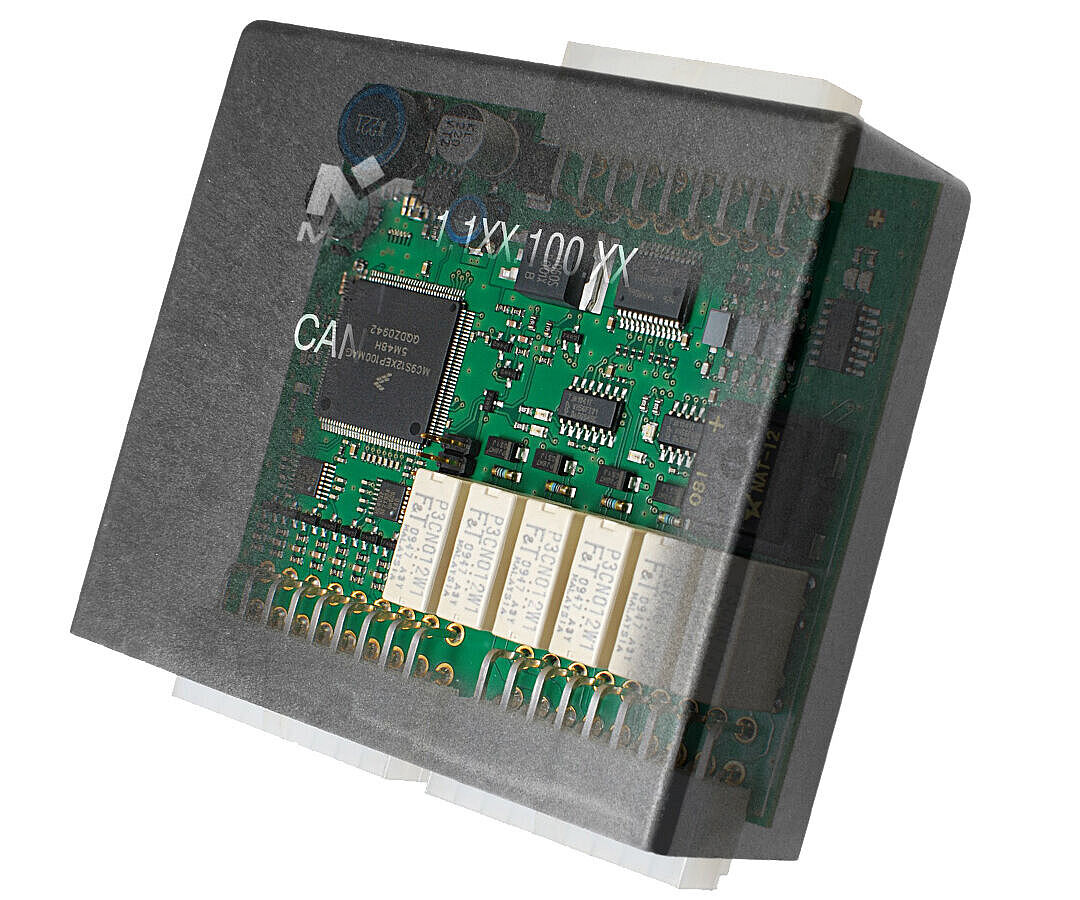

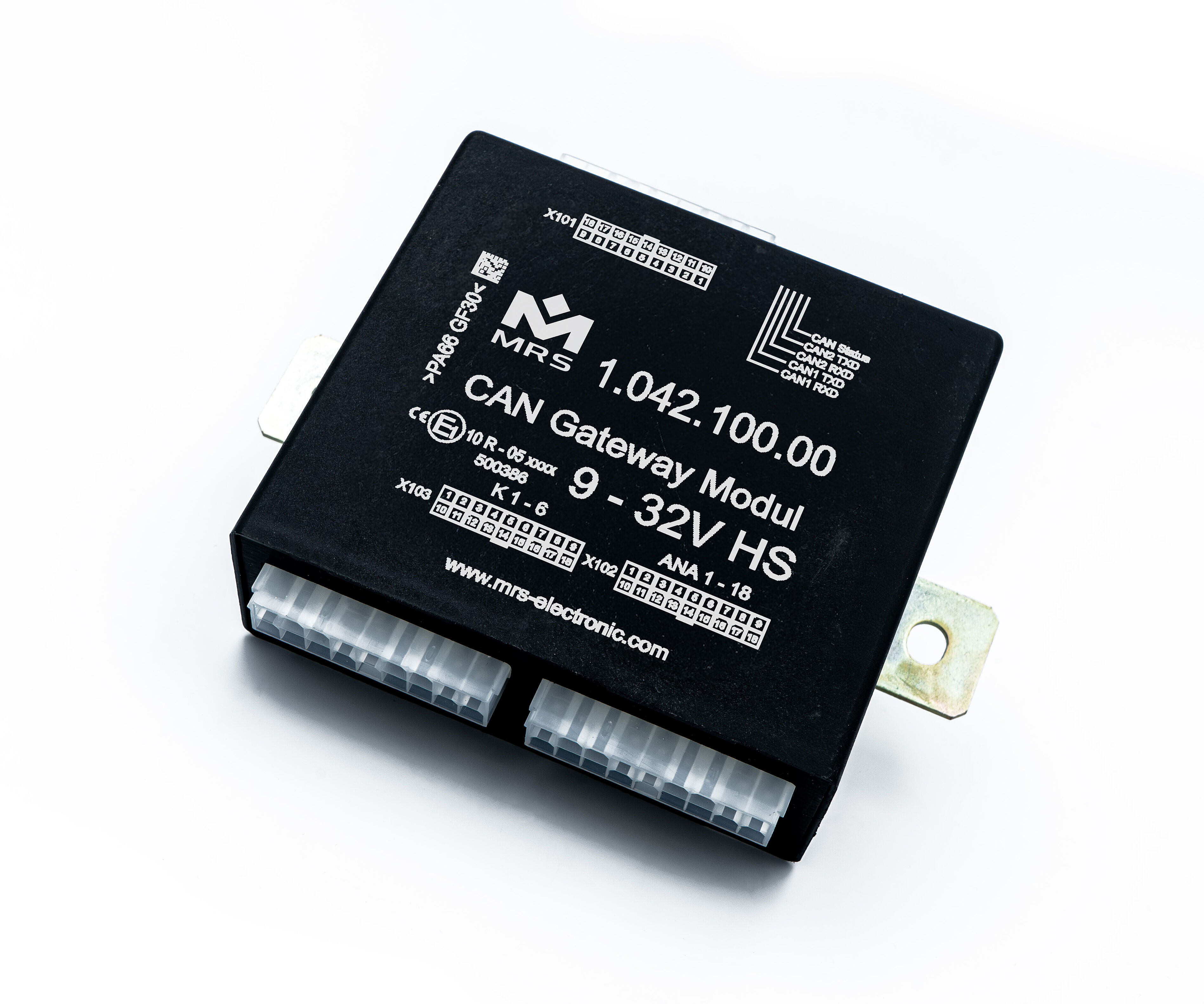

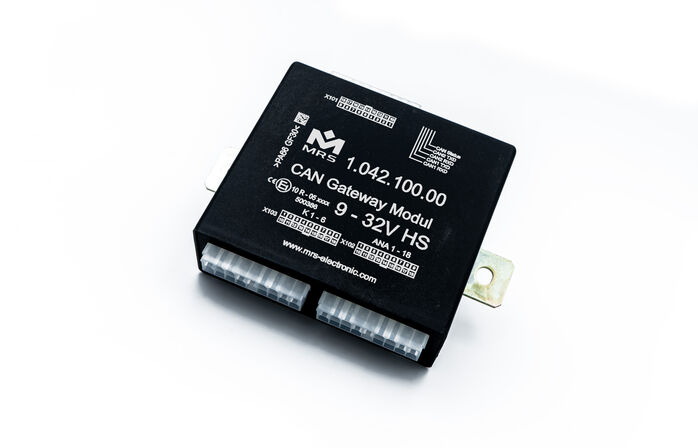

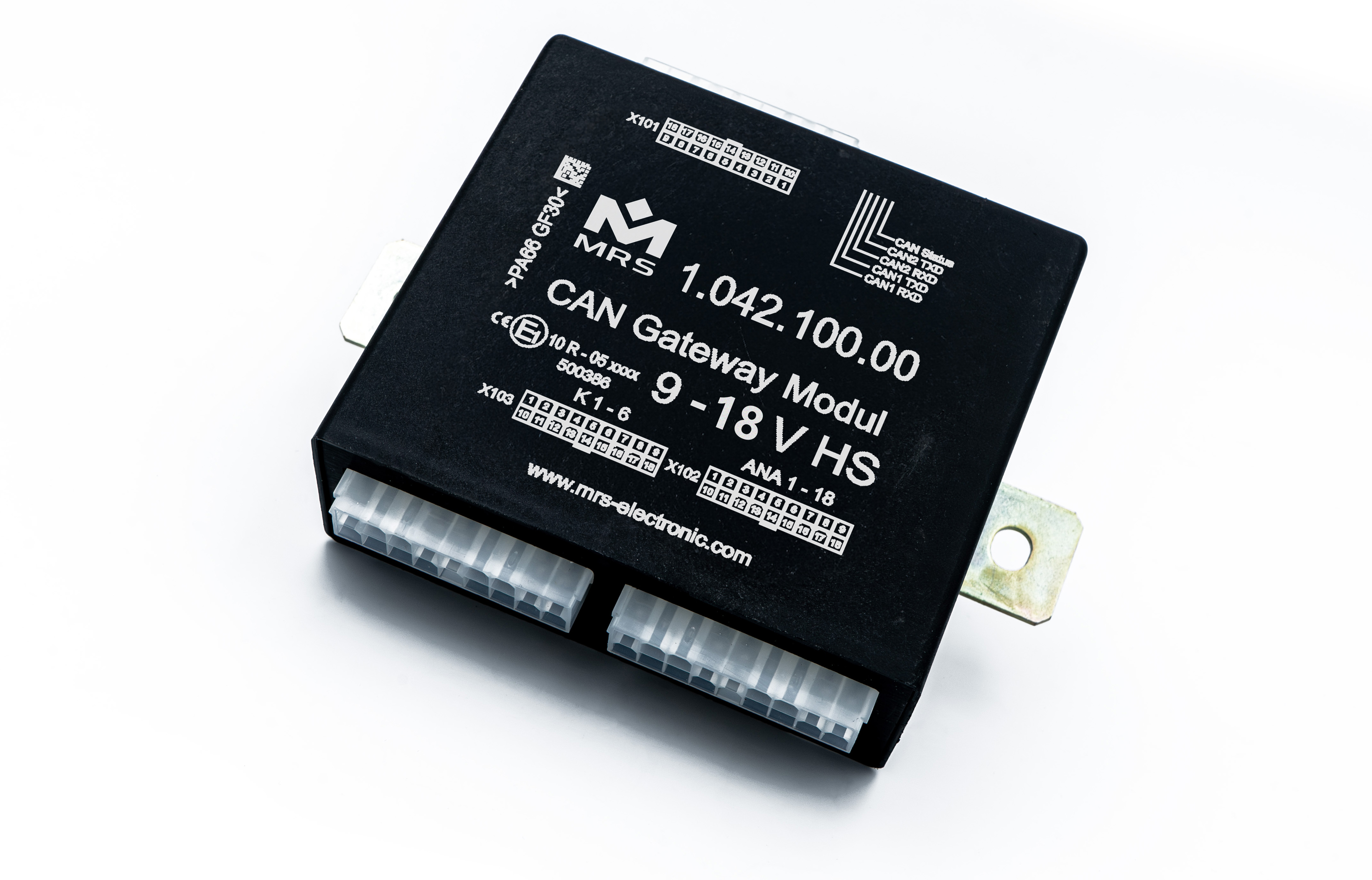

CAN Gateway Module

go to order options

The compact car-compatible can gateway module with PLC function is used for the simple expansion of existing vehicle functions with low wiring requirements. It is freely programmable and equipped with 3 can interfaces.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

Number of pins 54
In-/Outputs (total) 30
Inputs (total) 20
Inputs (analog) 20
Outputs (total) 10
Outputs (digital) 4
Relay outputs 6
Switching current 3 A

Interfaces

CAN interface(s) 3

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 89 × 95 × 35 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-18 V
Current consumption 31.6 mA
Quiescent current (12V) 300 µA
Processor architecture 16 bit

Certifications

Order options
Order no.Name
1.042.100.00
3x high-speed
1.042.110.00
2x low-speed, 1 x high-speed
