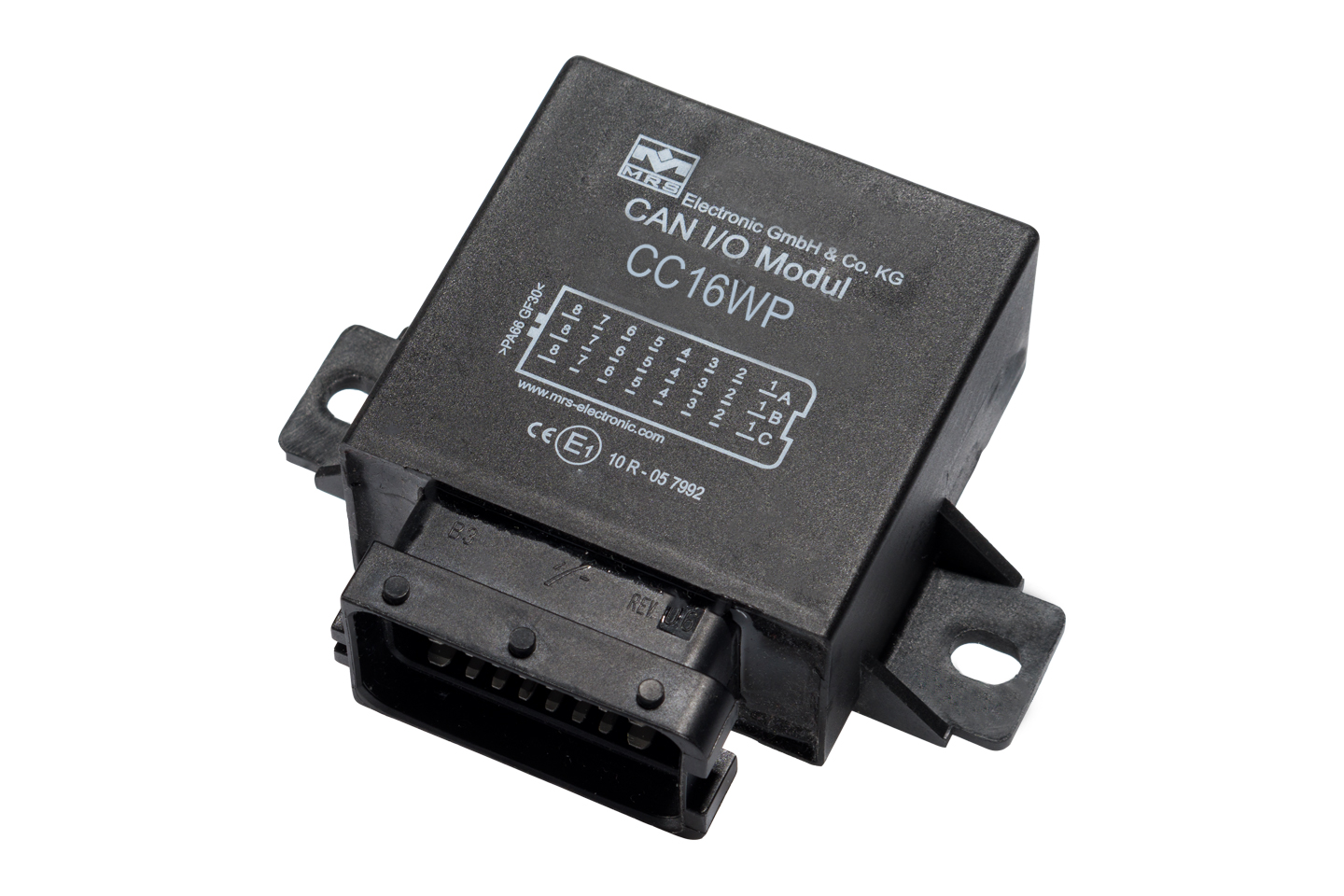

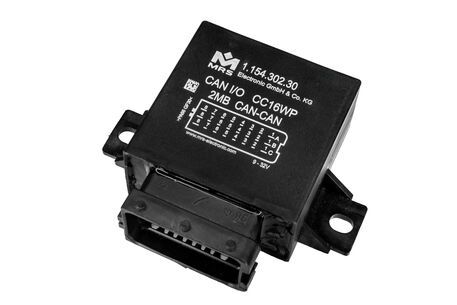

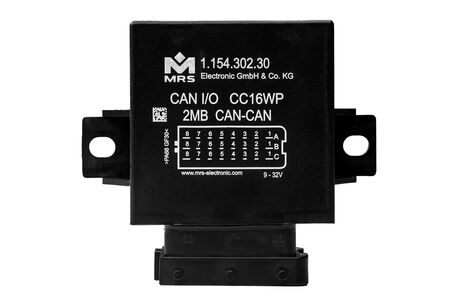

CAN I/O – CC16WP

go to order options

The CC16WP is the best CAN I/O generation from MRS Electronic. The core piece, the 32-bit processor, provides you with more processing power and thus faster computing cycle times. You also benefit from more powerful gateway functionality and complex programming options for your applications. Due to the enormously high flexibility of the multifunction inputs, the CAN I/O is ideally equipped for a wide variety of cross-sector applications.

Overall, the CC16WP offers maximum application flexibility in the smallest installation spaces to achieve applications cost-effectively and efficiently. The high protection class IP6K8 can still be achieved with correct installation position. The AEF-certified order version with a 2 MB flash memory is also compatible with different ISOBUS stacks and can communicate with other linked components such as terminals or implements. The module is also CAN FD capable.

Downloads
Technical details

Inputs and Outputs

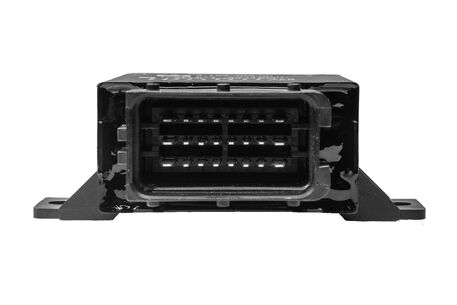

Number of pins 24
In-/Outputs (total) 15
Inputs (total) 7
Inputs (analog) 7
I/Os (total) 8
I/Os (Input analog) 8
I/O (Output PWM capable, integrated current measurement INA) 8
Output type high side 8
Switching current 2.5 A

Interfaces

CAN interface(s) 2
CAN FD interface(s) 1
LIN interface(s) 1
Serial Interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30
Dimensions 60 × 77 × 30 mm

Programming

Programming software MRS Applics Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Quiescent current (12V) 25 µA
Quiescent current (24V) 25 µA
Vref current limit 500 mA
Processor architecture 32 bit

Certifications

Order options
Order no.Name
1.154.300.00
2x CAN
1.154.310.00
1x CAN, 1x LIN
1.154.320.00
1x CAN, 1x RS232
1.154.300.10
2x CAN, Electronics Supply KL15, Load Circuit KL30
1.154.330.00
1x CAN, 2x Digital Inputs
1.154.211.00
1x CAN, 1x LIN with 12V LIN-Level for 24V Supply Voltage
1.154.302.00
2x CAN, 2MB, AEF-certified
