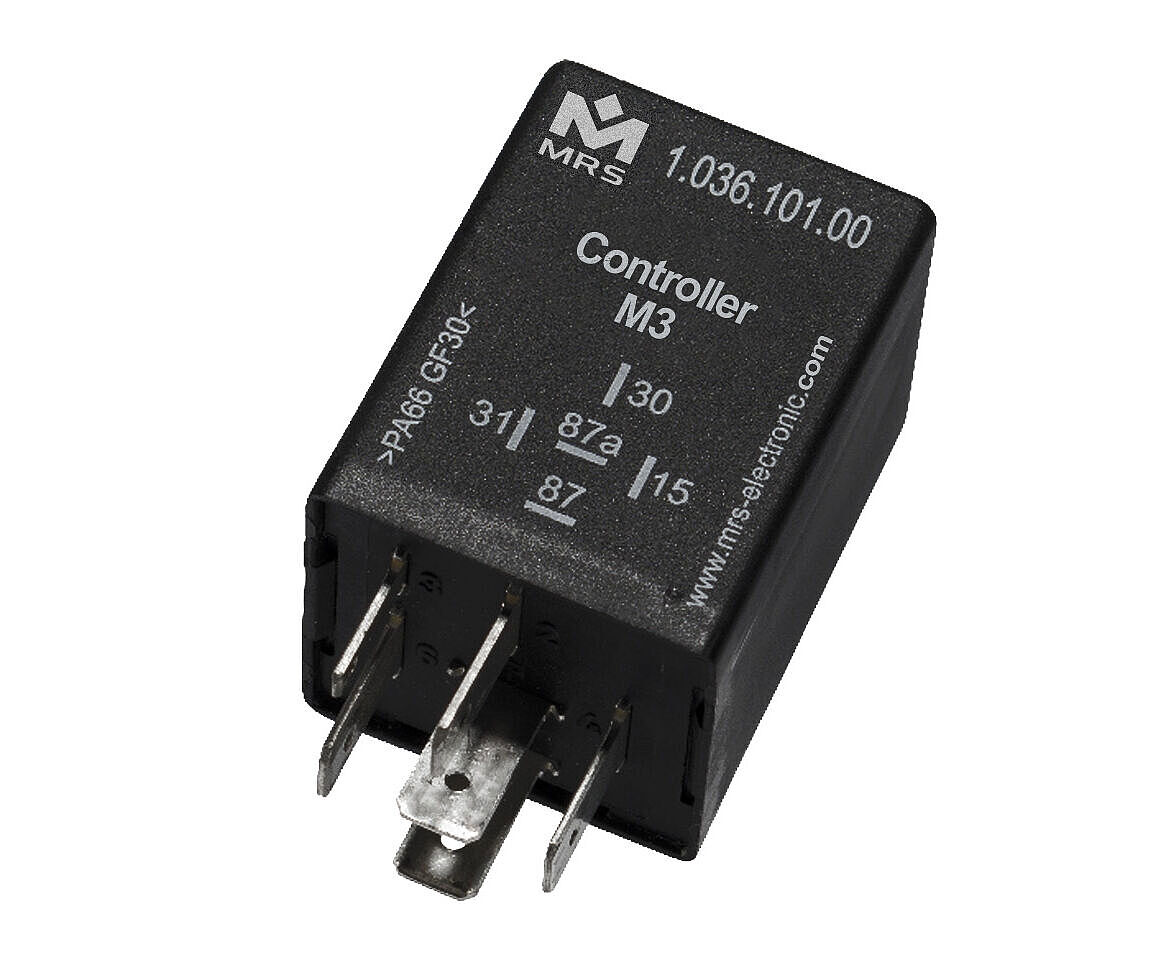

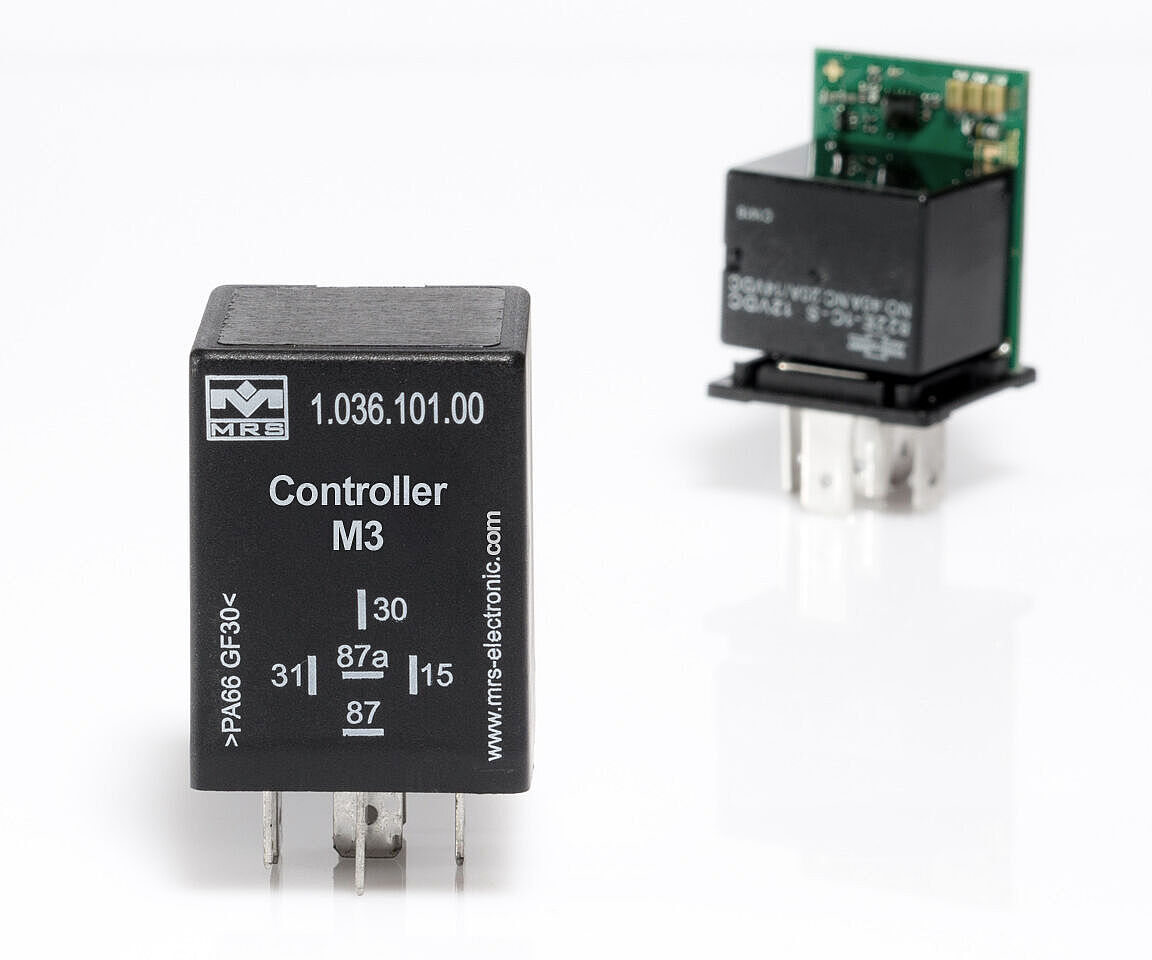

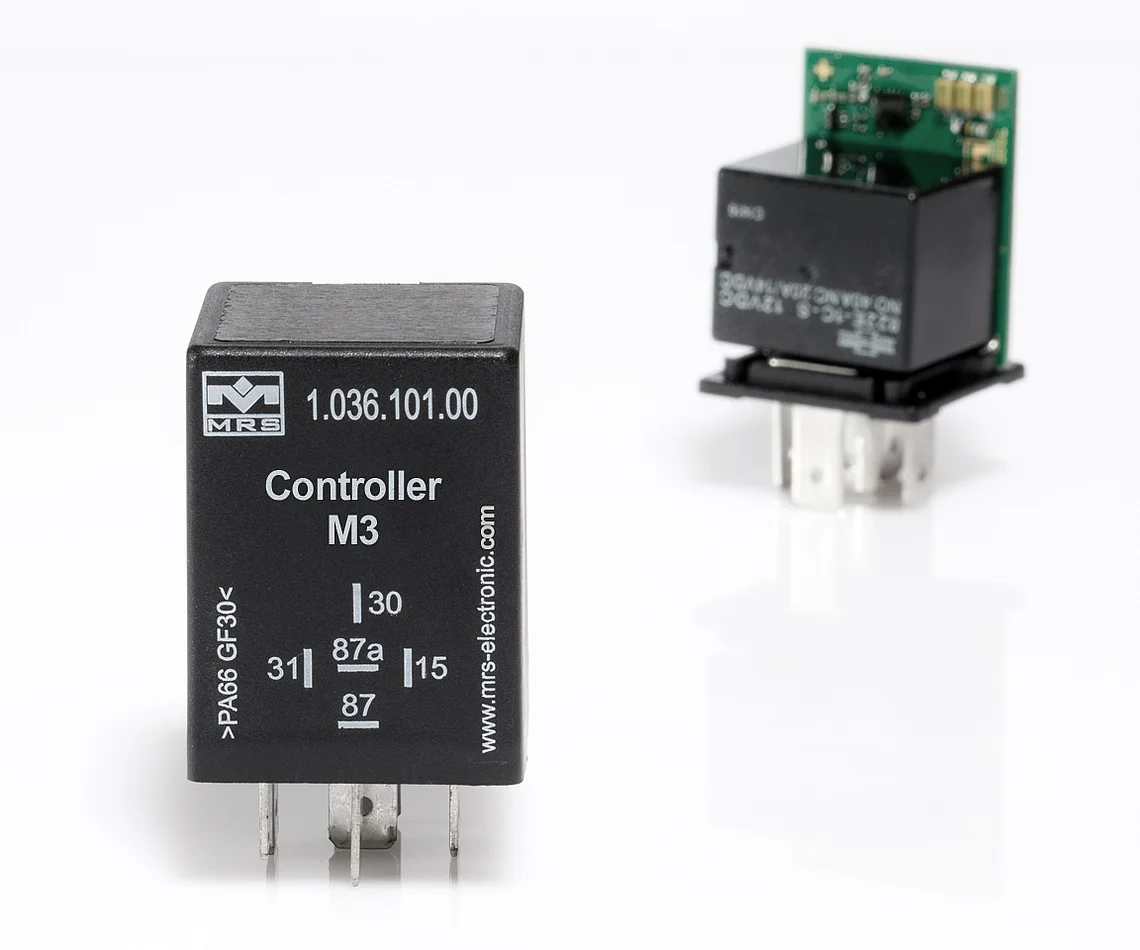

Controller M3 24 V

go to order options

The M3 controller is a powerful and cost-effective controller. In addition to the unprogrammed control M3 there is the control in the programmed versions: Pulse relay, step switch relay, blinker as well as other functions on request. The mentioned functions are stored by default and only have to be configured and parameterized. Of course, all standard functions can also be ordered preset directly from the factory.

Downloads
Technical details

Inputs and Outputs

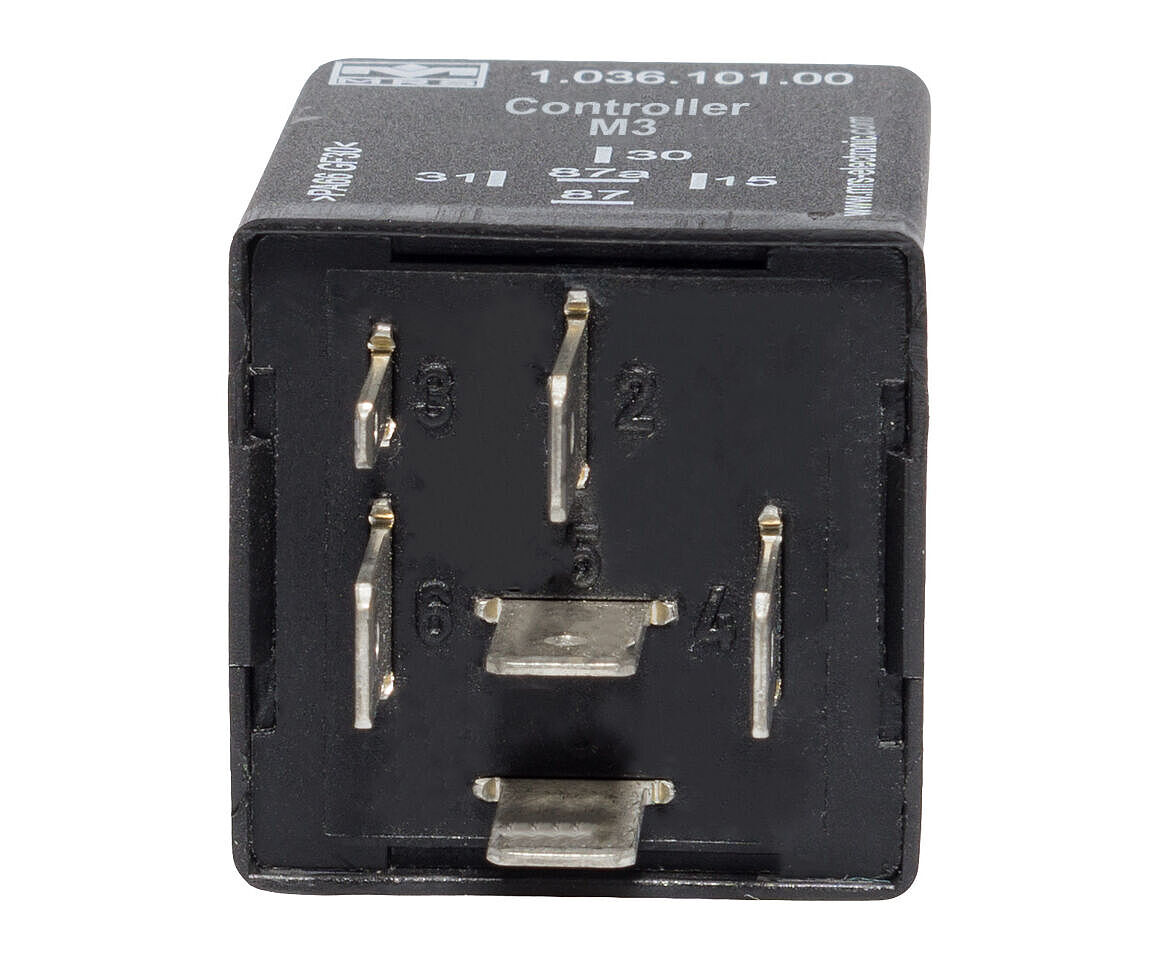

Number of pins 5 / 6
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Relay outputs 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 14-32 V
Processor architecture 16 bit

Certifications

Order options
Order no.Name
1.036.​201.00

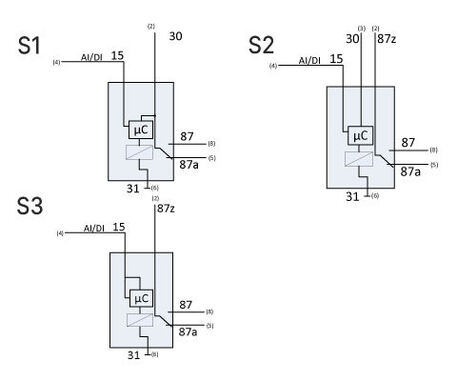

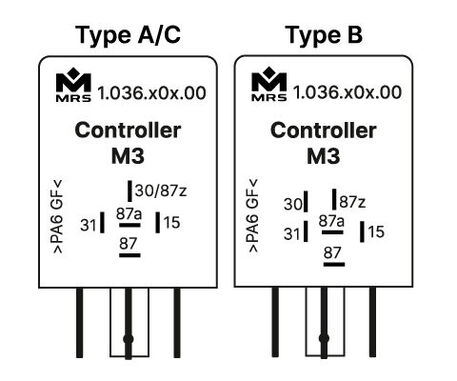

LB1 24V Type A, Connection S1
1.036.202.​00
LB3 24V Type B, Connection S2
1.036.203.​00
LB2 24V Type C, Connection S3
