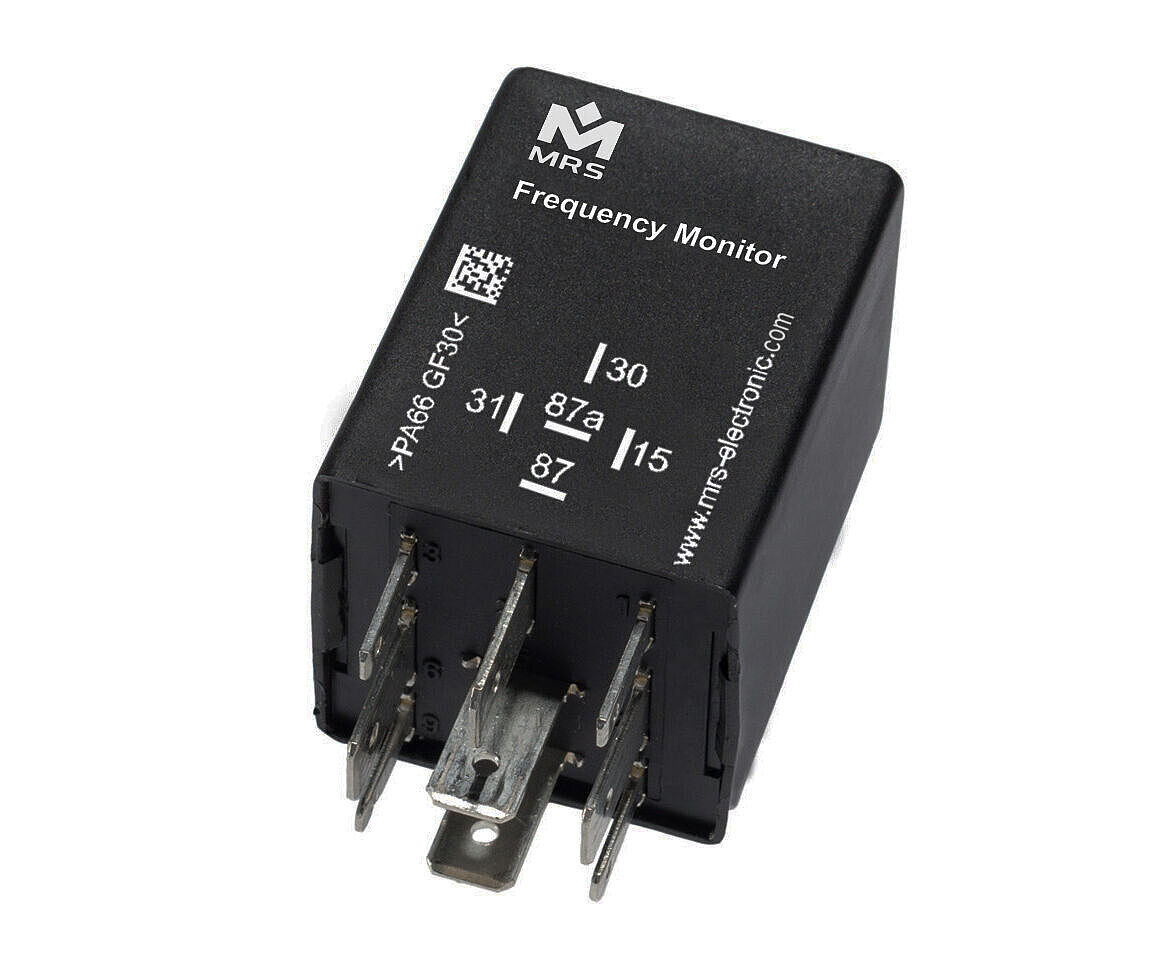

Frequency Monitor 9-30 V

go to order options

The frequency monitor measures the input signal frequency applied to terminal 15 and energizes/deenergizes the output when the signal frequency exceeds/drops below the defined threshold frequency. The threshold frequency can be selected from the 10 - 1.000 Hz frequency range. In addition, combinations including custom delay times are possible. Please refer to the chapter housing and base plates for additional housing options.

Technical details

Inputs and Outputs

Number of pins 5
In-/Outputs (total) 2
Inputs (total) 1
Inputs (digital) 1
Outputs (total) 1
Output type high side 1
Switching current 7.5 A

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 6-32 V

Markings

Order options
Order no.Name
1.026.3x

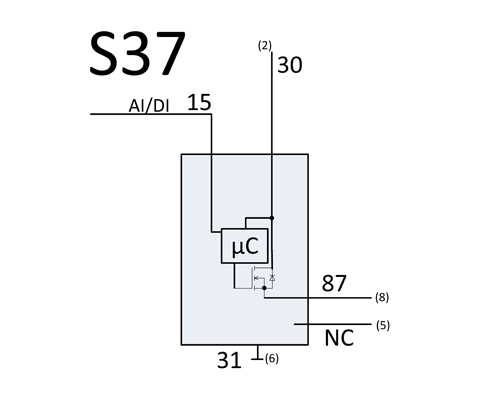

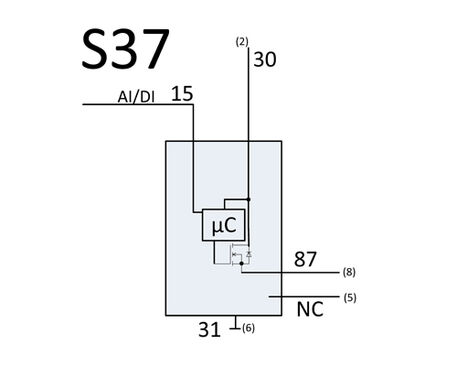

Individual frequency, Connection S37
