M3600 CAN PLC

go to order options

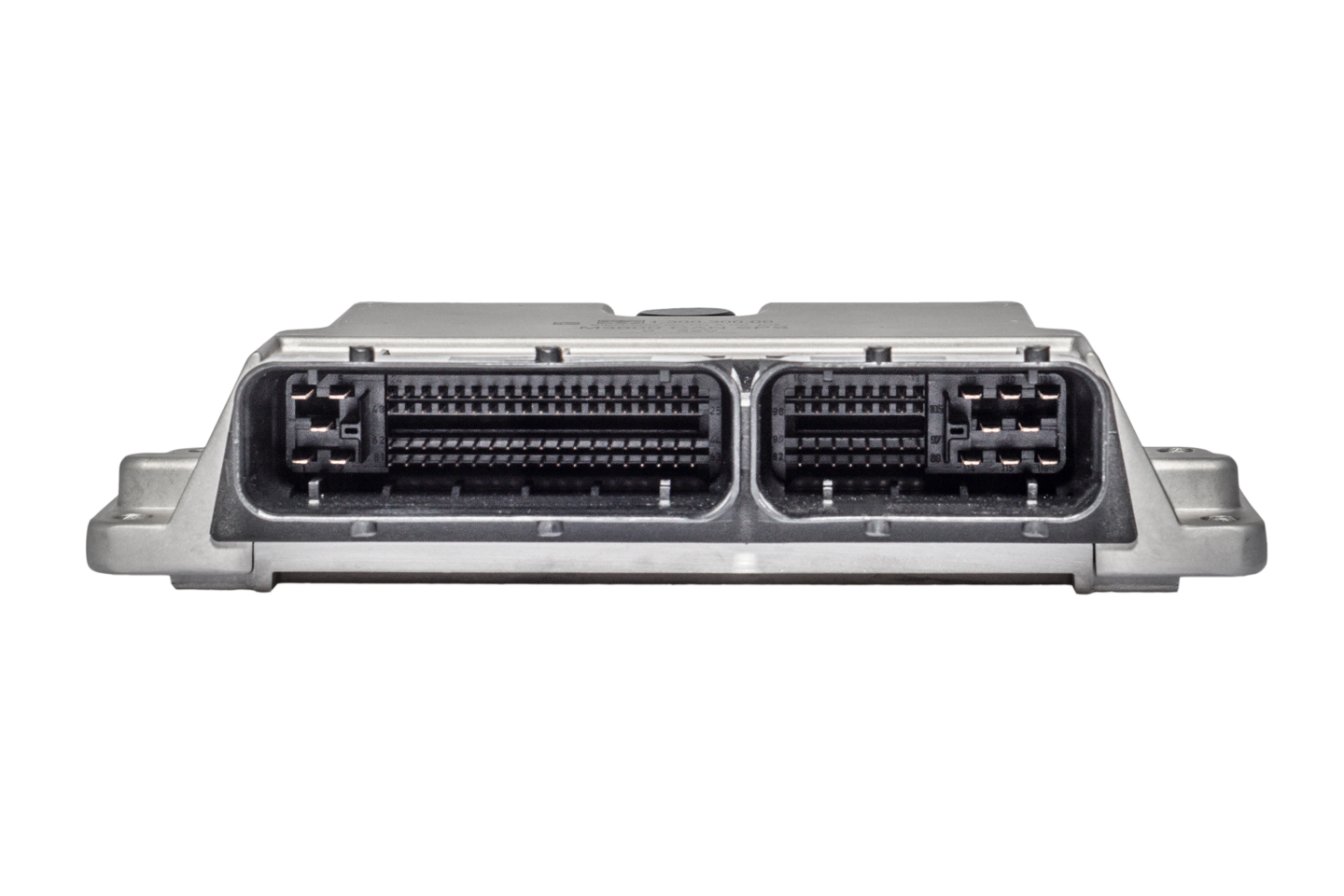

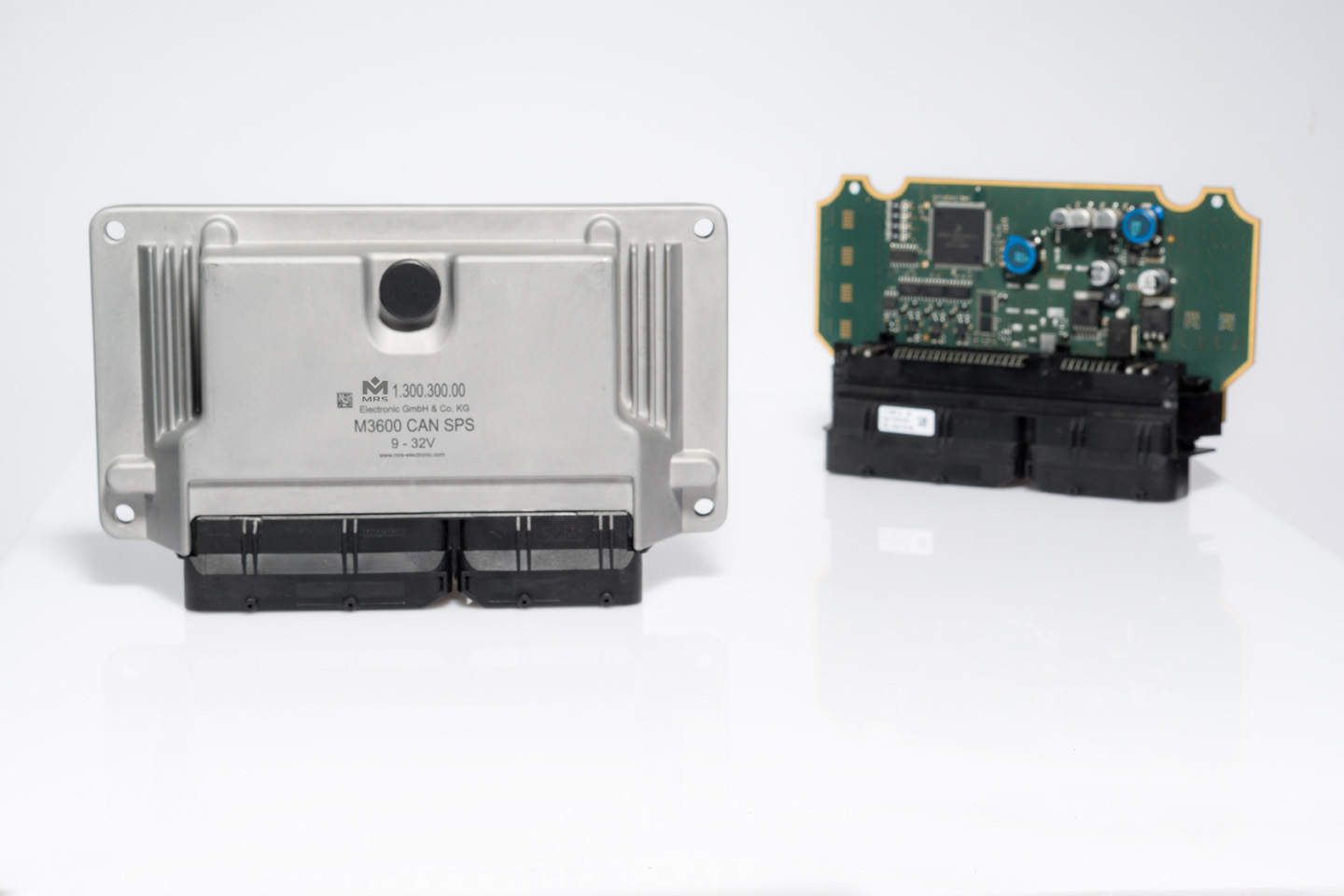

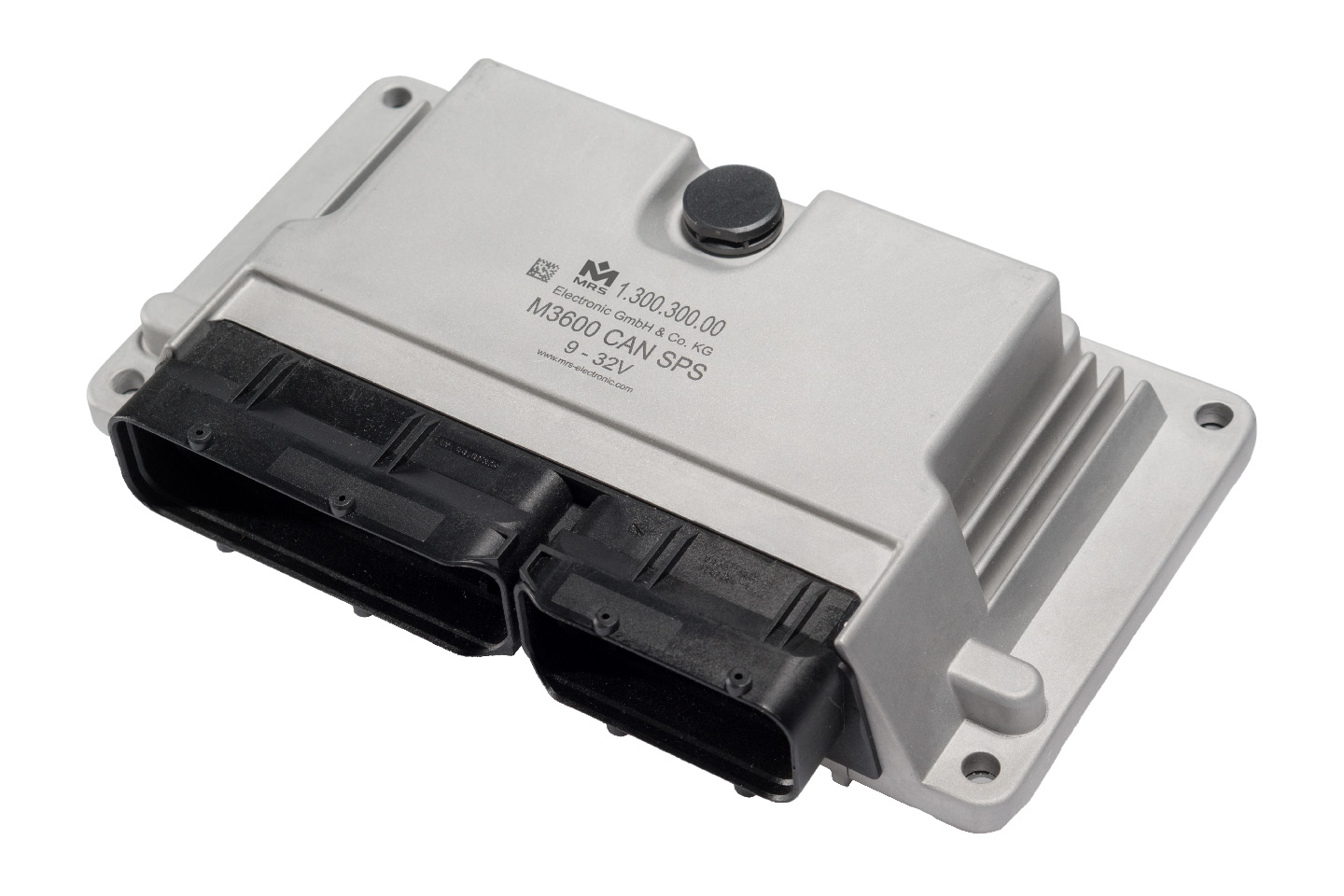

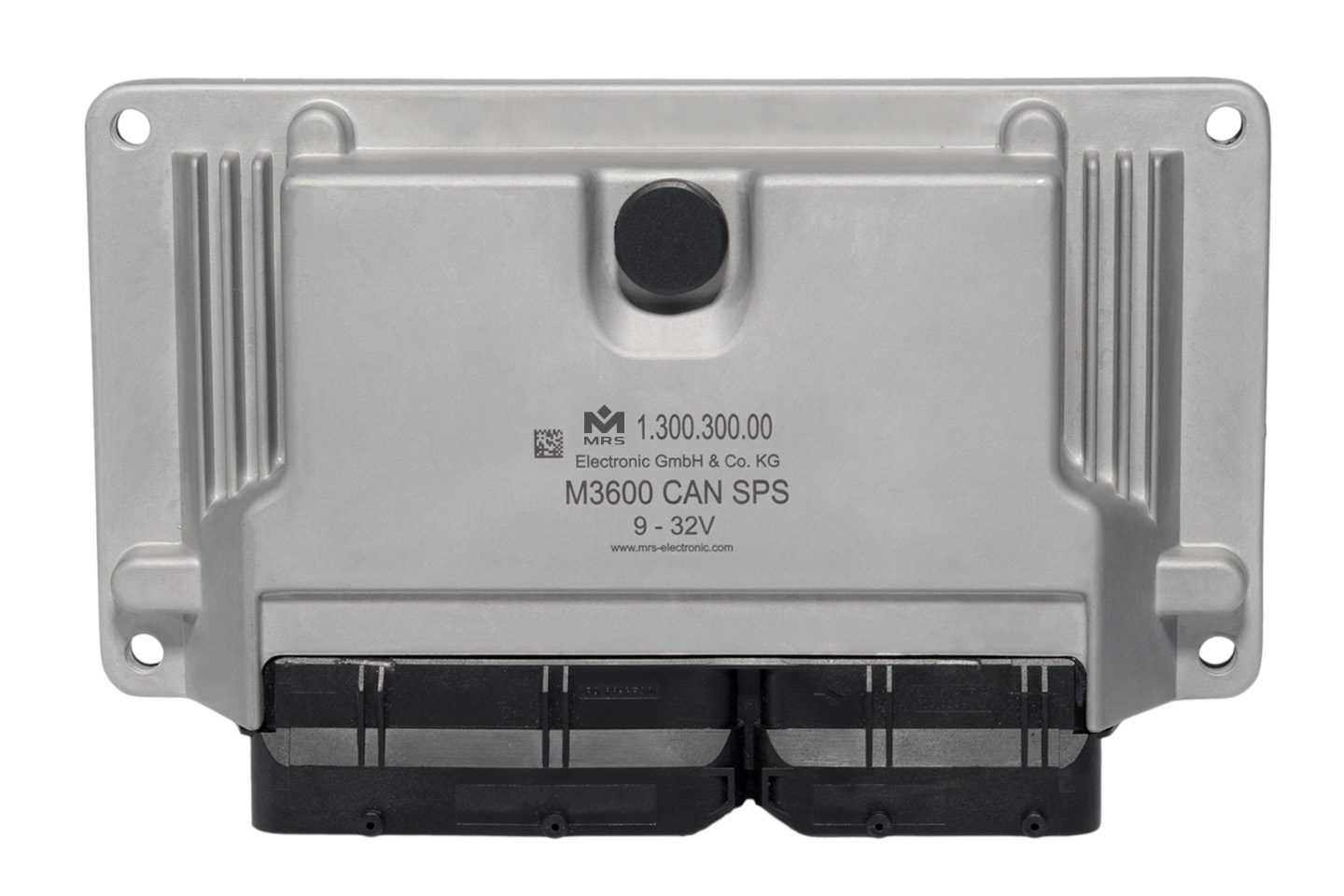

The large CAN controller M3600 from MRS Electronic with its 121 pins extends the product portfolio with a versatile all-rounder. With 3 CAN bus interfaces, the controller can either operate three stand-alone bus lines or serve as a hub for CAN bus communication. It has a total of 38 inputs and outputs. 18 analog inputs, 10 I/Os and 10 outputs make the device a versatile product that promises the end user less wiring.

The applications of these compact controllers are diverse and can be perfectly adapted to the requirements of the respective industry. Wherever the versatility of various actuators is needed, the M3600 is the ideal solution.

Downloads
Technical details

Inputs and Outputs

Number of pins 121
In-/Outputs (total) 38
Inputs (total) 18
Inputs (analog) 18
Outputs (total) 10
Outputs (PWM capable, integrated current measurement INA) 4
Outputs (digital) 6
I/Os (total) 10
I/Os (Input analog) 10
I/O (Output digital) 10
Output type high side 20
Switching current 2,5 A / 10 A

Interfaces

CAN interface(s) 3
Serial Interface(s) 1

Mechanical Properties

IP rating IP68
Housing material Aluminium
Dimensions 39.4 × 110.4 × 179 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 67 mA
Quiescent current (12V) 300 µA
Quiescent current (24V) 3350 µA
Vref current limit 200 mA
Processor architecture 16 bit

Certifications

Order options
Order no.Name
1.300.300.00
M3600 CAN PLC
