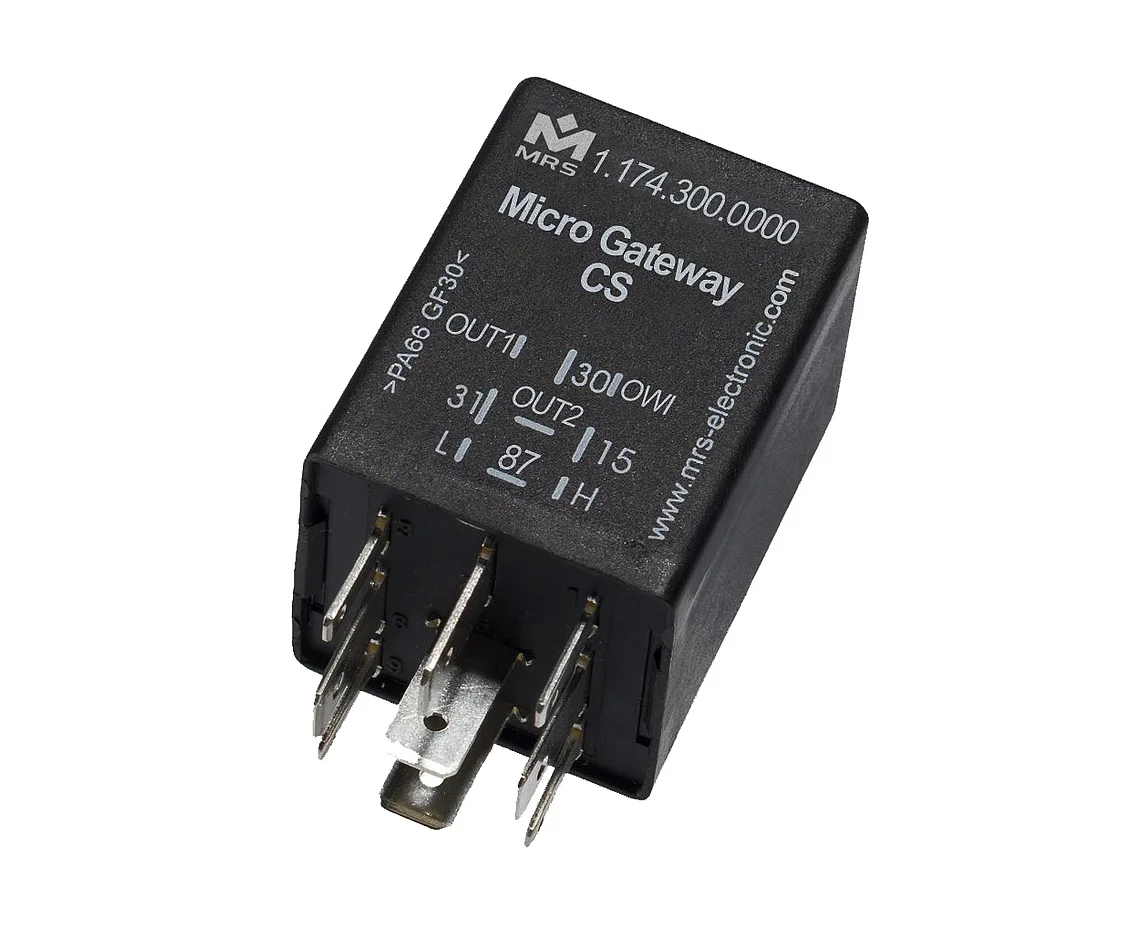

Micro Gateway CS

go to order options

The compact Micro Gateway CAN Serial complements existing systems and mediates or manipulates information between local interfaces (CAN, RS232/485). It provides a 1-Wire interface that can be used to connect an iButton reader for authentication or tracking.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

Number of pins 9
In-/Outputs (total) 3
Inputs (total) 1
Inputs (analog) 1
Inputs (digital) 1
Outputs (total) 2
Outputs (PWM capable) 1
Outputs (digital) 1
Relay outputs 1
Halfbridge 1
Output type low side 1

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material Platsic PA 66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range 40 °C to +85 °C
Operating voltage 9-32 V
Current consumption 8 mA at 12 V and 24 V
Quiescent current (12V) 30 µA
Quiescent current (24V) 750 µA
Order options
Order no.Name
1.174.300.0000
One Wire input, relay output
1.174.310.0000
One Wire input, RS232 serial interface
1.174.320.0000
One Wire input, RS485 serial interface
1.174.330.0000
One Wire input, direct conversion RS232 to OneWire interface, without CPU
