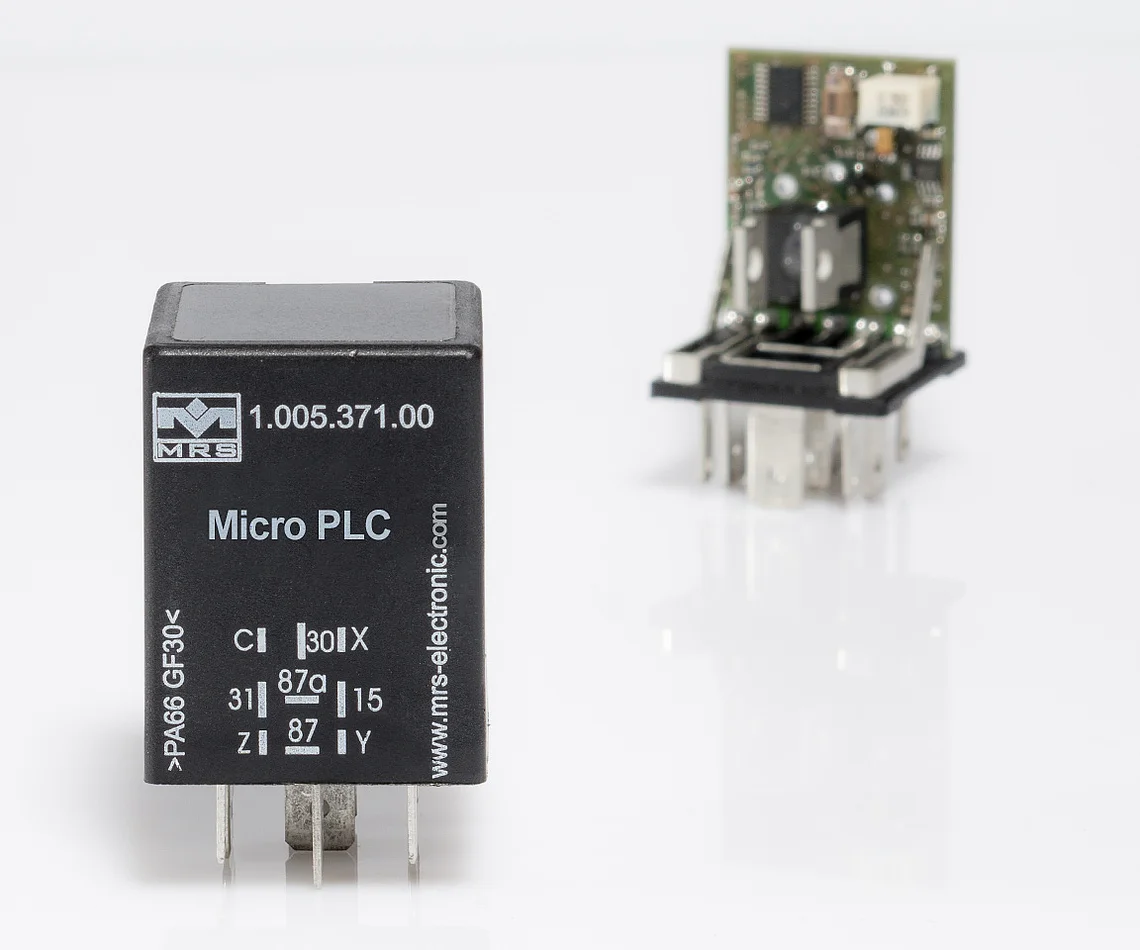

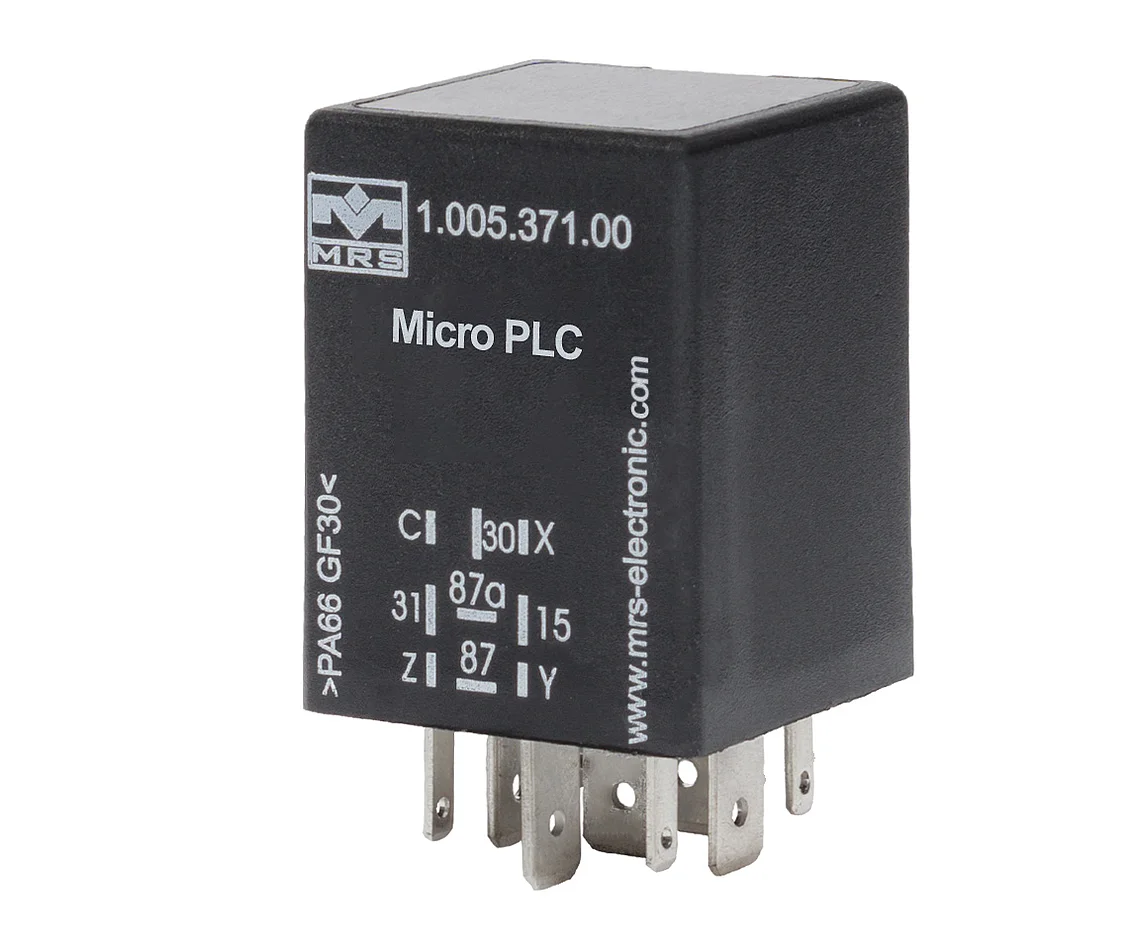

Micro PLC 24 V

go to order options

The Micro PLC is a small control for automotive applications. Free configuration, parameterization and programmability offer a wide range of application possibilities in the automotive sector.

Downloads
Technical details

Inputs and Outputs

Number of pins 9
In-/Outputs (total) 6
Inputs (total) 4
Inputs (analog) 1
Inputs (digital) 3
Outputs (total) 2
Outputs (digital) 1
Relay outputs 1
Output type low side 1
Switching current NO 10 A / NC 5 A

Mechanical Properties

IP rating up to IP6K8
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Realizer

General Information

Temperature range -40 to +85°C
Operating voltage 16-32 V
Processor architecture 16 bit

Markings

Order options
Order no.Name
1.005.251.00

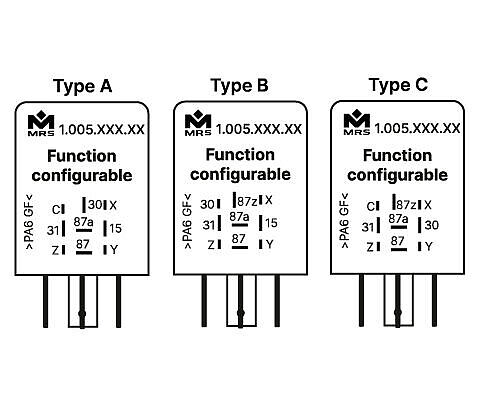

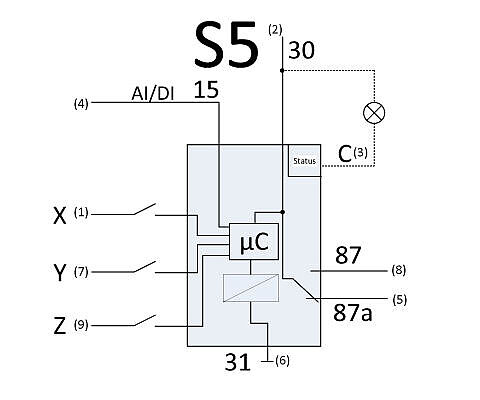

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, Type A, Connection S5
1.005.250.00
E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, 1 open collector output, Type A, Connection S5
1.005.254.00

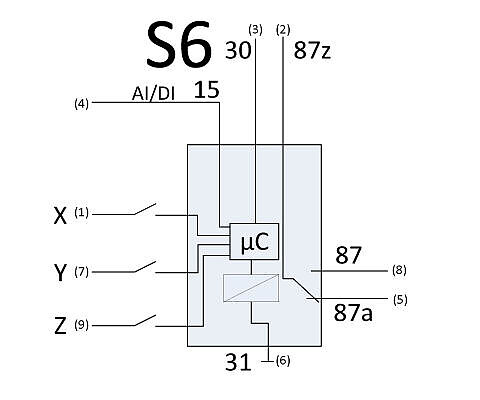

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, Type B, Connection S6
1.005.253.​00

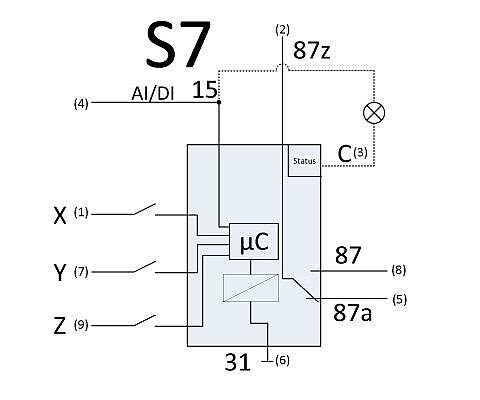

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, 1 open collector output, Type C, Connection S7
