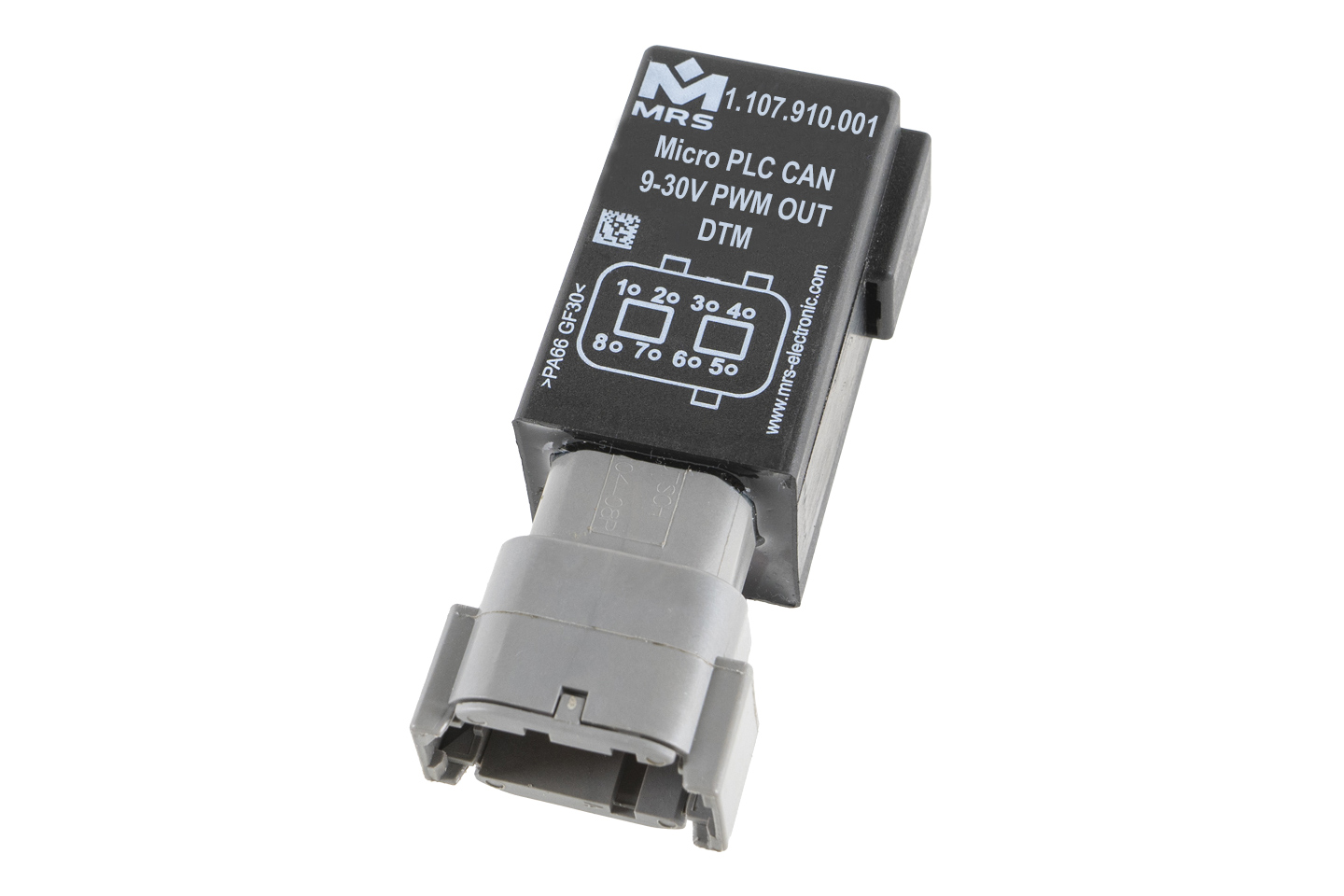

The Micro PLC CAN DTM is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with flash technology (option of multiple programming).

In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.

Technical details

Inputs and Outputs

Number of pins 8
In-/Outputs (total) 4
Inputs (total) 2
Inputs (analog) 2
Outputs (total) 2
Outputs (PWM capable) 2
Switching current 4,5 A / 4,5 A


CAN interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30


Programming software MRS Developers Studio

General Information

Temperature range -40°C to +85 °C
Operating voltage 9-32 V
