MicroPlex® 7H

go to order options

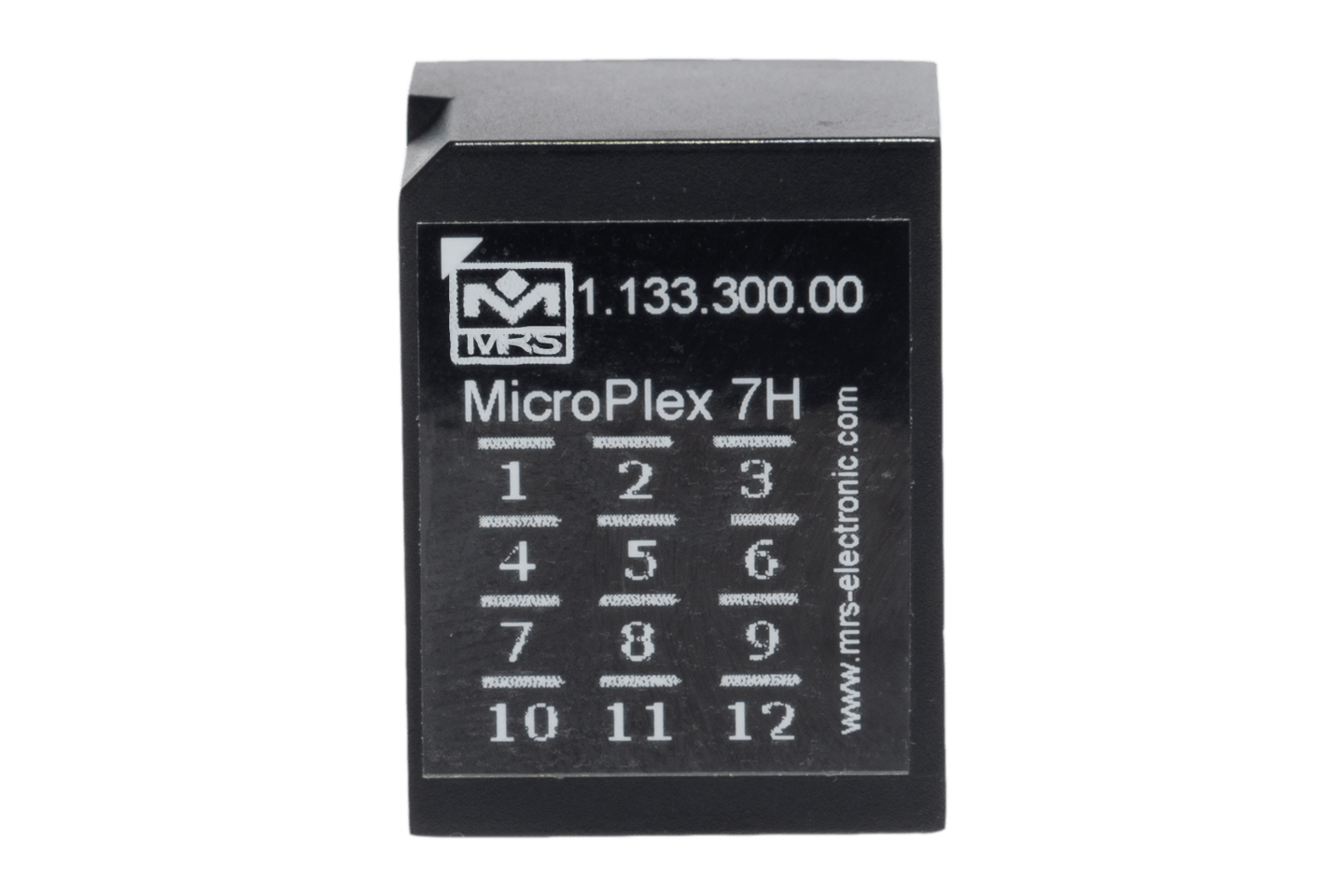

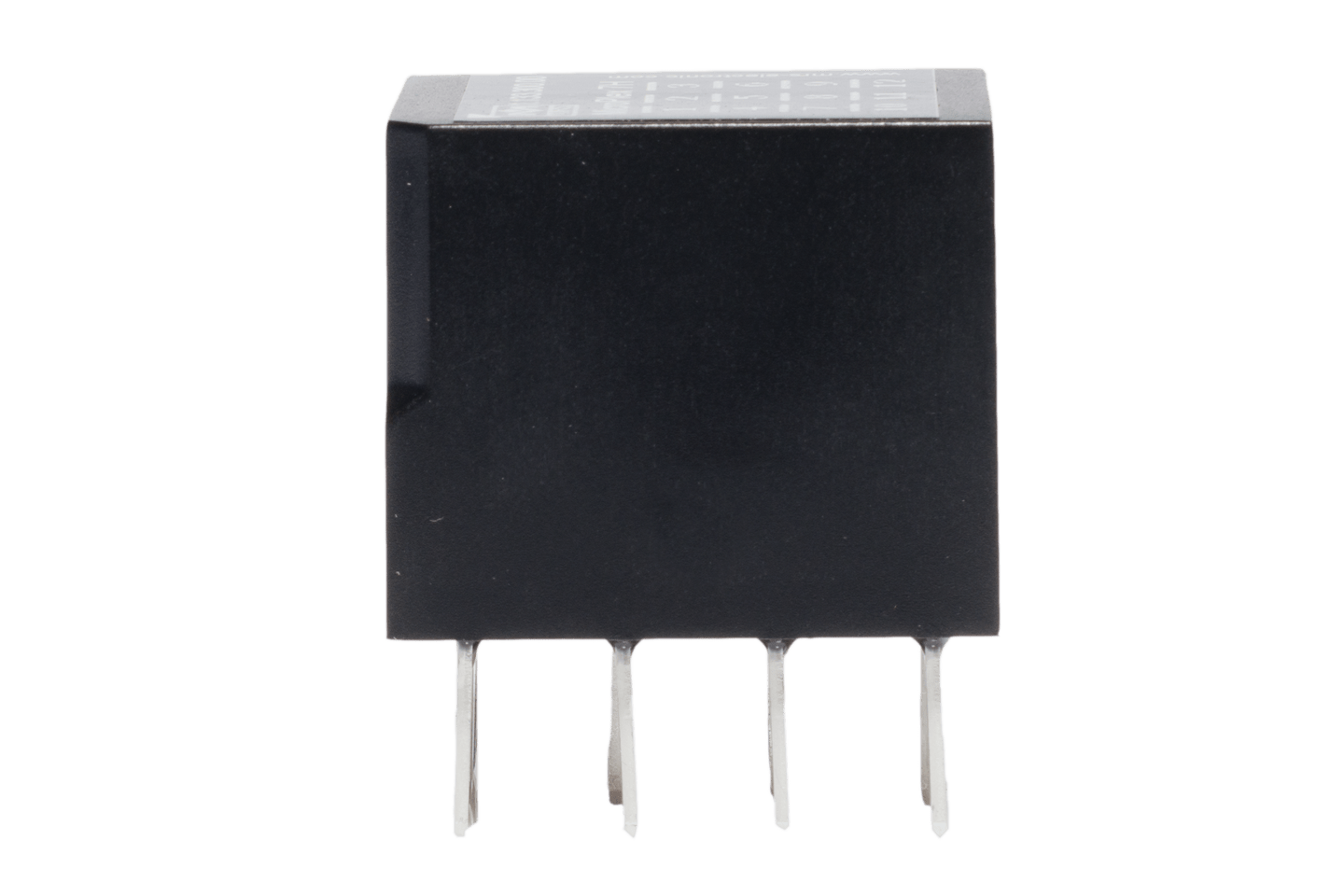

The patented MicroPlex® is the smallest CAN controller with the highest integration level from MRS Electronic. On the base area of the 2 Micro 280 relays you can easily build your own CAN bus capable power distribution systems. The 7H version has a total of 7 high-side driver outputs that switch the supply voltage. Of these, 6 are PWM-capable. In this way, the innovative MicroPlex® adapts perfectly to your needs.

The special feature is that the MicroPlex® can very quickly and easily generate an intelligent system with CAN bus communication from previously simple ISO 280 boxes. With the CAN interface the Microplex allows you to upgrade your existing systems with diagnostic capability.

Downloads
Technical details

Inputs and Outputs

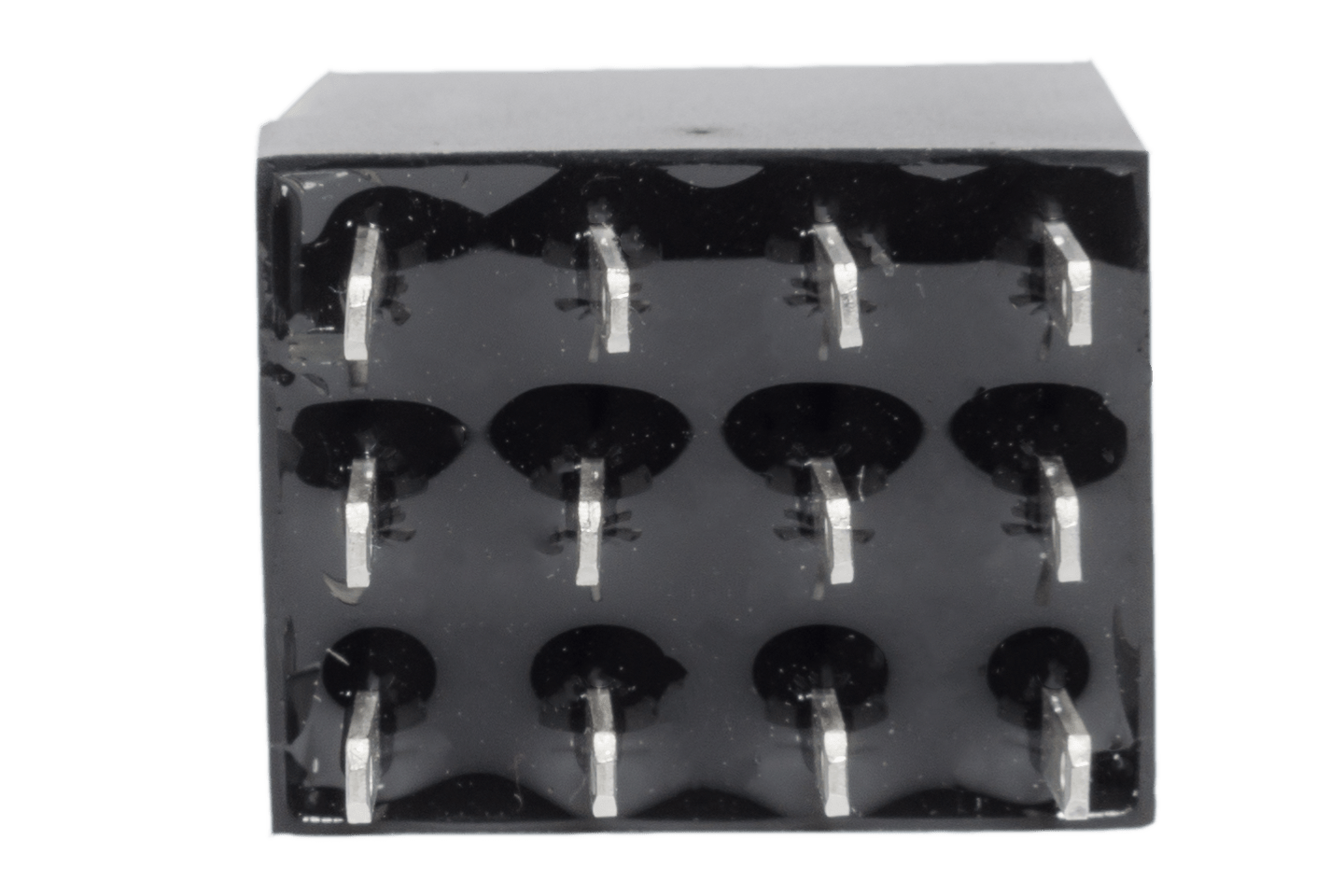

Number of pins 12
In-/Outputs (total) 7
Outputs (total) 7
Outputs (PWM capable) 6
Outputs (digital) 1
Output type high side 7
Switching current 2.5 A
Continuous current 2.2 A

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP67
Housing material PA66GF30
Dimensions 30.4 × 23.6 × 36.36 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 23 mA
Quiescent current (12V) 170 µA
Quiescent current (24V) 250 µA
Processor architecture 8 bit
Order options
Order no.Name
1.133.300.00
MicroPlex® 7H
