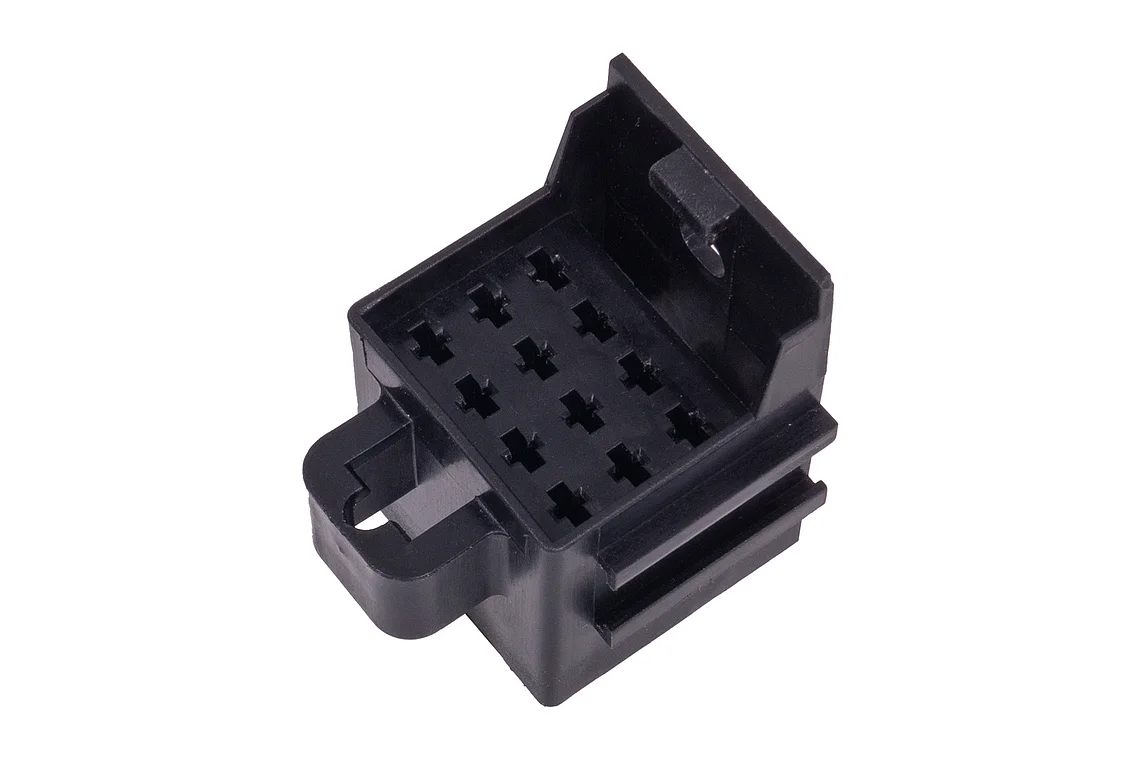

Socket watertight 12-pin MicroPlex® / ISO 280
go to order options (1017055)

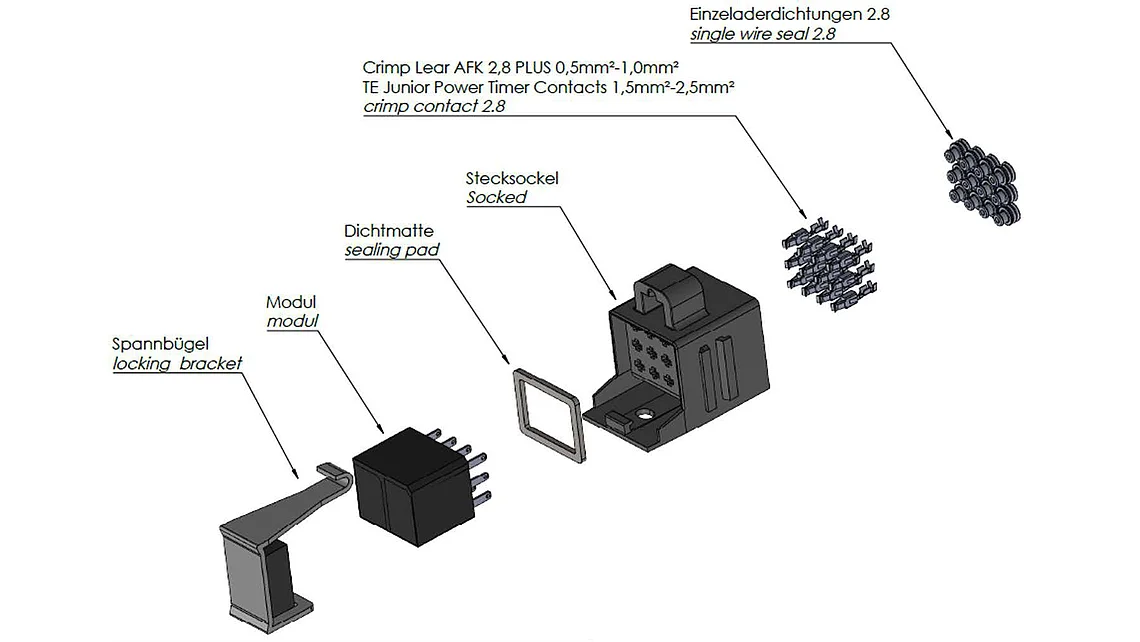

The high quality Socket watertight 12-pin MicroPlex® / ISO 280 is perfect for your application in use with our patented MicroPlex® or 2 standard ISO280 relays. In addition, fuses can also be installed (e.g.: 1x ISO280 and 2 fuses). *Please note: Locking brackets, sealing mats, and single-wire seals ensure watertightness with IP 67. Locking brackets and sealing mats are already included in the order variant. Crimp contacts and single-wire seals should be ordered separately. You will find these in the order variants.
**Shipping note: For orders of up to 49 items, the connector packages will be individually packaged and shipped. For orders of 50 items or more, the individual components will be packaged as bulk goods.
Order options
| Order no. | Name |
|---|---|
| 1.017.055.0000 (10170550000) |
Socket MicroPlex® up to 49 pcs.**
|
| 1.017.055.0001 (10170550001) |
Socket MicroPlex® from 50 pcs.**
|
| 1.017.055.1000 (10170551000) |

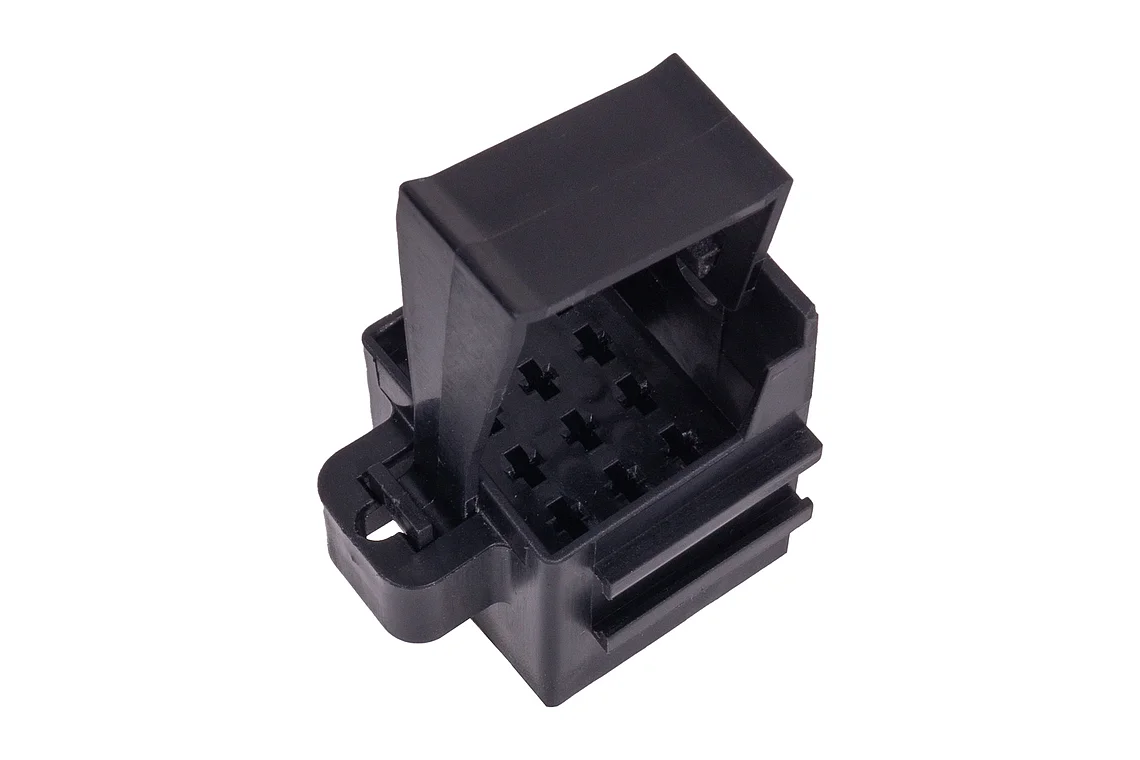

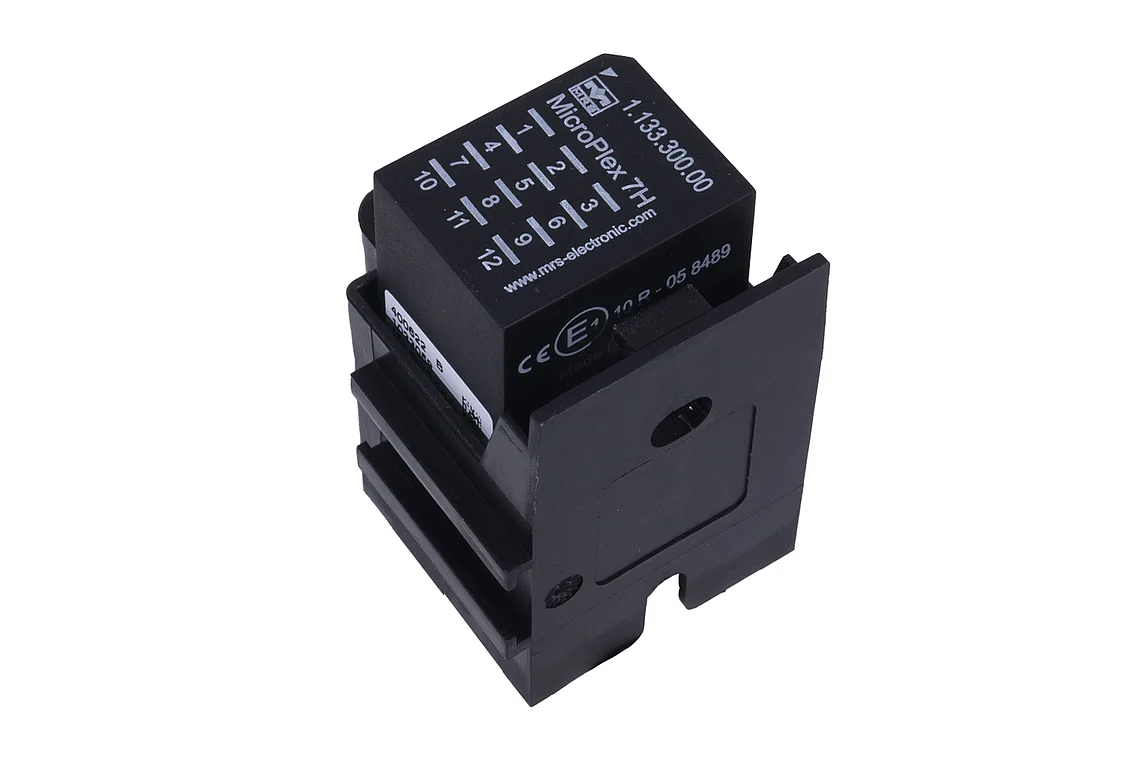

Socket waterproof MicroPlex®* (including locking bracket & seal) up to 49 pcs.**
|
| 1.017.055.1005 (10170551005) |
Socket waterproof MicroPlex®* (including locking bracket & seal) from 50 pcs.**
|
| 1.017.055.1100 (10170551100) |

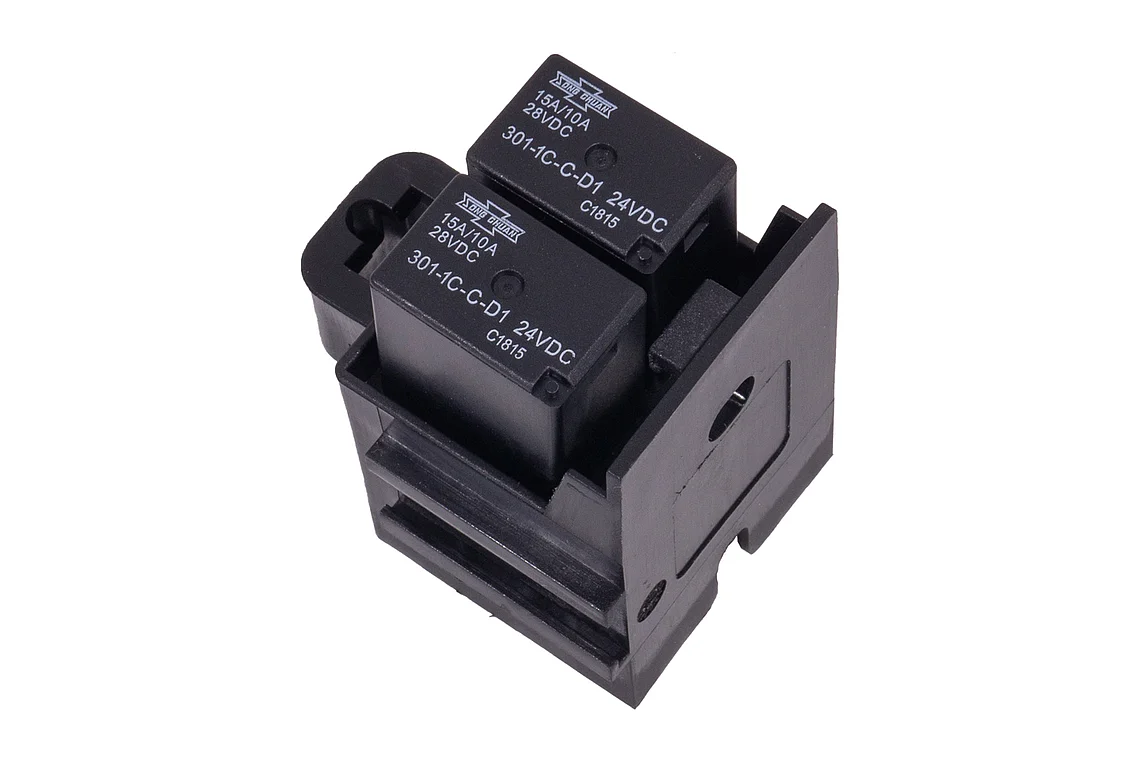

Socket waterproof double ISO28* (including locking bracket & seal) up to 49 pcs.**
|
| 1.017.055.1101 (10170551101) |
Socket waterproof double ISO28* (including locking bracket & seal) from 50 pcs.**
|
| 1.017.055.1003 (10170551003) |
Set crimp contacts and seals up to 49 pcs.**
|
| 1.017.055.1006 (10170551006) |
Set crimp contacts and seals from 50 pcs.**
|
| 1.017.055.1001 (10170551001) |
Spare part locking bracket
|
| 1.017.055.1002 (10170551002) |
Spare part Seal MicroPlex®
|
| 1.017.055.1004 (10170551004) |
Spare part Seal double ISO280
|
