MicroPlex® Gateway 3CAN LIN
go to order options (11413000x)

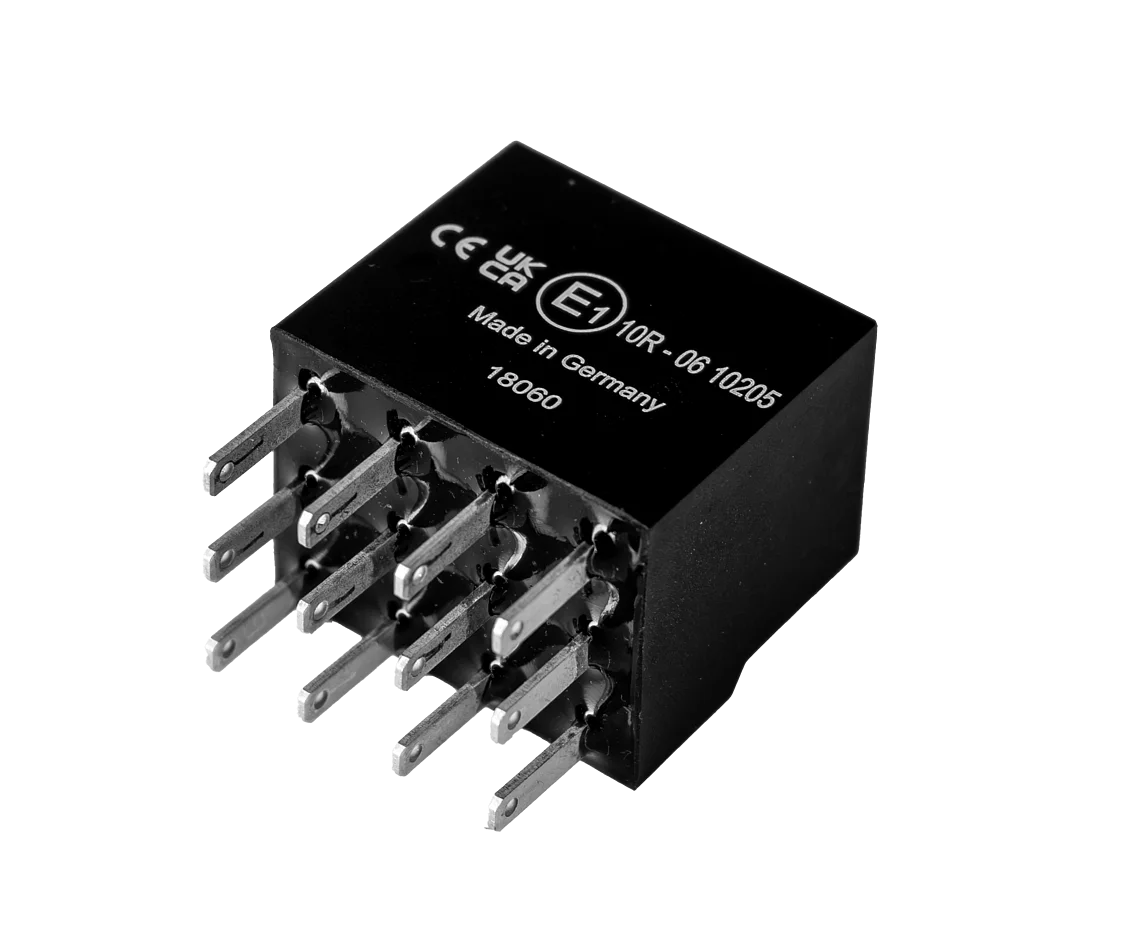

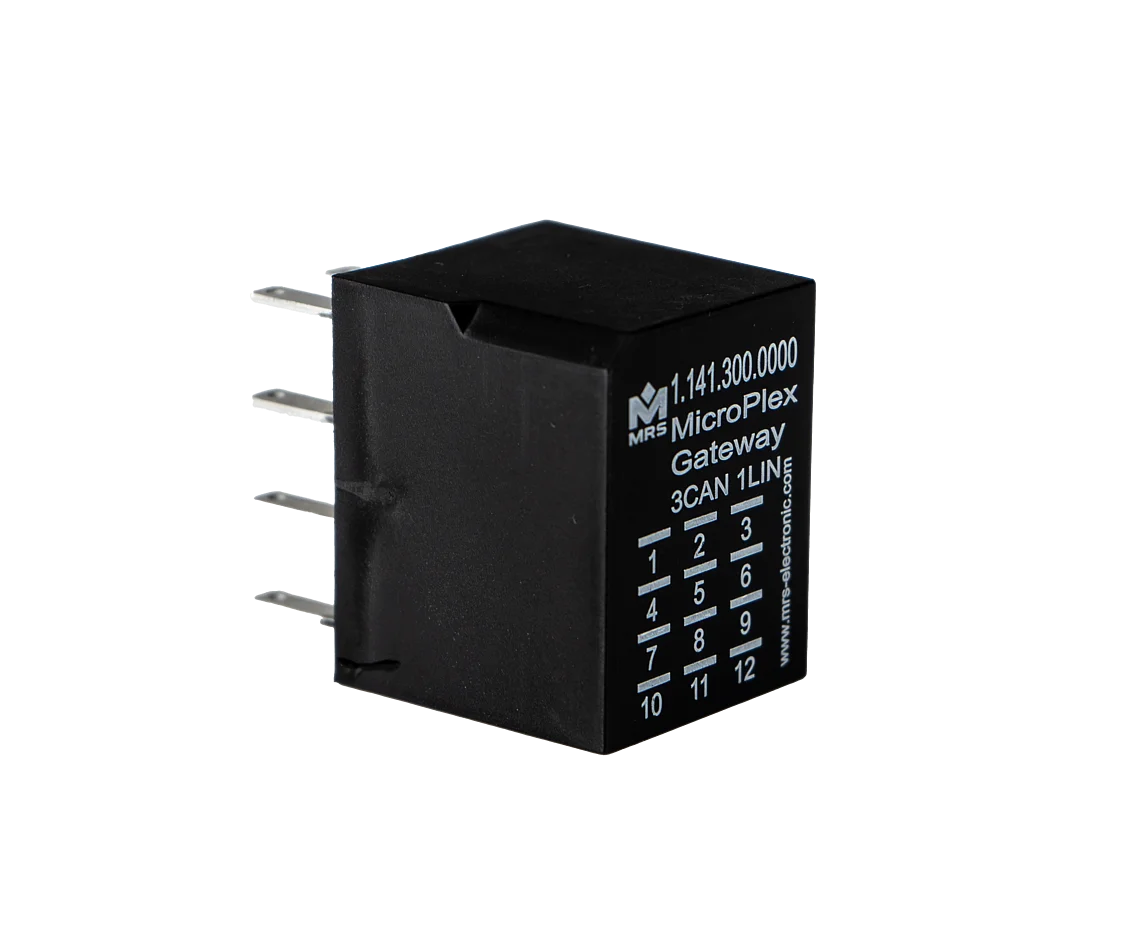

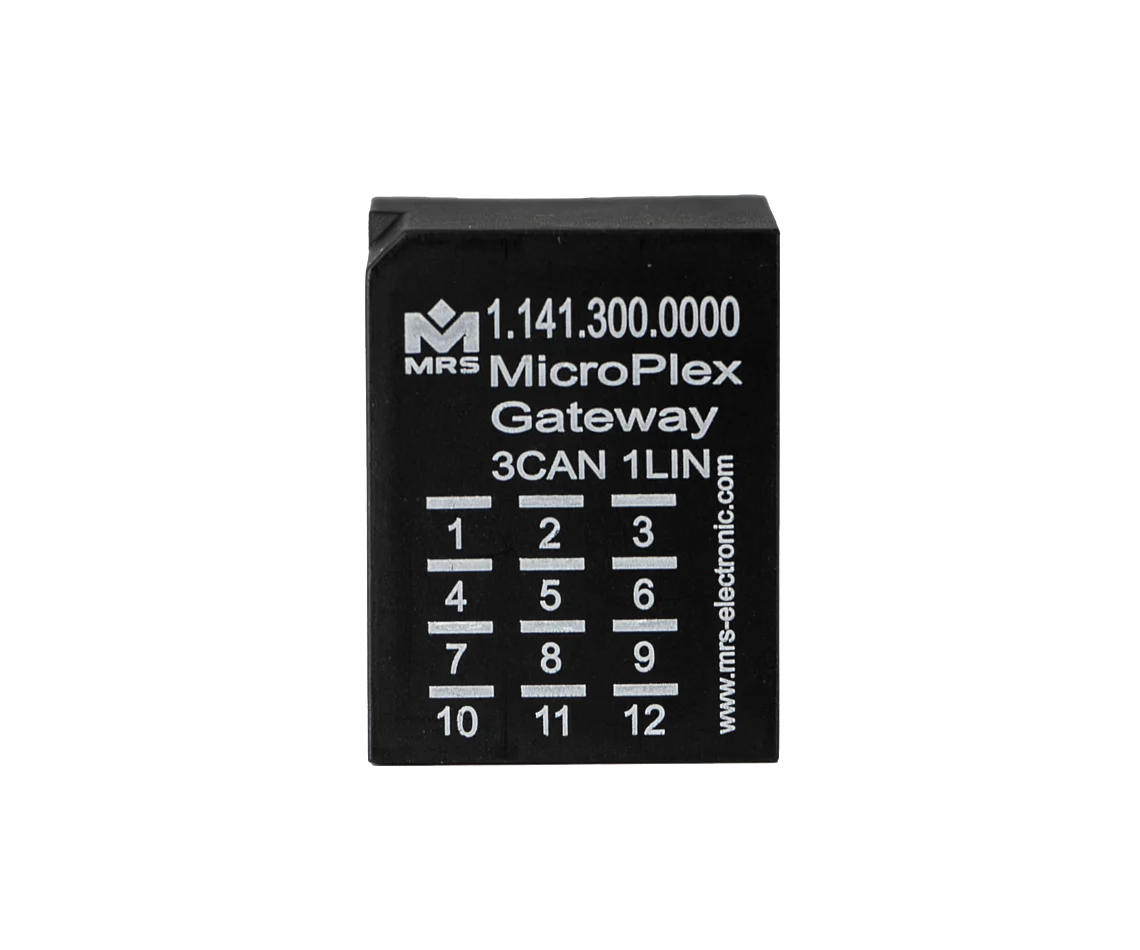

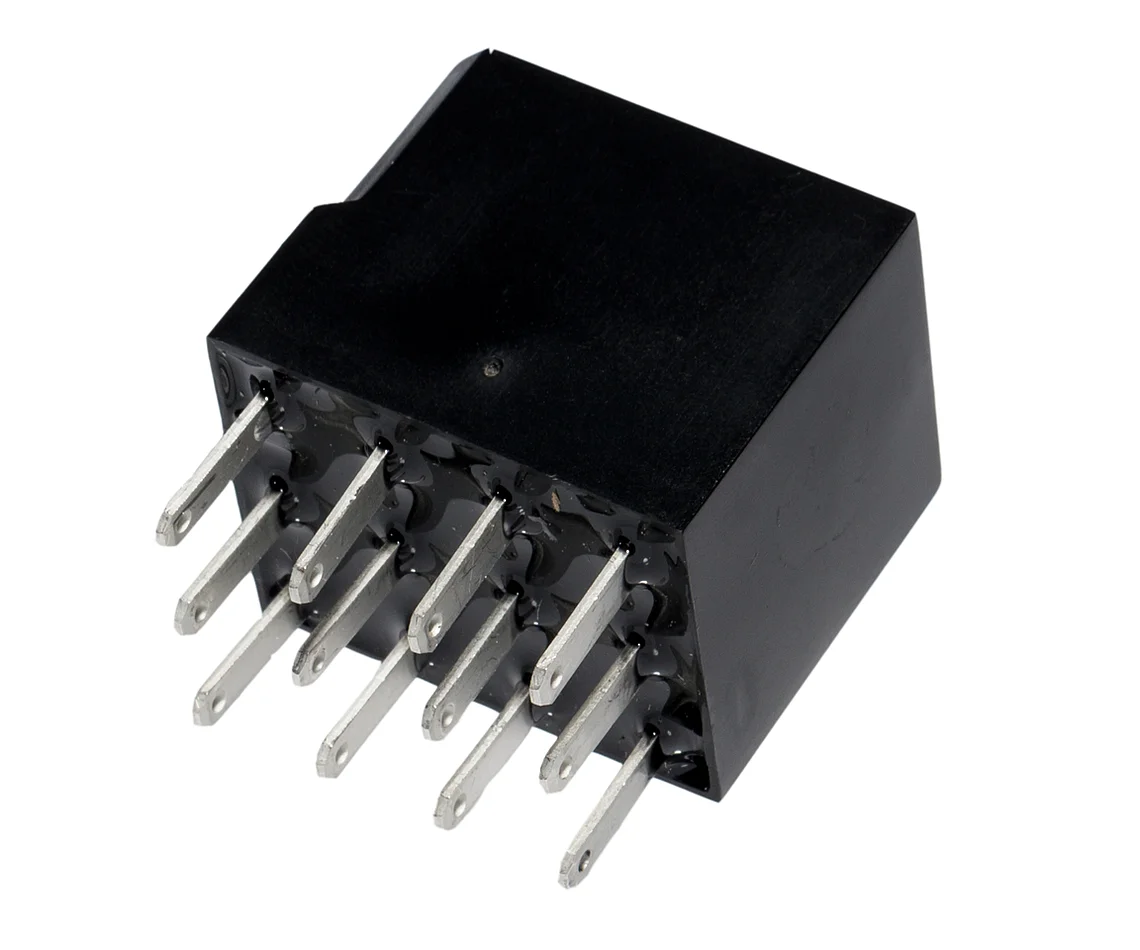

Compared to other gateways, the MicroPlex® Gateway 3CAN LIN in the compact MicroPlex® housing has 12 pins and enables even more functions in a more compact design.
With a multifunction input, an analogue input, three CAN interfaces and an optional LIN interface, it complements existing systems and transmits, filters or manipulates information between CAN networks. Equipped with a 32-bit processor, the cybersecurity-capable module provides you with even more computing power, higher performance and therefore secure routing and gateway functionality with a high bus load.
Technical details
Inputs and Outputs

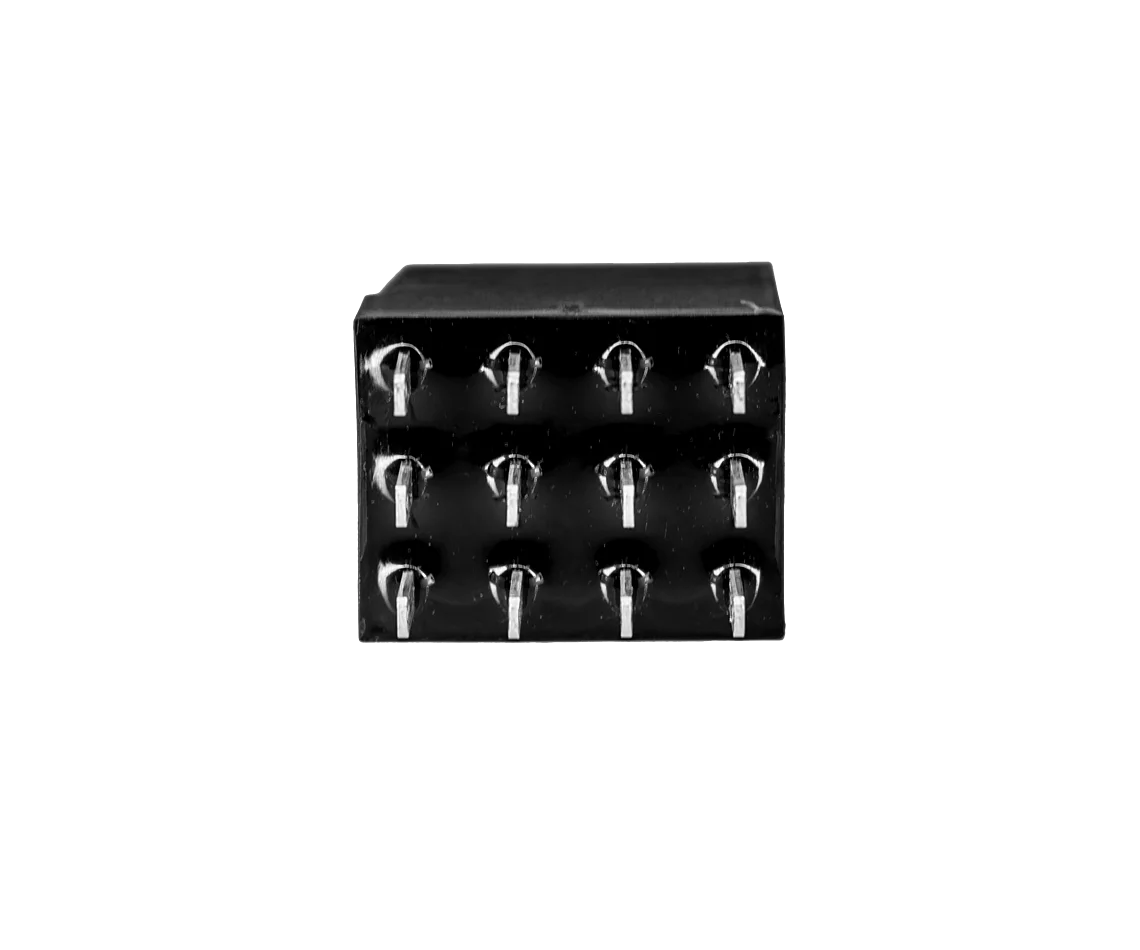

| Number of pins | 12 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 2 |
| Inputs (analog) | 1 |
| Multifunctional input | 1 |
Interfaces
| CAN FD interface(s) | 3 |
|---|---|
| LIN interface(s) | 1 |
Mechanical Properties
| IP rating | up to IP68 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30.4 × 23.6 × 25.75 mm |
Programming
| Programming software | MRS Applics Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 8-32 V |
| Current consumption | 52 mA @ 12 V, 30 mA @ 24 V |
| Quiescent current (24V) | 70 µA |
| Processor architecture | 32 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.141.300.0001 (11413000001) |
MicroPlex® Gateway 3CAN 1LIN
|
| 1.141.300.0221 (11413000221) |
MicroPlex® Gateway 3CAN
|
