CAN I/O PLC

go to order options

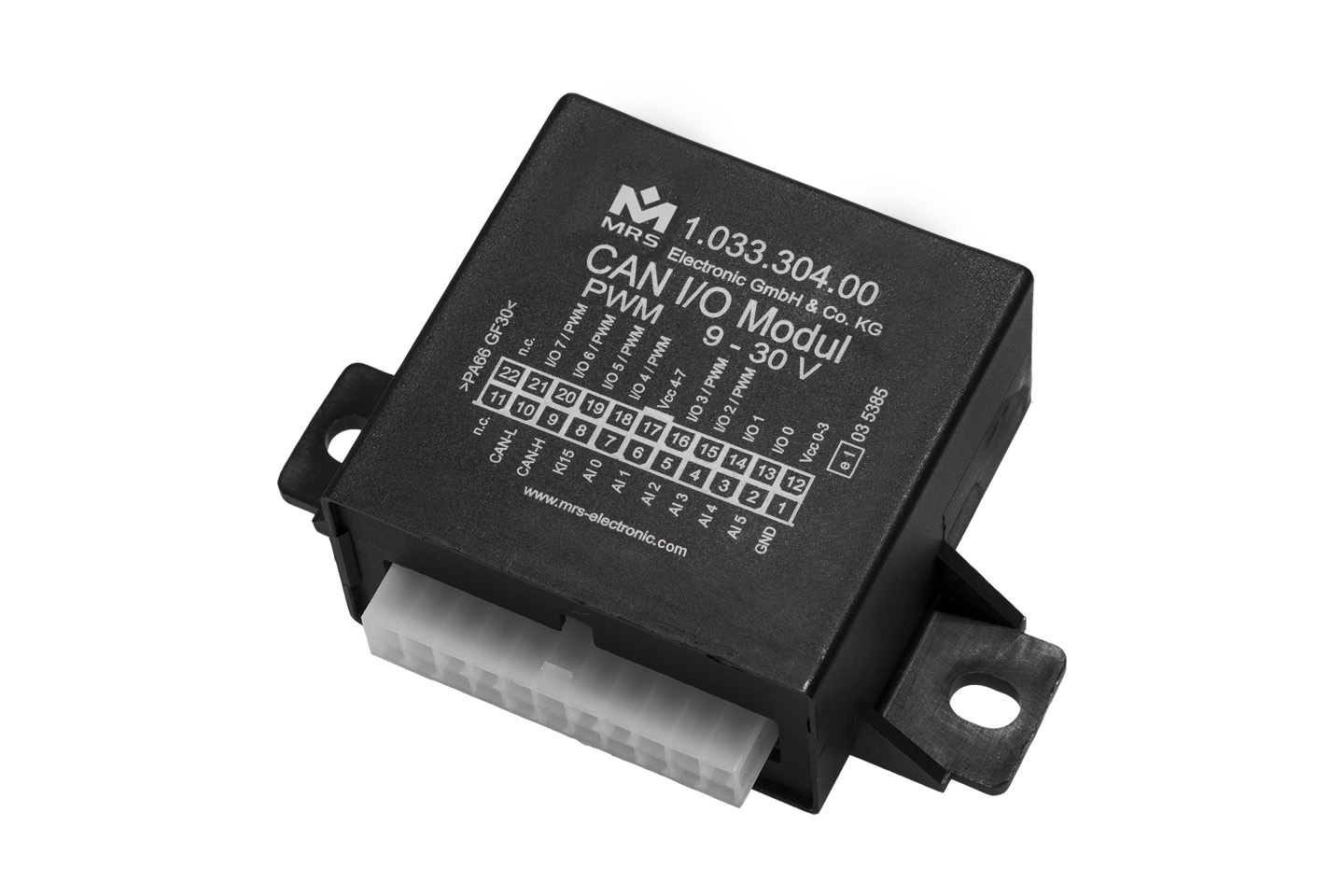

The compact CAN I/O PLC with 14 inputs and outputs and an operating voltage range from 9 to 32 V convinces with numerous assembly variants. In addition to eight I/Os that can be configured as inputs or outputs, there are six analog inputs. The practically dimensioned housing is ideal for tight installation spaces. This module is equipped with a CAN interface and can be extended by an RS232 or RS485 interface. This allows a data exchange (gateway) between CAN and the serial interface. The CAN I/O PLC can be used as an I/O module in a CAN network as well as a stand-alone and intelligent PLC.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

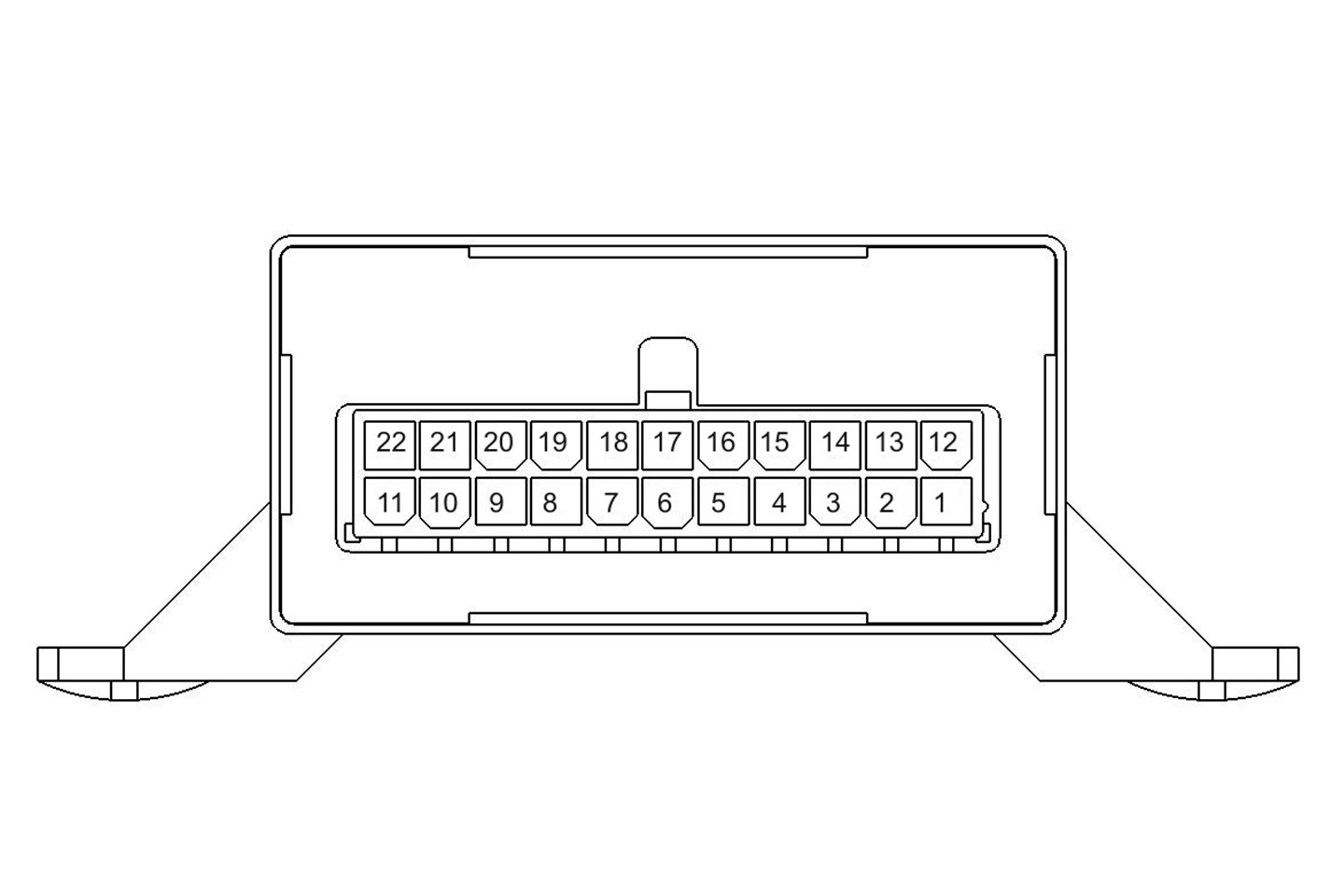

Number of pins 22
In-/Outputs (total) 14
Inputs (total) 6
Inputs (analog) 6
I/Os (total) 8
I/Os (Input analog) 6
I/Os (Input digital) 2
I/O (Output PWM capable) 6
I/O (Output digital) 2
Output type high side 8
Switching current 2.5 A

Interfaces

CAN interface(s) 1
Serial Interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 60 × 60 × 30 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Quiescent current (12V) 40 µA
Quiescent current (24V) 140 µA
Vref current limit 500 mA
Processor architecture 8 bit

Certifications

Order options
Order no.Name
1.​033.​304.​0001
Basic
1.​033.​305.​0001
5 Vref Outputs
1.033.​306.0001
3x current inputs
1.033.​308.​0001
30V analog inputs
1.​033.​309.​0001
2x RPM Inputs
1.033.30B.0001
3x Pull-Ups, 5 Vref Output
1.033.30C.0001
3x Pull-Up
1.033.30E.0001
2x RPM Inputs 4,5V
1.033.30K.0001
2x RPM Inputs, 5 Vref Output
1.033.30P.0001
3x PT1000 Inputs
1.033P.300.0001
CANopen (CiA401)
1.033P.305.0001
CANopen (CiA401), 5Vref Output
1.033.320.0001
RS485 Gateway
1.033.330.0001
RS232 Gateway
