Micro Gateway 32-bit

go to order options

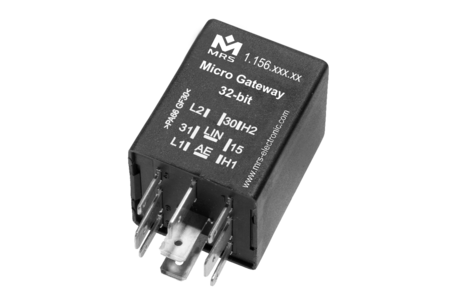

The new Micro Gateway is a compact gateway for automotive applications. The core piece, the 32-bit processor, provides you with higher performance and thus secure routing and gateway functionality at high bus loads. Thanks to the reduced housing size, you can now also use the gateway in standard relay boxes with a height of 40 mm. The 2 I/Os are now also PWM capable. Implement larger and more complex programs and applications by increasing the flash memory to 2 MB. The RAM has also been increased from 12 KB to 256 KB. This gives you even more memory to temporarily store the higher amount of data

The Micro Gateway is available in the following variants: 2 x CAN bus + 2 x LIN or 2 x I/Os. The CAN/LIN variant offers you the option of integrating 12 V as well as 24 V LIN sensors, for example for operating a 12 V rain light sensor in a commercial vehicle. This function is only available in a separate version. The module is also CAN FD capable.

Downloads
  • CAN-Bus
Technical details

Inputs and Outputs

Number of pins 9
In-/Outputs (total) 2
I/Os (total) 2
I/Os (Input analog) 2
I/O (Output PWM capable) 2
Output type high side 2
Switching current 1 A

Interfaces

CAN interface(s) 2
CAN FD interface(s) 2
LIN interface(s) 2

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Applics Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 70 mA
Quiescent current (12V) 80 µA
Quiescent current (24V) 100 µA
Processor architecture 32 bit

Certifications

Order options
Order no.Name
1.156.200.2600
2xCAN, 1xLIN, 12Vref | Potential LIN1: 12V | operating voltage range 15-32 V
1.156.300.0000
2xCAN, & 2xLIN | Potential LIN1 & LIN0: KL30 | operating voltage range 9-32 V
1.156.200.2000
2xCAN, 2xLIN (12V LIN1) | Potential LIN1: 12V & LIN0: KL30 | operating voltage range 15-32 V
1.156.300.4000
2xCAN, 1xLIN | 1xI/O | Potential LIN0: KL30 | operating voltage range 9-32 V
1.156.300.4400
2xCAN | 2xI/O | operating voltage range 9-32 V
1.156.300.5500
2xCAN | 2x analog Input | operating voltage range 9-32 V
1.156.311.0000
2xCAN (2x120R), 2xLIN | Potential LIN1: KL30 LIN0: KL30 | operating voltage range 9-32 V
1.156.311.5500
2xCAN (2x120R) | 2x analog Input | operating voltage range 9-32 V
