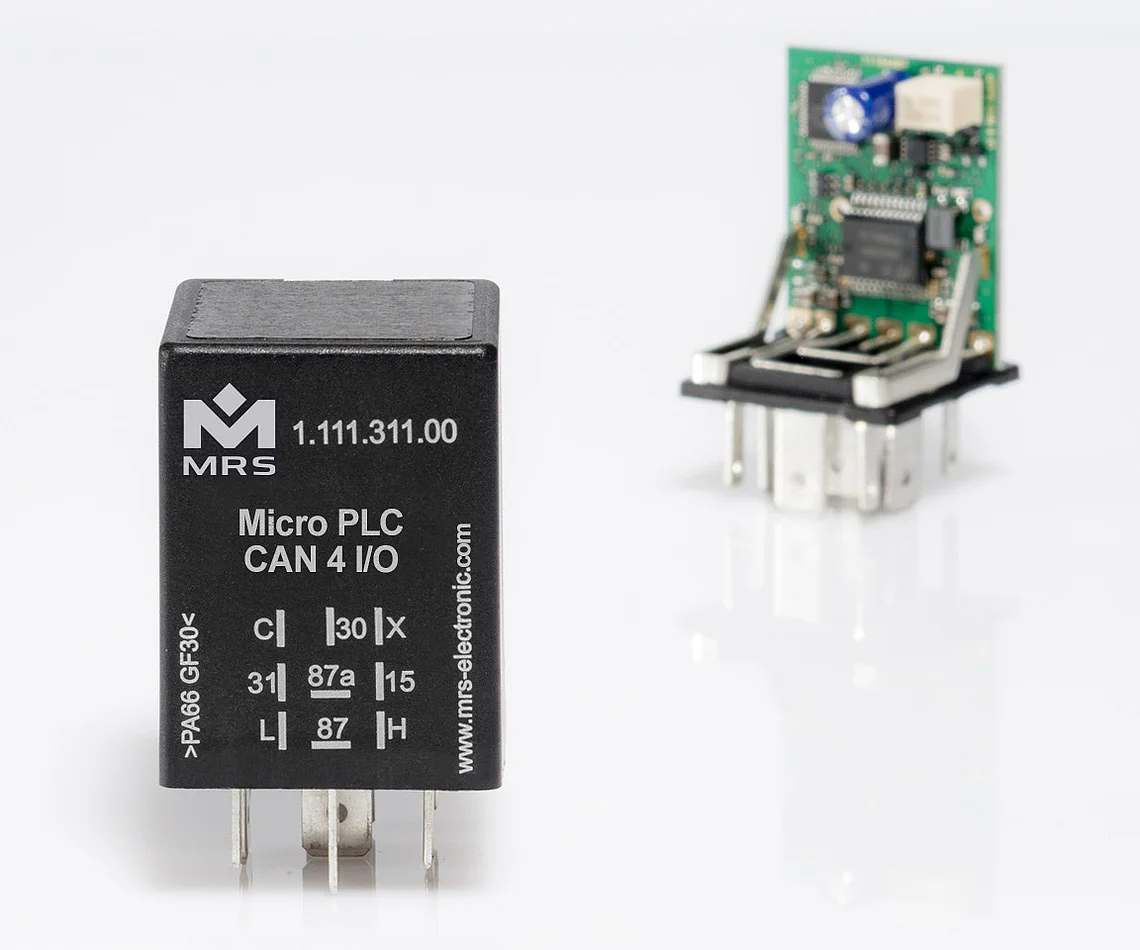

Micro PLC CAN 4 I/O

go to order options

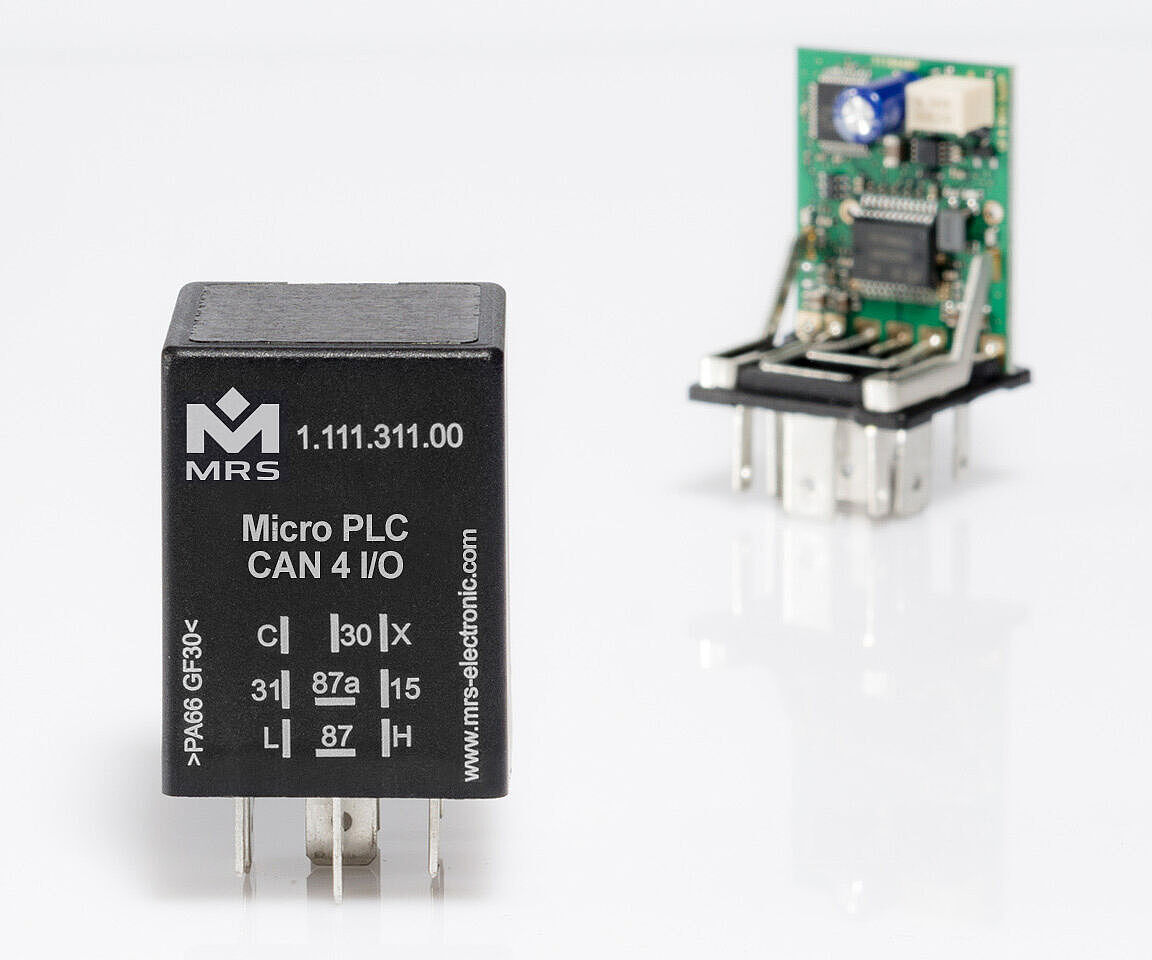

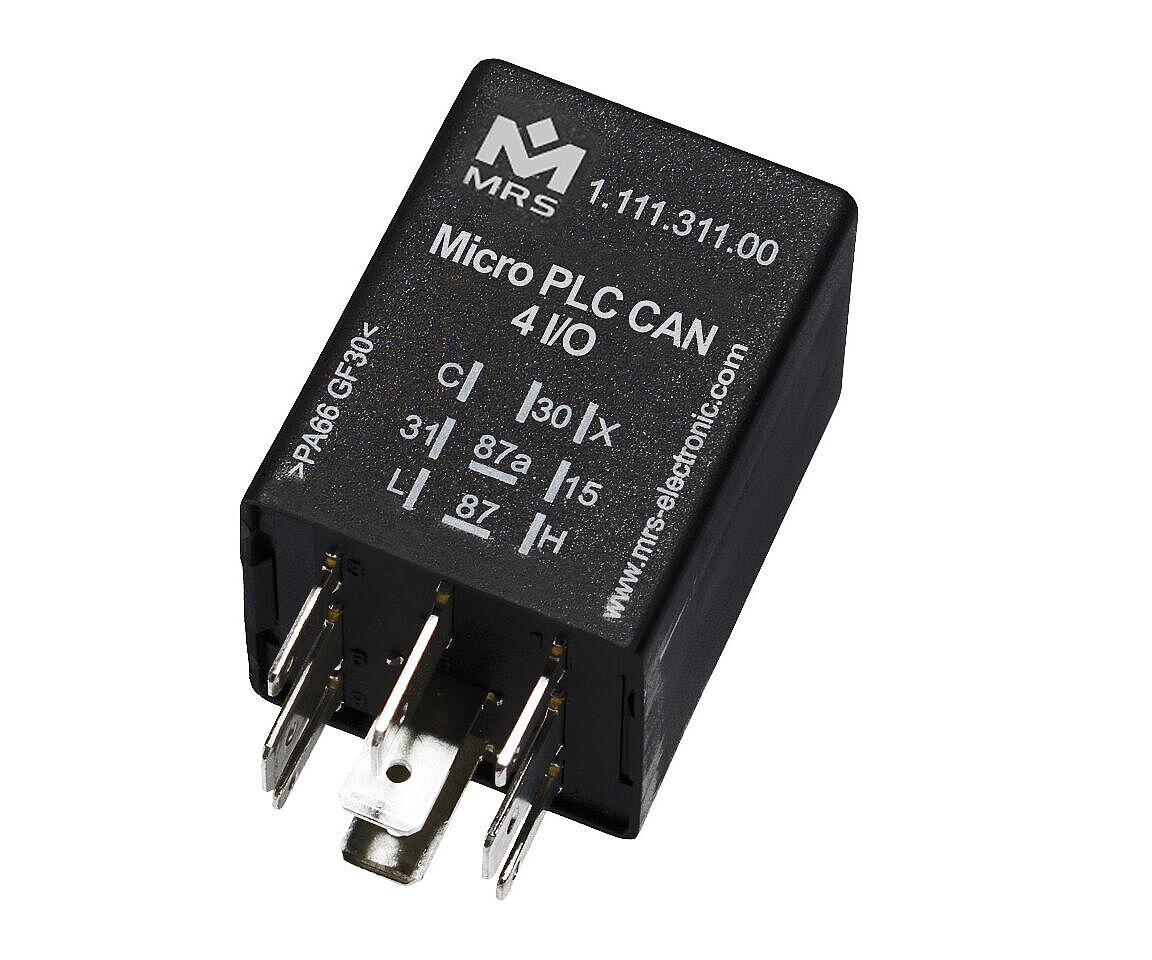

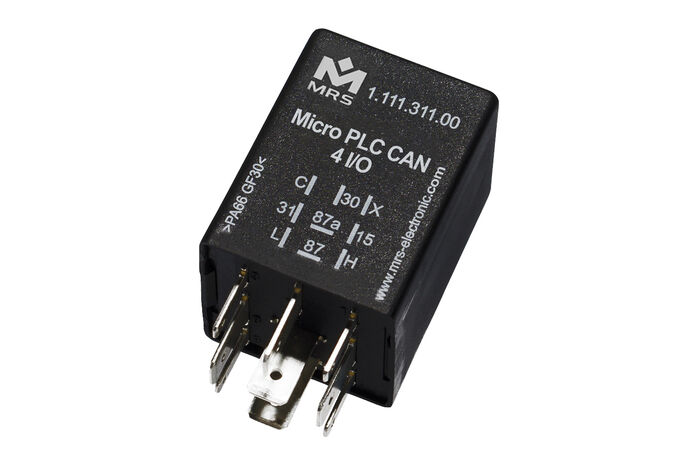

The Micro PLC CAN 4 I/O is a very small controller for automotive applications. The module is user configurable / programmable for a wide range of automotive applications. Control and data readout is via CAN-Bus. The small controller has four I/Os that can be programmed as input or output. The CAN-Bus module also has an analogue input and can be easily implemented in an existing can bus network.

Downloads
Technical details

Inputs and Outputs

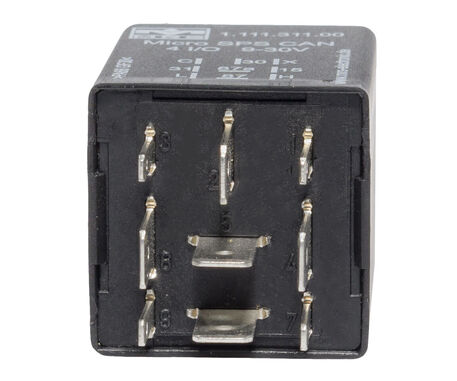

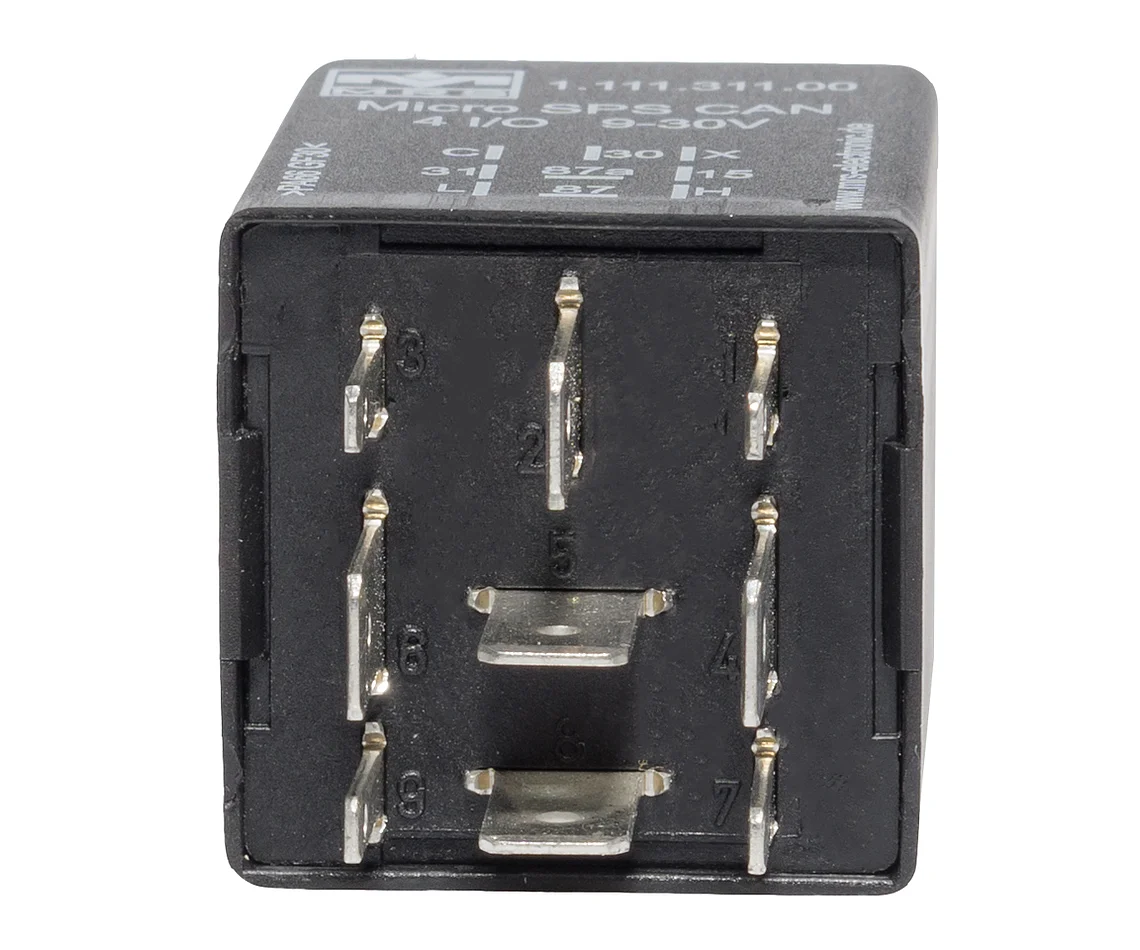

Number of pins 9
In-/Outputs (total) 4
I/Os (total) 4
I/Os (Input analog) 4
I/O (Output PWM capable) 4
Output type high side 4
Switching current 3 A @ 85°C
Continuous current 2 A

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 26 mA
Quiescent current (12V) 300 µA
Quiescent current (24V) 460 µA
Processor architecture 8 bit

Markings

Order options
Order no.Name
1.111.311.00

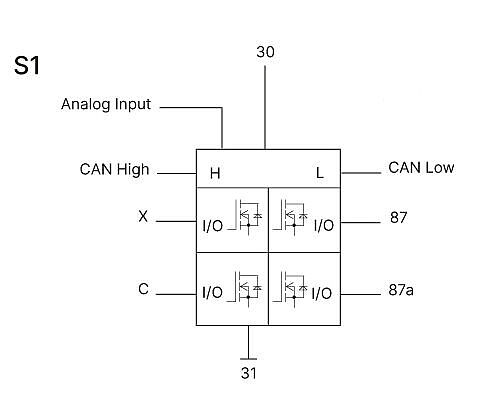

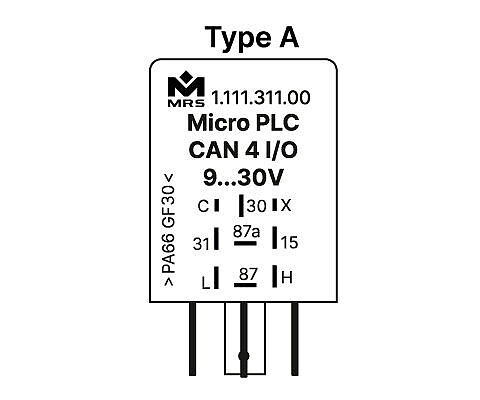

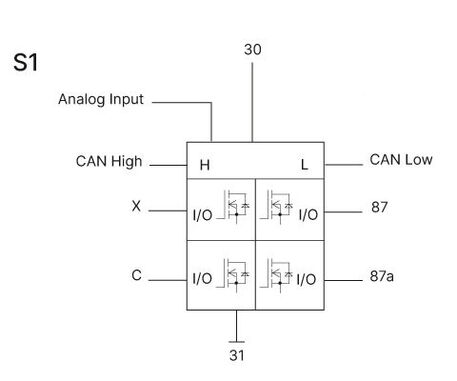

Type A, Connection S1
1.111P.311.00
CANopen (CiA401), Type A, Connection S1
