Micro PLC CAN 9-30 V

go to order options

The Micro PLC CAN is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with Flash technology (option of multiple programming). There are 2 analogue and/or 1 analogue input/1 digital output and 2 overload-proof Highside power outputs (alternative relay output) available.

Complex applications can be realized in C. The functions as well as the measured values are controllable and readable via the CAN bus. Programming is possible using the software Mrs Developers studio, graphically with CANgraph. The use of the powerful processor makes the Micro PLC CANopen and SAE J1939 capable.

Downloads
Technical details

Inputs and Outputs

Number of pins 9
In-/Outputs (total) 5
Inputs (total) 3
Inputs (analog) 3
Outputs (total) 2
Outputs (PWM capable) 2
Output type high side 2
Switching current 5 A

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP53
Housing material PA66GF30
Dimensions 30 × 30 × 40 mm

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40 to +85°C
Operating voltage 9-32 V
Current consumption 27 mA
Processor architecture 8 bit

Markings

Order options
Order no.Name
1.107.310.001

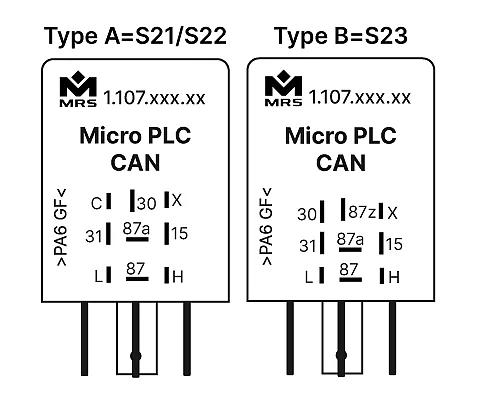

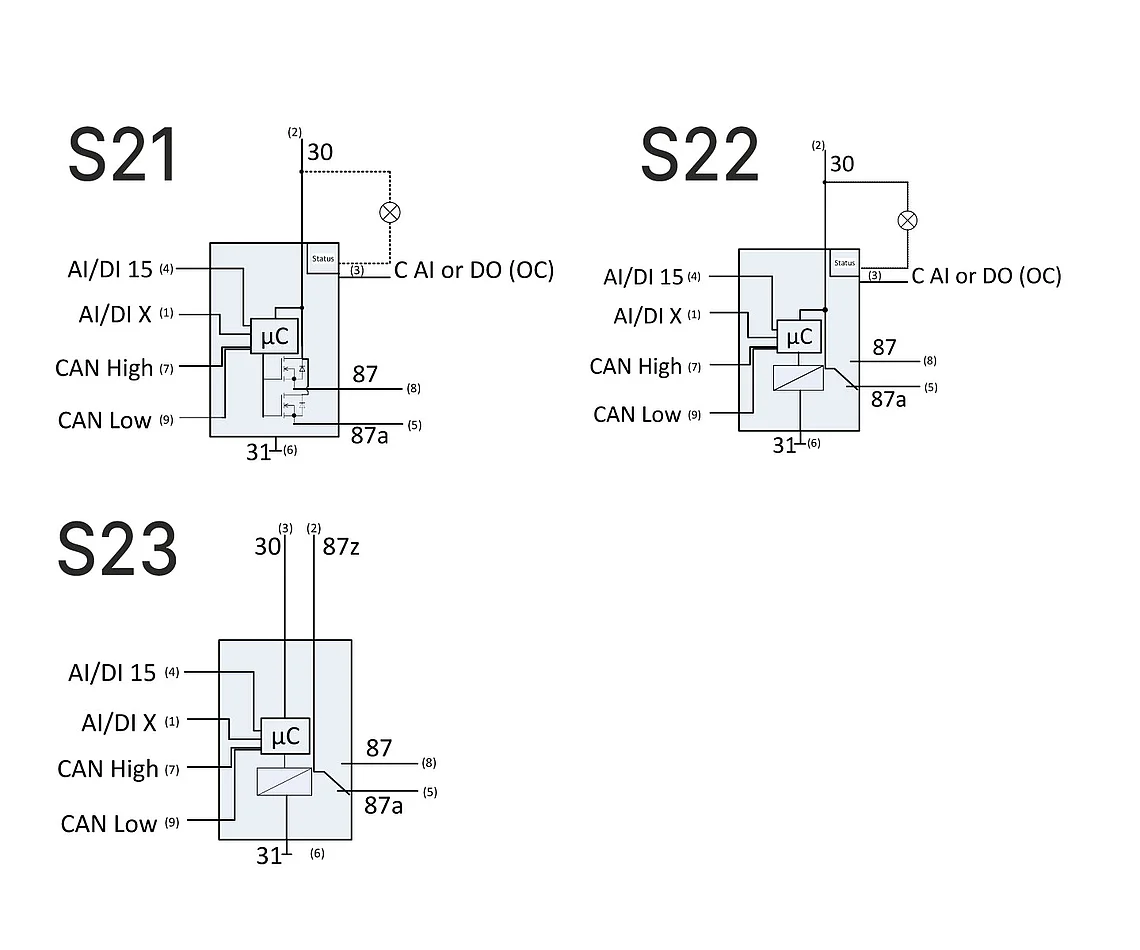

2 x PWM Out, Type A, Connection S21
1.107.310.061
2 x Freq. Input / 2 x PWM Out, Type A, Connection S21
1.107.310.071
5V Freq. Input / 2x PWM Out, Type A, Connection S21
1.107.311.001
Voltage monitoring KL15 / 2x PWM Out, Type A, Connection S21
1.107P.310.001
CANopen (CiA401) / 2 x PWM Out, Type A, Connection S21
