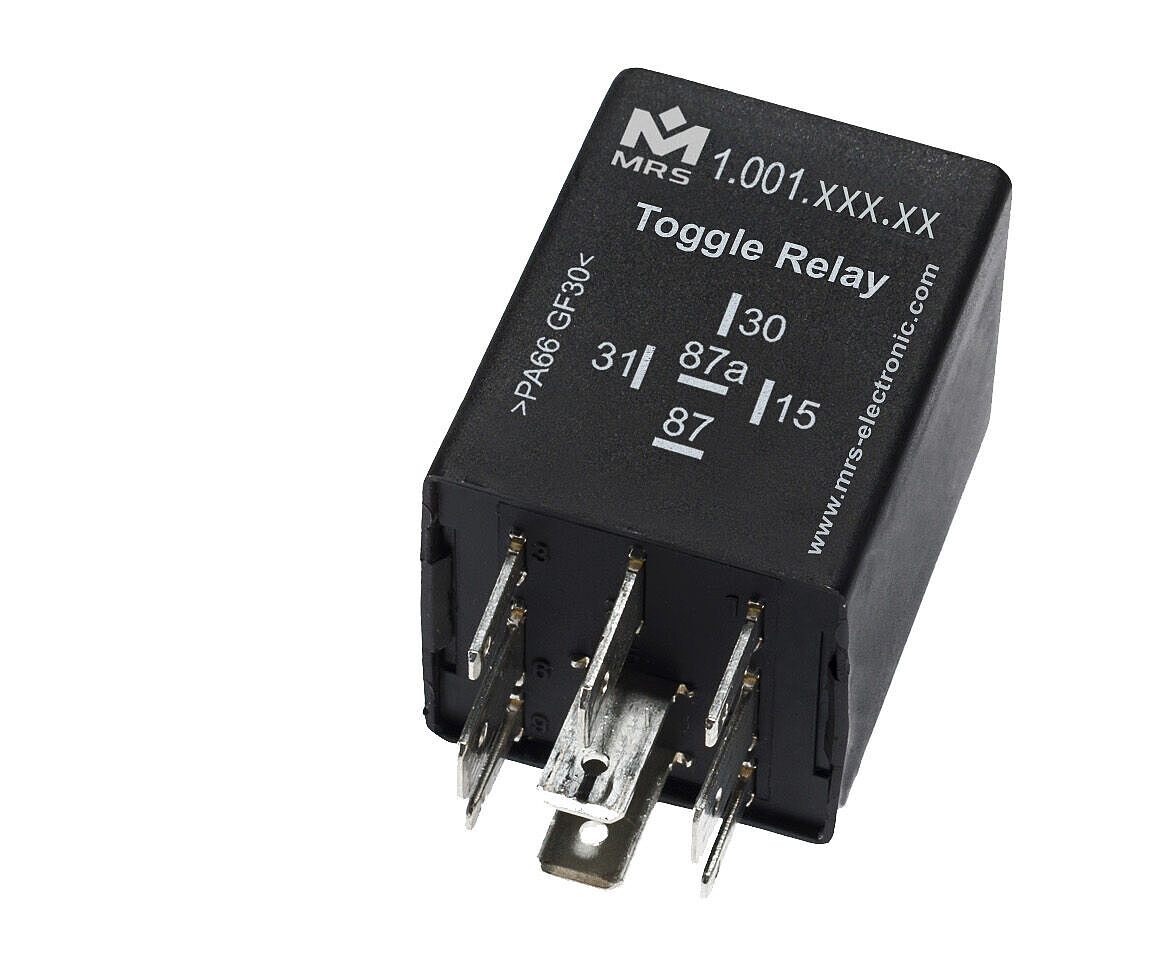

Toggle Relay M3 12 V

1.001.19x.00E ( choose order option )

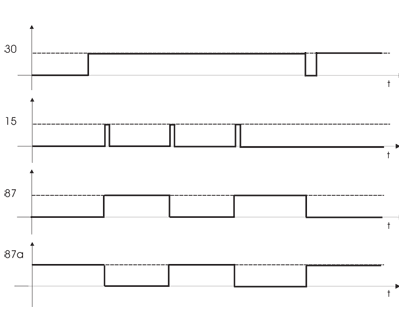

The Tog­gle Relay is used to switch loads on and off via push­but­ton op­er­a­tion. Circuit diagram S1: With the step switching relay a consumer can be switched via a button. If a positive/negative impulse is applied to Terminal 15, the relay switches and holds itself. Another impulse is switched on again (Power surge switch or toggle flip-flop). The terminal 15 is debounced. Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.

Name Value
Dimensions 30 × 30 × 40 mm
Housing material Plastic
Type-approval number 05 7282
Type-approval E1 - ECE R10
Number of pins 5
In-/Outputs (total) 1
Operating voltage 12 V
Name Value
Number of pins 5
In-/Outputs (total) 1
Outputs (total) 1
Relay outputs 1
Processor 8 bit
Temperature range -40 to 85  °C
Protection class IP53
Operating voltage 12 V
Max. output current (87, 87a) 30 A
Quiescent current (12V) 1 mA
Lifetime Mechanical: 10.000.000, Electrical: 100.000 by 15 A
Programming system MRS Realizer

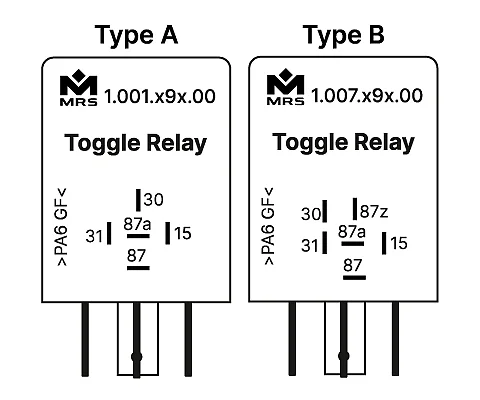

Name Type Model Connection diagram Order no.
Toggle Relay M3 12 V 30 A A positive edge triggered S1 1.​001.​191.​00E
Toggle Relay M3 12 V 30 A A negative edge triggered S1 1.​001.​192.​00E
Toggle Relay M3 12 V 30 A B positive edge triggered S2 1.​001.​193.​00E
Toggle Relay M3 12 V 30 A B negative edge triggered S2 1.​001.​194.​00E
Required accessories Article number
Software programming tool MRS Realizer 1.​100.​000.​01
Socket ST FL 9-pin 5 x 6.3 / 4 x 2.8 1.​017.​002.​00
Socket package watertight 40 mm
Tab receptacle for latching 2,8 mm 0,5 – 1,0 mm² 105292
Tab receptacle for latching 6,3 mm 1,0 mm² 102355
Tab receptacle for latching 6,3 mm 1,5 – 2,5 mm² 103064
